High Quality 48V Magnetic LED Track Rail System for Fabric Stretch Ceiling

Product Description

Product Parameters

Magnetic track lamp, as the name suggests, attaches the lamp component to the track through the magnetic way, in the case of ensuring reliable connection, more convenient and flexible installation and disassembly of the lamp component, convenient for daily maintenance and maintenance. Through magnetic technology, the lamp assembly can be adsorbed on the track. The lamp is easy to disassemble and assemble, and can be fixed with one insert. At the same time, because the track is low-voltage power supply, the lamp body can be removed from the drive, so the entire track and lamps can be made very small and delicate, very suitable for home use.

Magnetic Track Light Features

Simple Installation: Only need to lay the track in advance, the lamp suctions up and takes down, taking only a second to finish.
Versatile Lamp Matching: Can be equipped with different lamps suitable for many light source modules of magnetic lamps, including downlights, spotlights, grid lights, floodlights, chandelier lines, and more.
Flexible Quantity: The number of lamps can be freely increased or decreased, with no limit to the number of lamps installed on the track.
Free Adjustability: Can move freely and adjust the angle, with the light source moving freely according to the spatial needs of free lighting.
Low Voltage Safety: Low voltage design ensures safety with no contact risk.

Detailed Specifications

Product Component	Details & Functionality	Color / Finish	Input & Dimensions
Magnetic Track Lighting System	Main Lighting Track System	Black/White	Input DC48V
Power Head	Brown wire/Blue wire for Power, Yellow wire/Black wire for signal	Black	Input DC48V
I Type Power Connector	Rail and rail splicing use	Black	Input DC48V
Flexible Power Connector	Corner stitching use	Black	Input DC48V
Surface Mounted Type Corner	Surface mounting/suspend	Black	80*80mm
Recessed Ceiling Corner	Cut out 34mm	Black	100*100mm
Recessed Wall Corner	Cut out 34mm	Black	100*100mm
T Connector	Multi-way rail connection	Black	160*100mm
X Connector	Cross track connection	Black	160*160mm
PC Cover	R20/35 PC cover	Black	3M/PCS

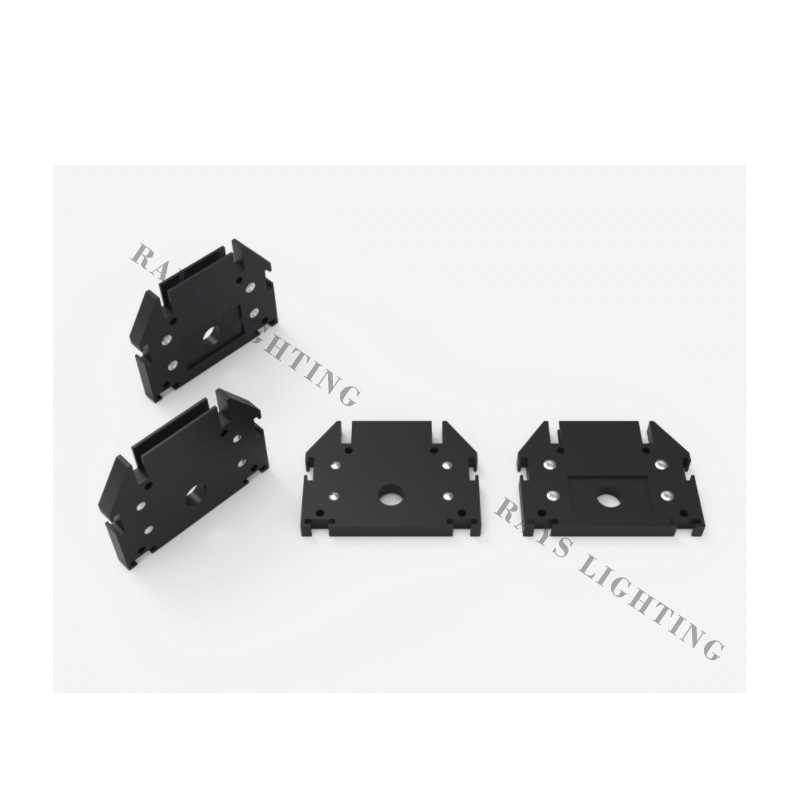

End Cup	Connecting Piece	MATTE BLK	/
Hanging Part	Suspension kit	/	2M
Transformer	System power supply	/	48V 150W/200W/350W
Recessed Type Driver	In-track driver unit	/	48V 100W/200W

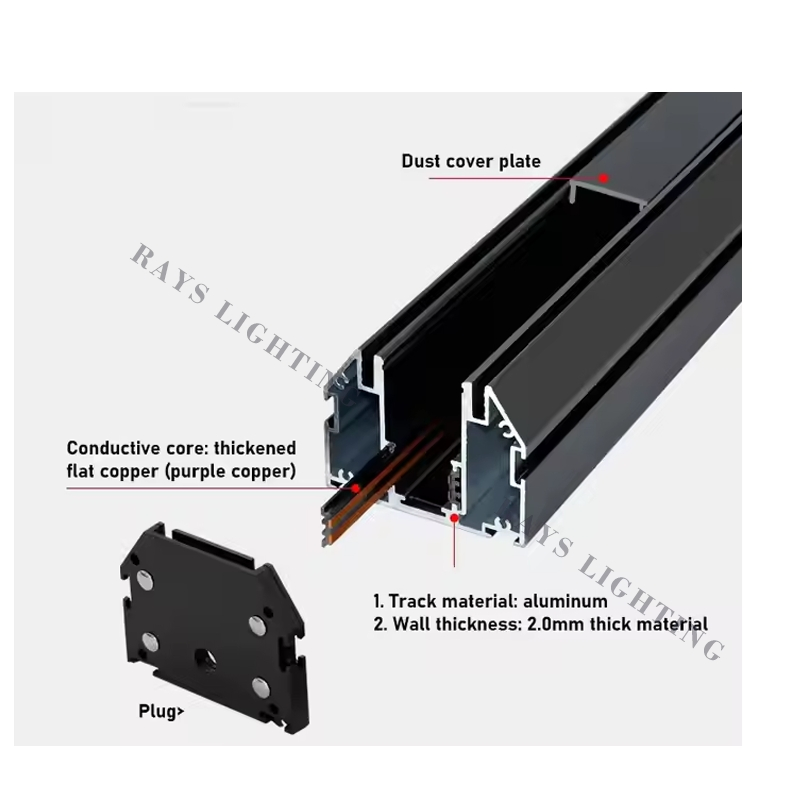

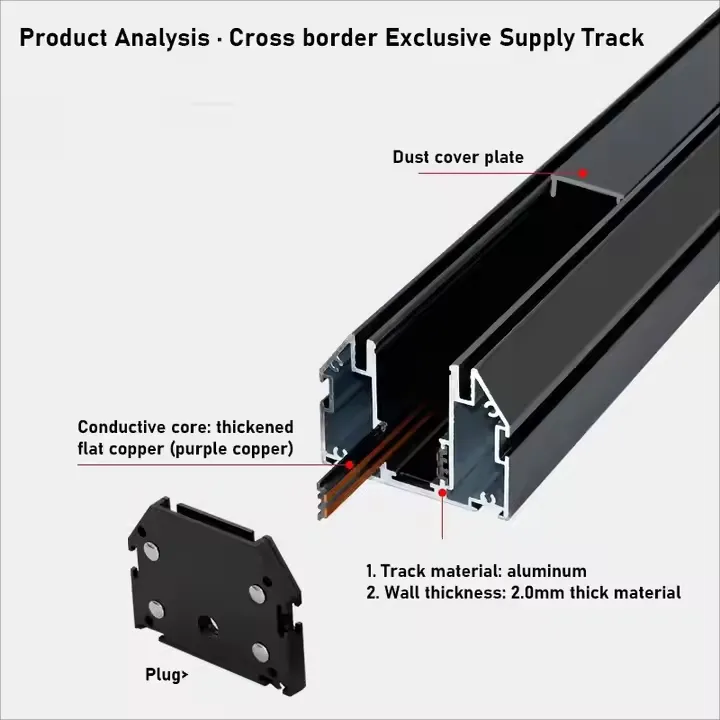

Surface Mounted Track Rail	Surface track installation	MATTE BLK	1M/1.5M/2M/3M

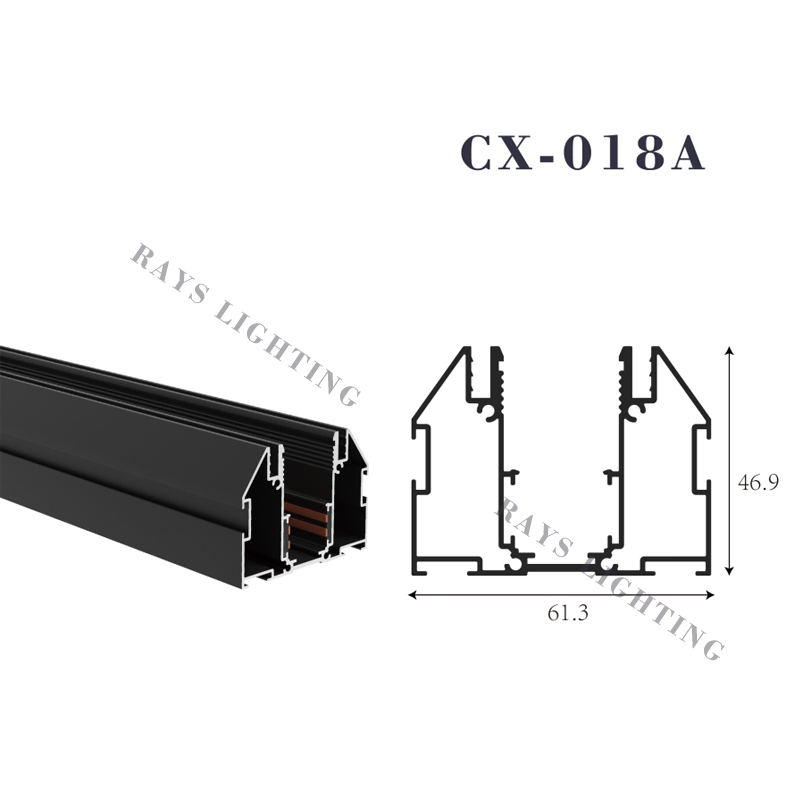

Recessed Track Rail	Cut out 38-40mm	MATTE BLK	1M/1.5M/2M/3M

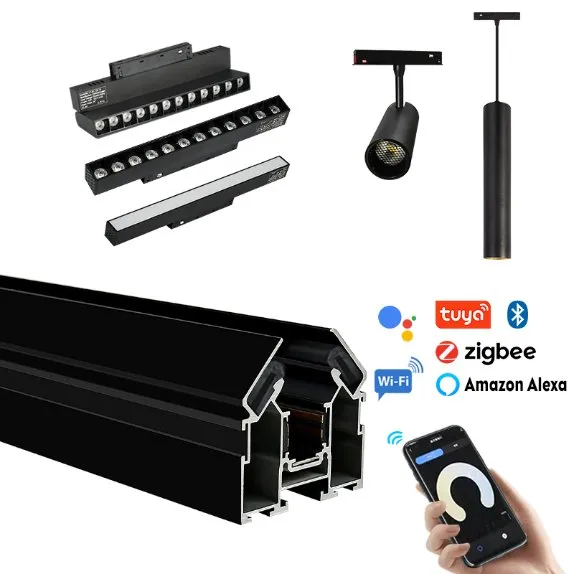

High Quality 48V Magnetic LED Track Rail System Details 1

High Quality 48V Magnetic LED Track Rail System Details 2

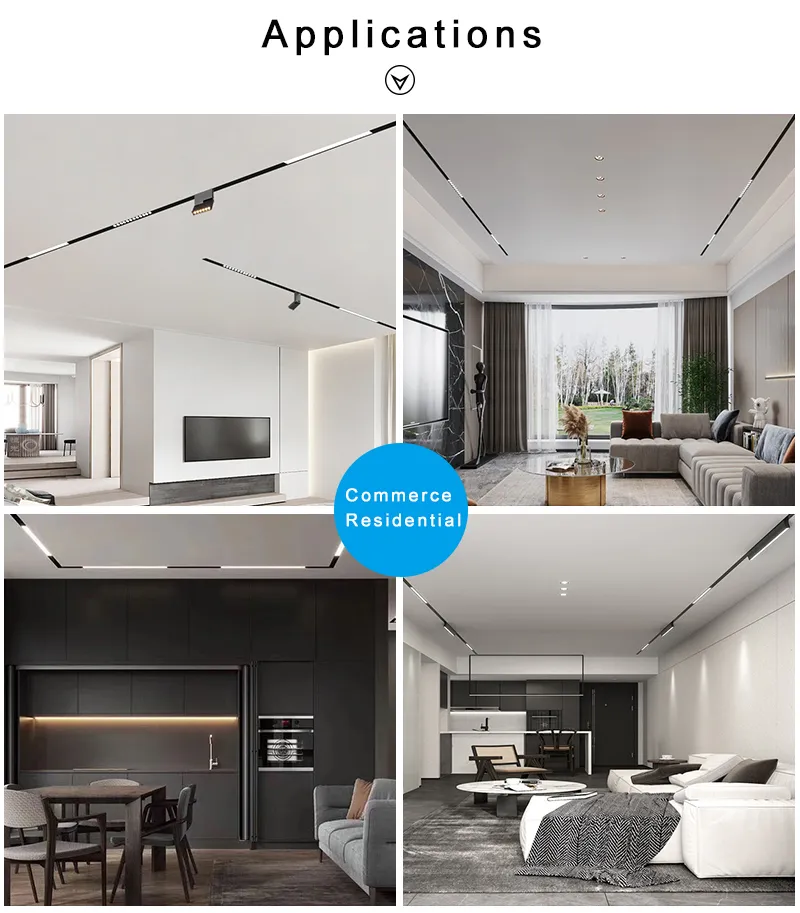

High Quality 48V Magnetic LED Track Rail System Details 3

High Quality 48V Magnetic LED Track Rail System Details 4

Delivery & Packaging

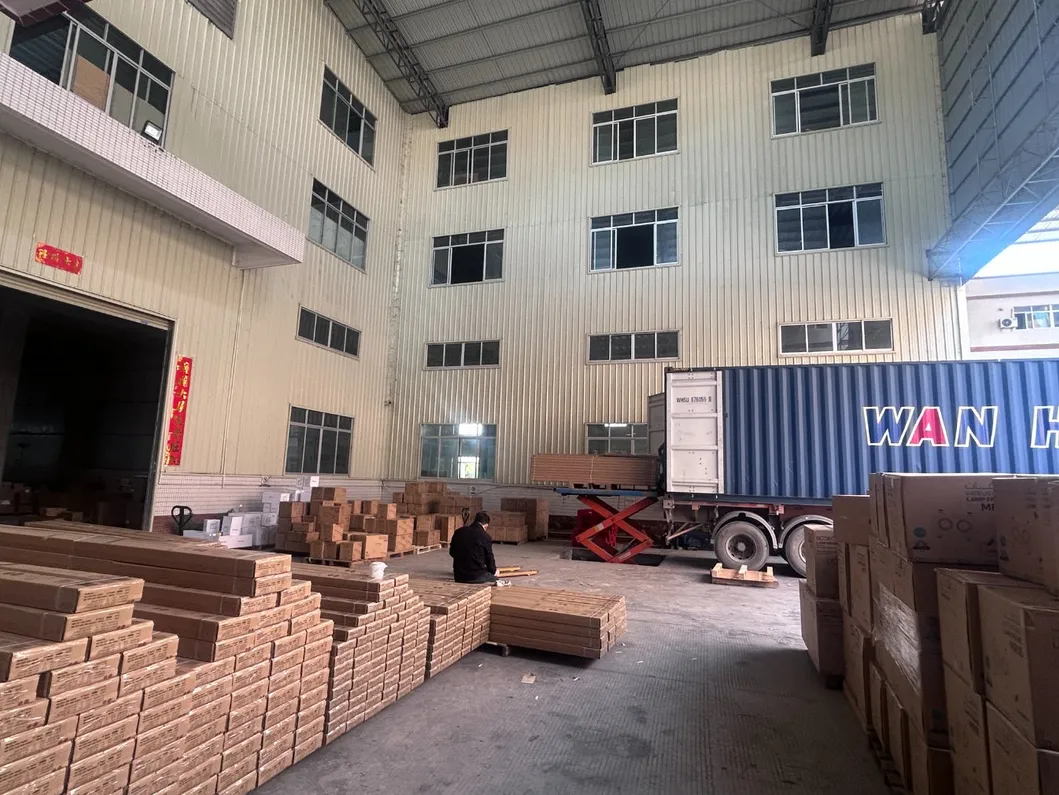

High Quality 48V Magnetic LED Track Rail System Delivery 1

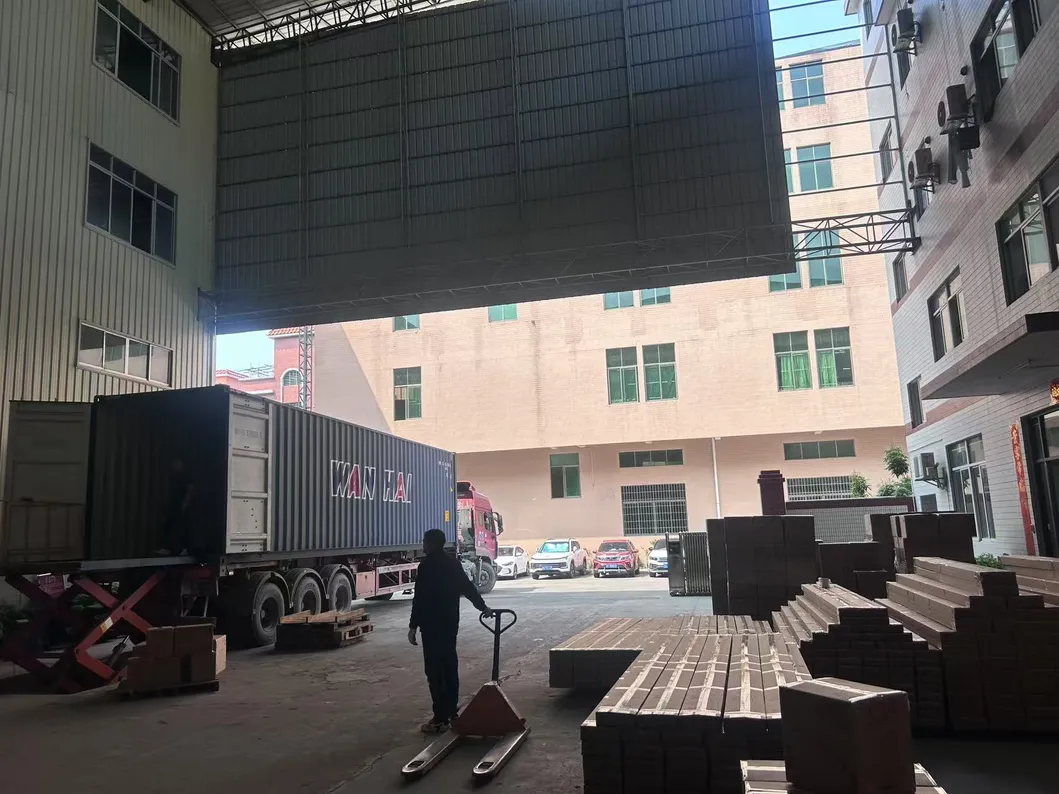

High Quality 48V Magnetic LED Track Rail System Delivery 2

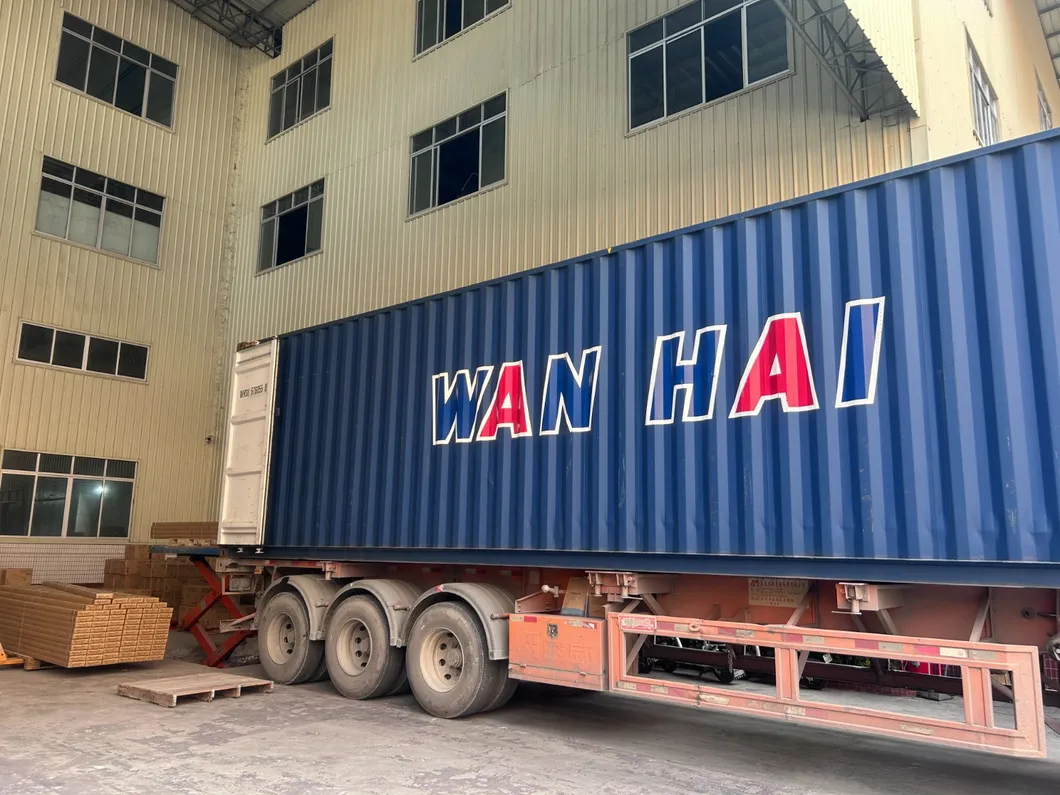

High Quality 48V Magnetic LED Track Rail System Delivery 3

High Quality 48V Magnetic LED Track Rail System Plan 1

High Quality 48V Magnetic LED Track Rail System Plan 2

High Quality 48V Magnetic LED Track Rail System Plan 3

Frequently Asked Questions

What are the benefits of using a 48V low voltage system?

The 48V low voltage power supply ensures high safety during operation and eliminates any risk of electrical shock. It allows the track and lamps to be designed in compact, delicate forms ideal for home and commercial interiors.

Can I combine different types of lights on the same magnetic track?

Yes. The magnetic track system is highly versatile and supports various lighting modules, including downlights, spotlights, grid lights, floodlights, and pendant line lights.

Is it difficult to install or move the magnetic lamps?

Not at all. Installation is simple and only requires pre-installing the track. Once powered, you can attach, adjust, or remove the magnetic light fixtures within seconds without using complex tools.

How many light modules can be installed on one track?

There is no strict limit to the number of lamps on a single track. However, the total wattage of the installed fixtures must not exceed the capacity of the connected 48V transformer (e.g., 150W, 200W, or 350W).

Are there different layout configurations available?

Yes. Using components like L-corners, T-connectors, and X-connectors, you can configure recessed, surface-mounted, or suspended track systems to suit any ceiling shape or layout requirement.
