48V Magnetic Track Fabric Stretch Ceiling

Overview

Basic Info.

Model NO. Magnetic track

Power 48W

Emitting Color White / Black

Base Type Track Bar

Wire 4 Wired

IP Rating IP26

Certification CCC, CE, REACH, RoHS

Input Voltage 48V

LED Chips Brand Osram

Length 1m/2m/3m

Warranty 3 Years

Color White / Black

Light Source LED

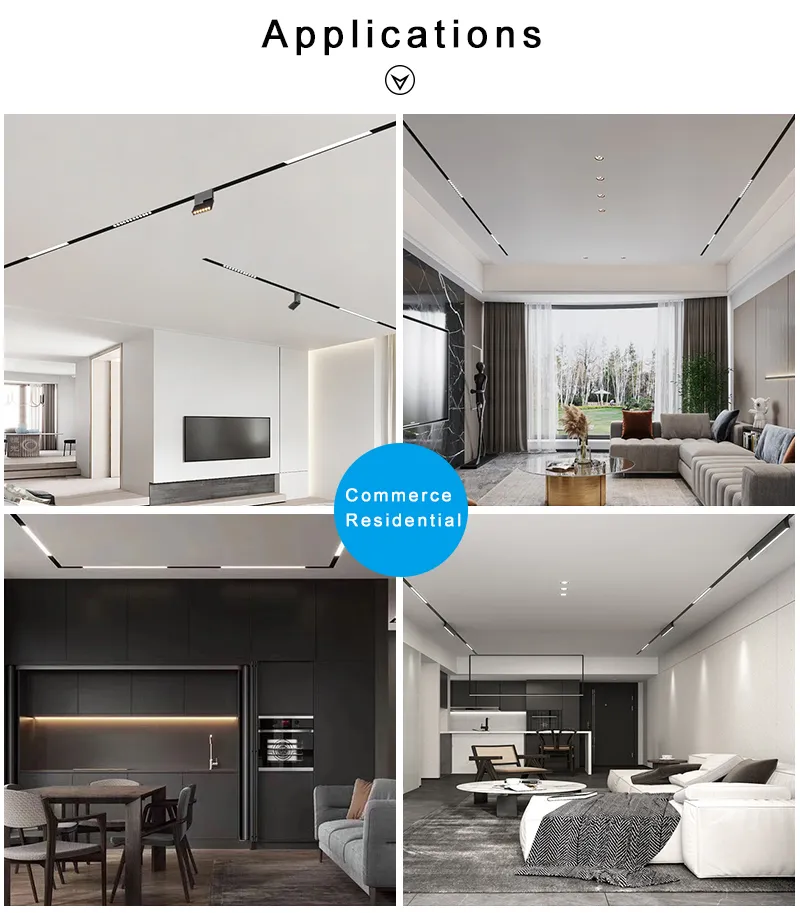

Application Shop, Office, Residential, Indoor

Working Lifetime 300,000 Hours

Transport Package Color Box

Specification Magnetic Track Light KITS

Production Capacity 500,000 PCS/Month

Packaging & Delivery

Package Size 302.00cm * 40.00cm * 55.00cm

Package Gross Weight 2.000kg

Lead Time 5 days (1 - 999 Pieces)
To be negotiated (> 999 Pieces)

Product Description

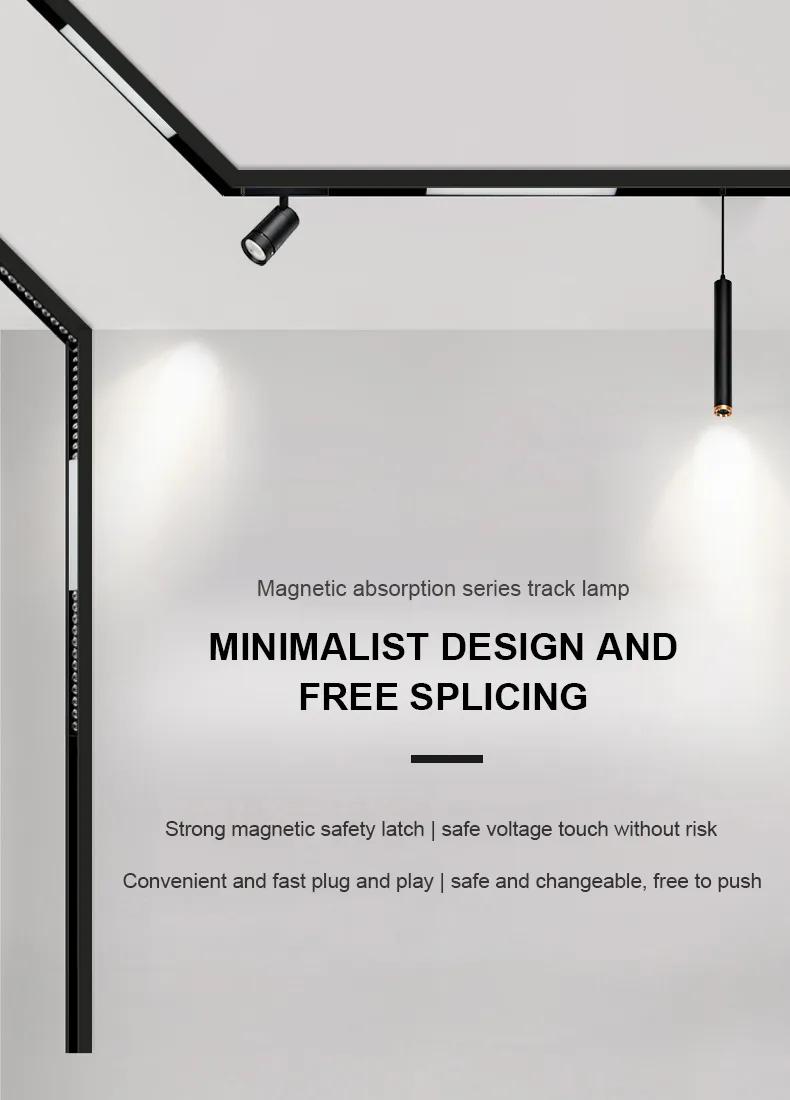

Magnetic track lamp, as the name suggests, attaches the lamp component to the track through the magnetic way. In the case of ensuring reliable connection, it provides more convenient and flexible installation and disassembly of the lamp component, convenient for daily maintenance and care. Through magnetic technology, the lamp assembly can be adsorbed on the track. The lamp is easy to disassemble and assemble, and can be fixed with one insert. At the same time, because the track is low-voltage power supply, the lamp body can be removed from the drive, so the entire track and lamps can be made very small and delicate, very suitable for home use.

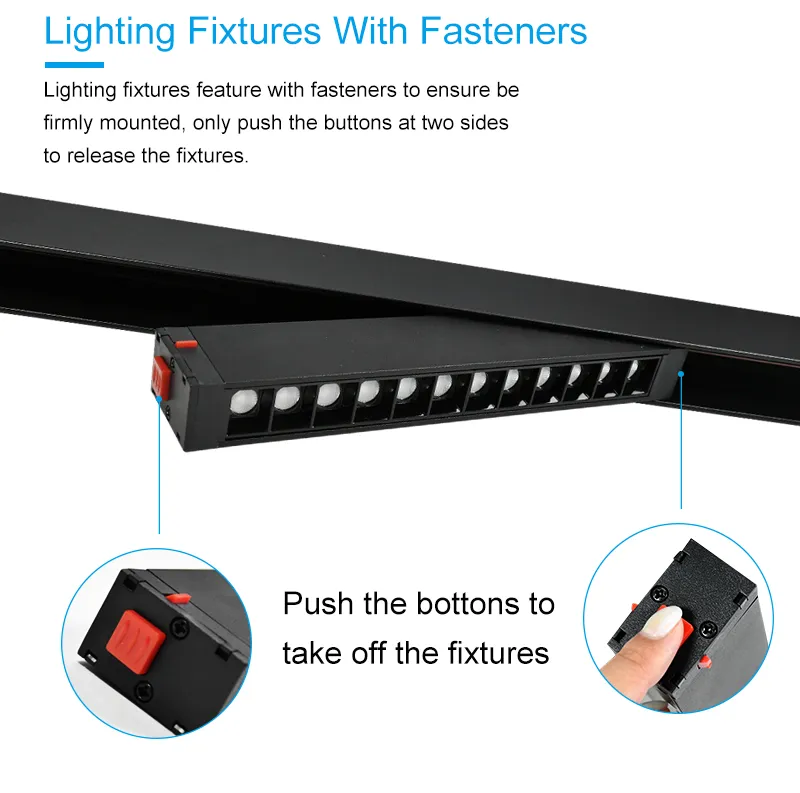

Installation is simple: only need to lay the track in advance, the lamp suctions up and takes down, a second to finish.
Can be equipped with different lamps: suitable for many light source modules of magnetic lamps, including downlights, spotlights, grid lights, floodlights, chandelier lines and so on.
The number of lamps can be freely increased or decreased, and there is no limit to the number of lamps installed on the track.

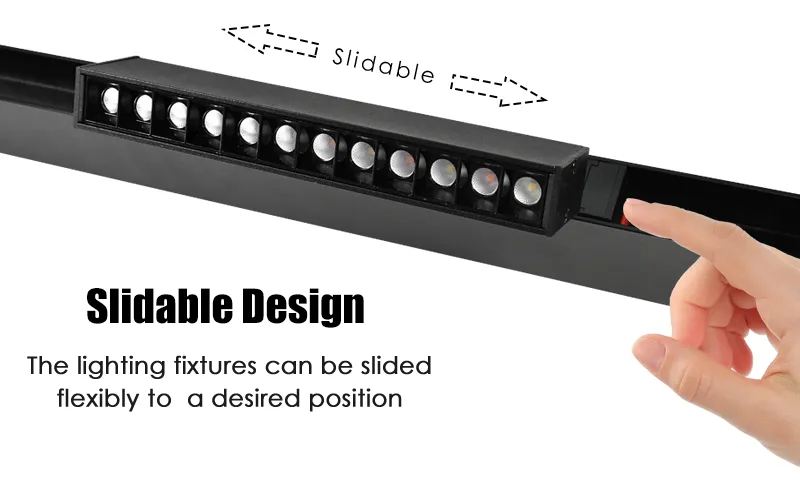

Can move freely, freely adjust the angle: the light source can move freely, according to the space needs of the free lighting.
Low voltage safety: no contact risk.

Detailed Photos

Product Name	Details / Description	Colour	Input / Dimensions
Magnetic Track Lighting System	Main system overview	black/white	Input DC48V
Power head	Brown wire/Blue wire for Power, Yellow wire/Black wire for signal	Black	Input DC48V
I Type Power Connector	Rail and rail splicing use	Black	Input DC48V
Flexiable Power Connector	Corner stitching use	Black	Input DC48V

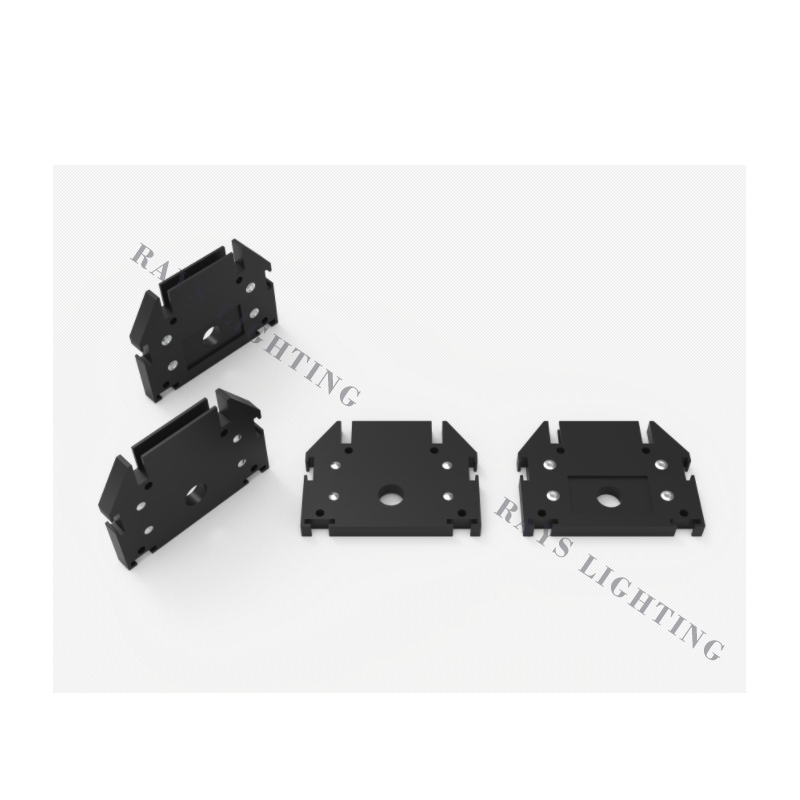

Surface Mounted Type Corner	Surface mounting/suspend	Black	80*80mm
Recessed Ceiling Corner	cut out 34mm	Black	100*100mm
Recessed Wall Corner	cut out 34mm	Black	100*100mm
T Connector	T-shaped junction use	Black	160*100mm
X Connector	Cross-shaped junction use	Black	160*160mm
PC Cover	R20/35 PC cover	Black	3M/PCS
End Cup	Connecting Piece	MATTE BLK	/
Hanging Part	Suspended mounting part	/	2M
Transformer	Power Conversion Supply	48V 150W/200W/350W
RECESSED TYPE DRIVER	Built-in driving power source	48V 100W/200W

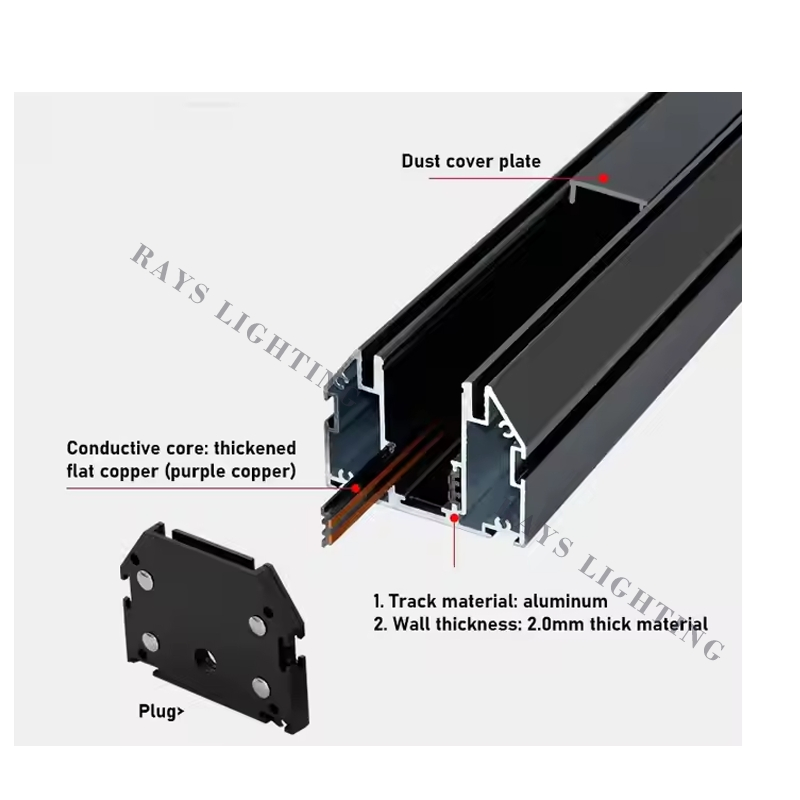

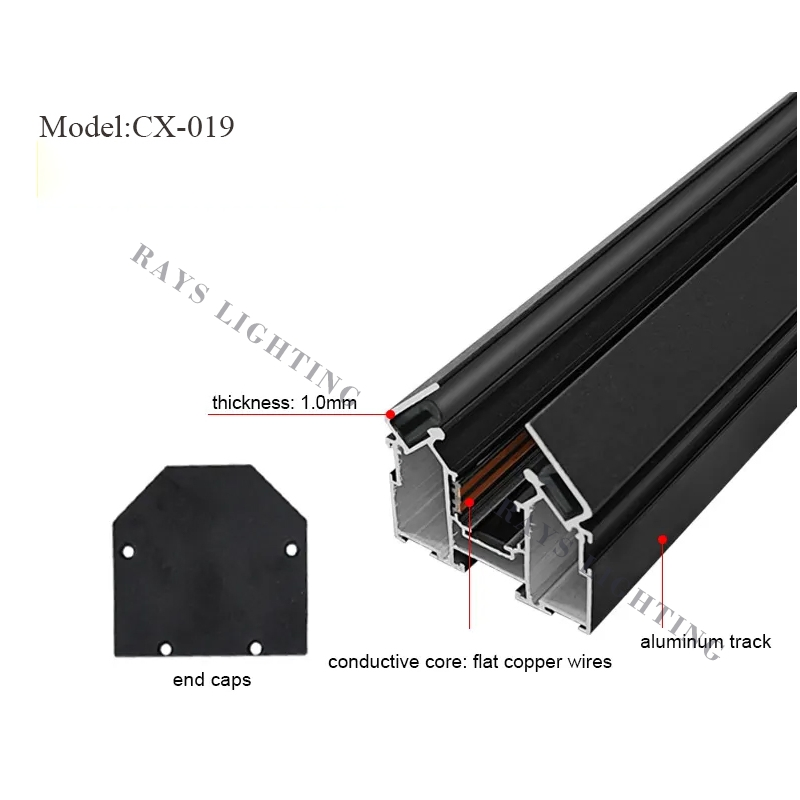

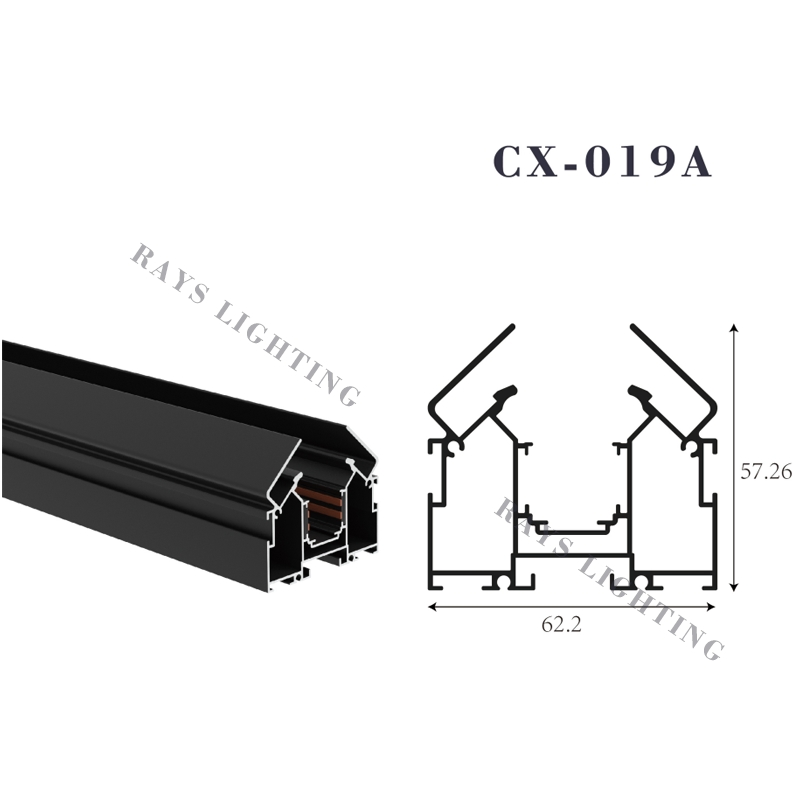

Surface Mounted Track Rail	Surface track installations	MATTE BLK	1M/1.5M/2M/3M
Recessed Track Rail	cut out 38-40mm	MATTE BLK	1M/1.5M/2M/3M

48V Magnetic Track Fabric Stretch Ceiling

Frequently Asked Questions

Q1: What are the main benefits of a magnetic track lighting system?

A1: Magnetic track systems offer simple installation where light modules attach magnetically in seconds. It allows you to freely add, remove, and adjust individual lights along the track safely, accommodating various layout needs.

Q2: Is the magnetic track light system safe to handle?

A2: Yes, the track operates on a safe low-voltage DC 48V power supply. This ensures there is no risk of electrical contact or shock during adjustment, installation, or disassembly.

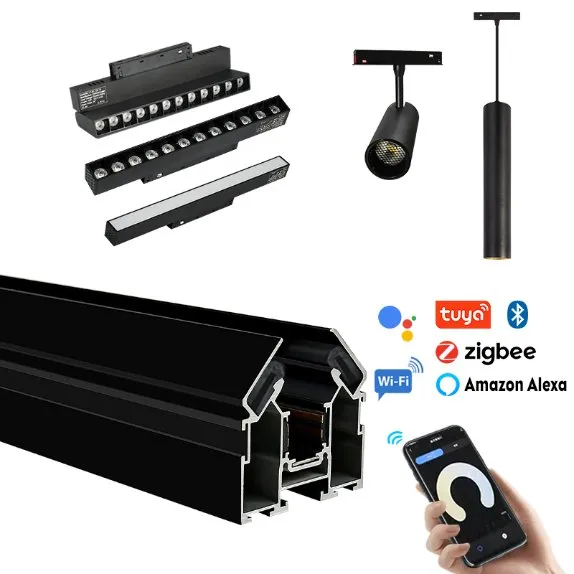

Q3: Which types of lights can be used with this magnetic system?

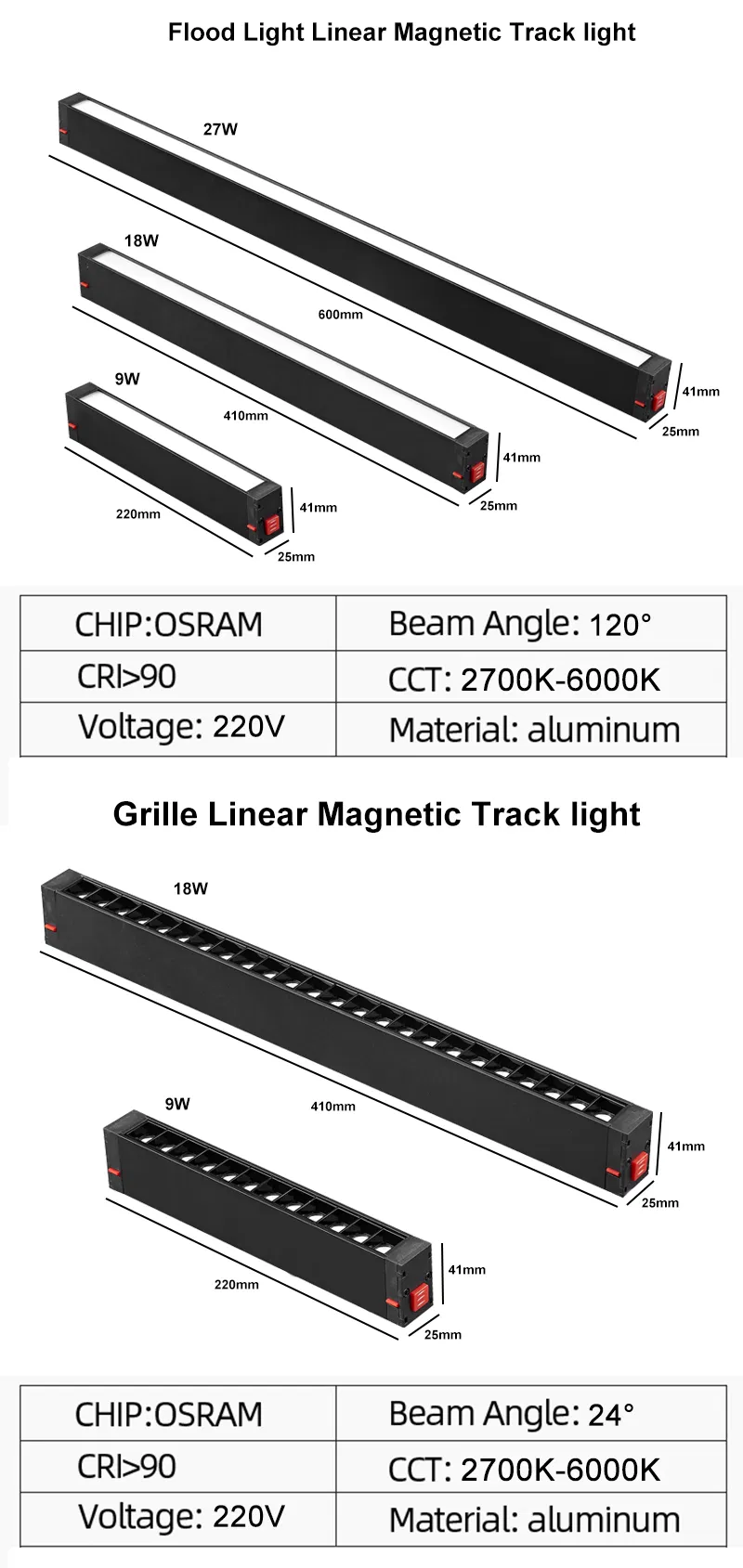

A3: The track supports multiple compatible light source modules, including downlights, spotlights, grid lights, floodlights, and chandelier line lights.

Q4: What is the lifespan and warranty of this system?

A4: The track system is built with high-quality Osram LED chips, offering a long-lasting working lifetime of up to 300,000 hours, and comes with a 3-year warranty.

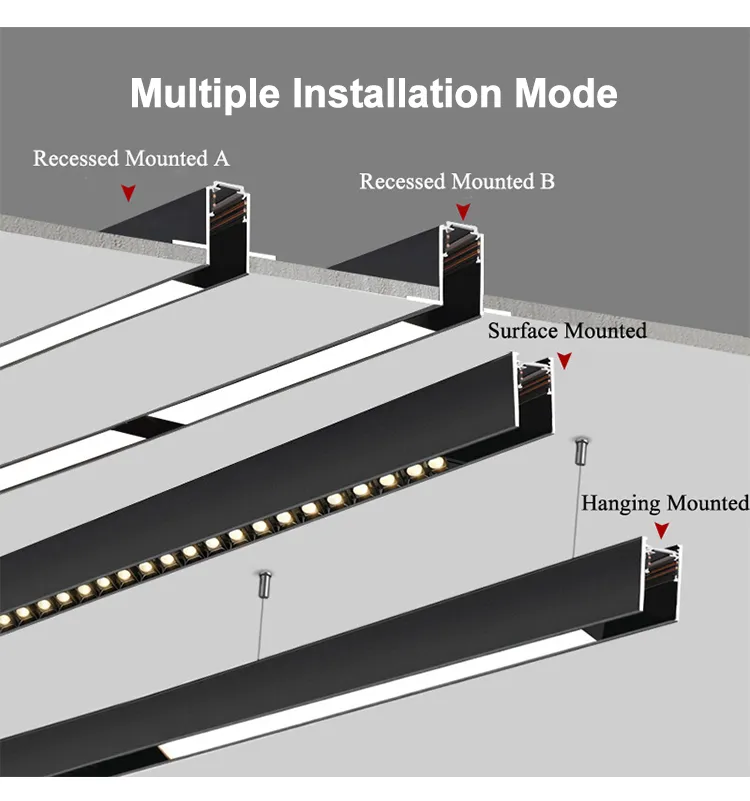

Q5: What track configurations and installation types are available?

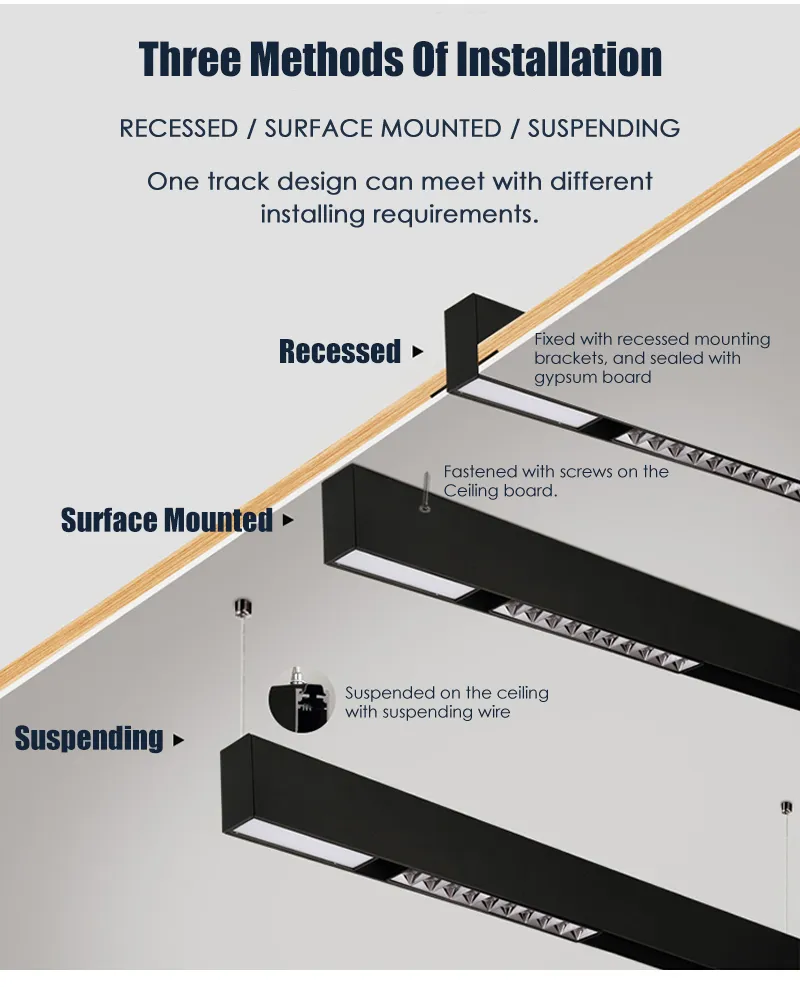

A5: We offer both Surface Mounted Track Rails and Recessed Track Rails (cut out 38-40mm) in lengths of 1M, 1.5M, 2M, and 3M. A variety of power, I-type, corner, T, and X connectors are also available to support different layout structures.

Q6: How is the system powered, and what drivers are available?

A6: The system requires a transformer to convert input power to DC 48V. Options include 150W, 200W, and 350W external transformers, or 100W and 200W recessed-type drivers.
