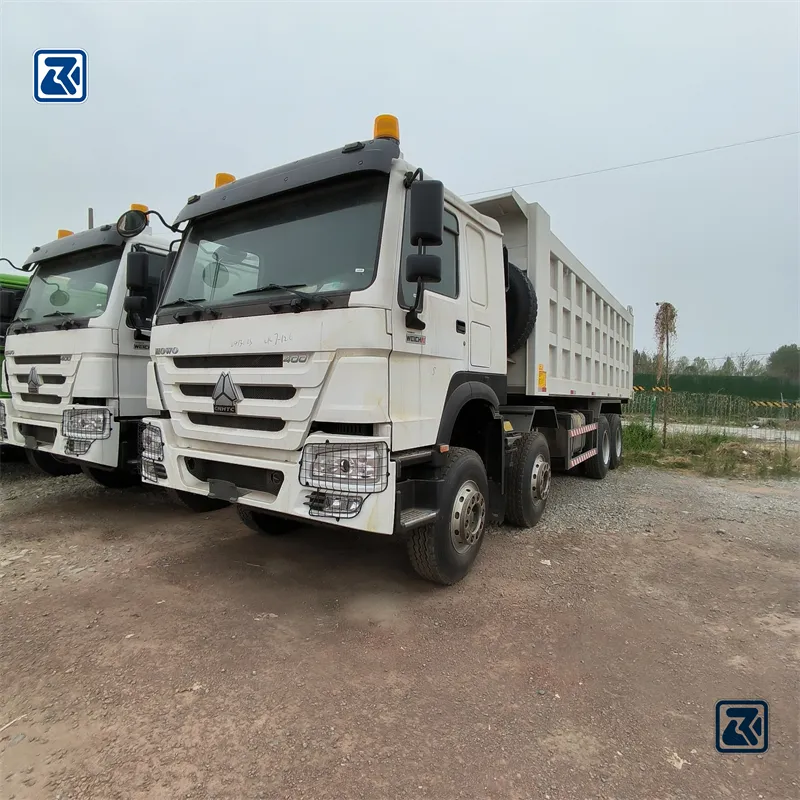

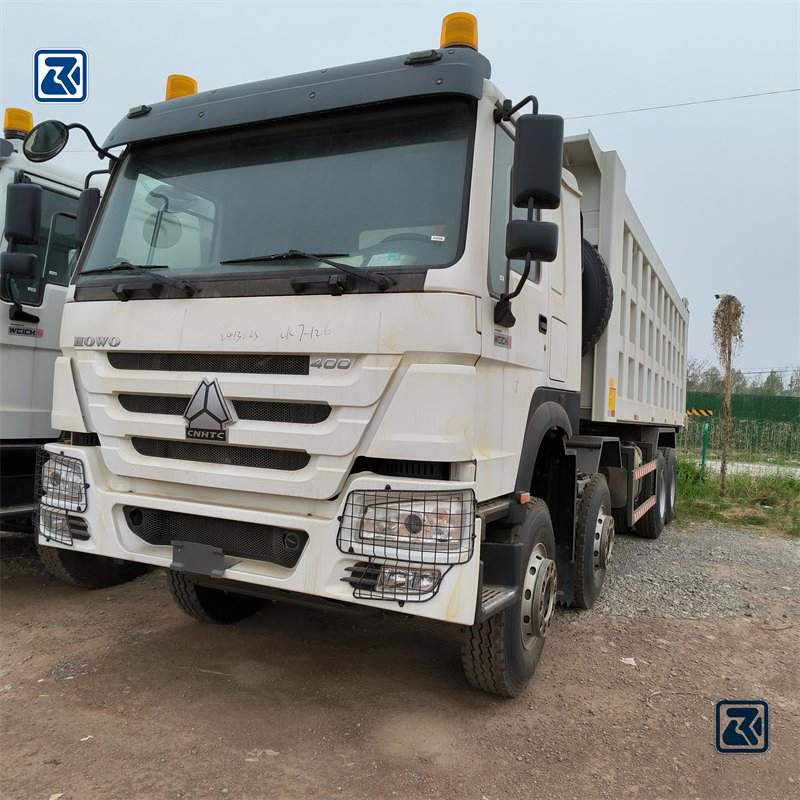

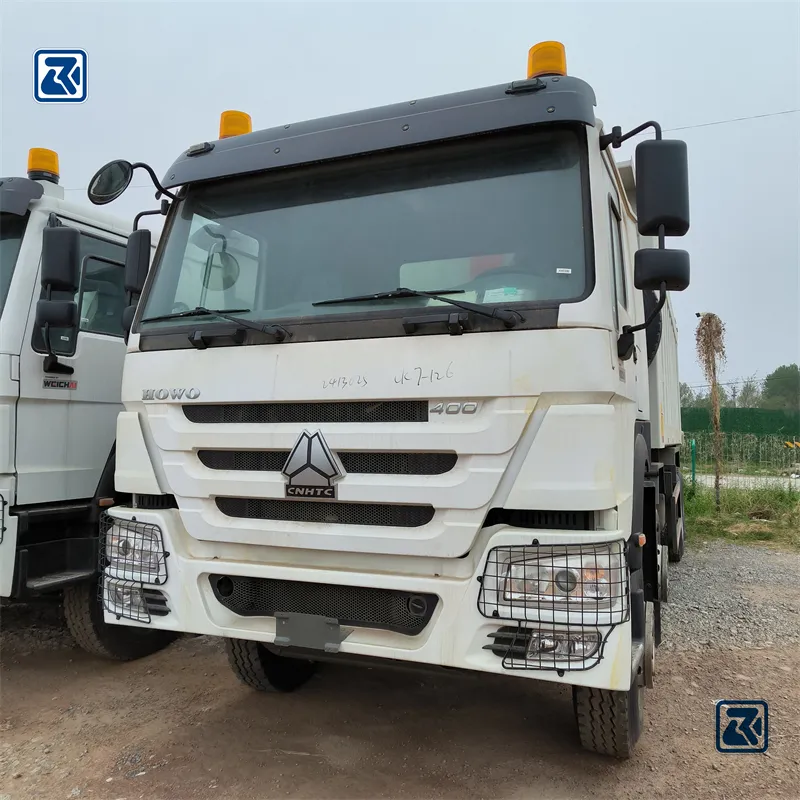

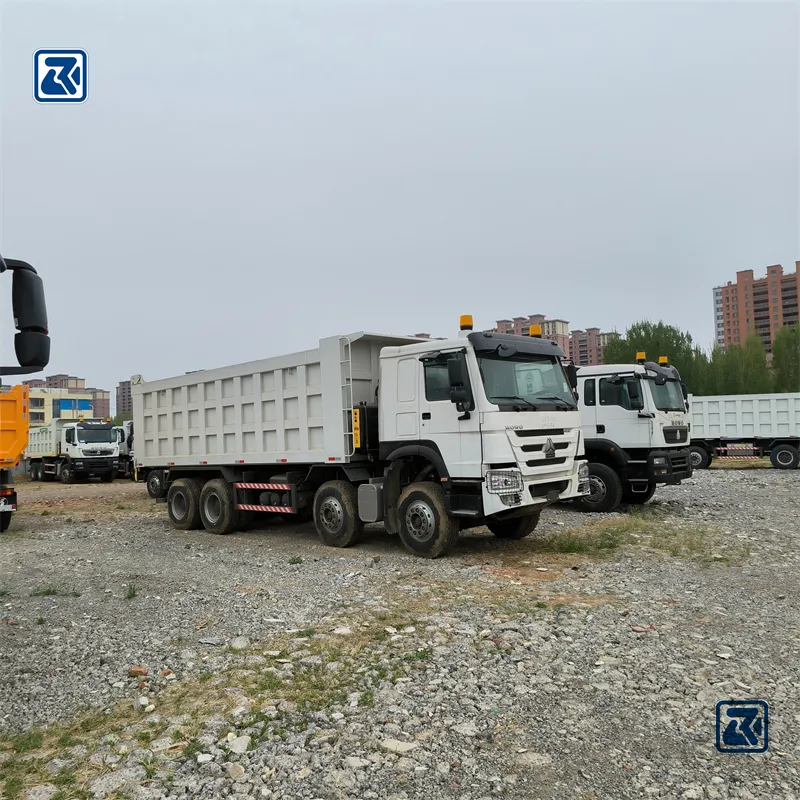

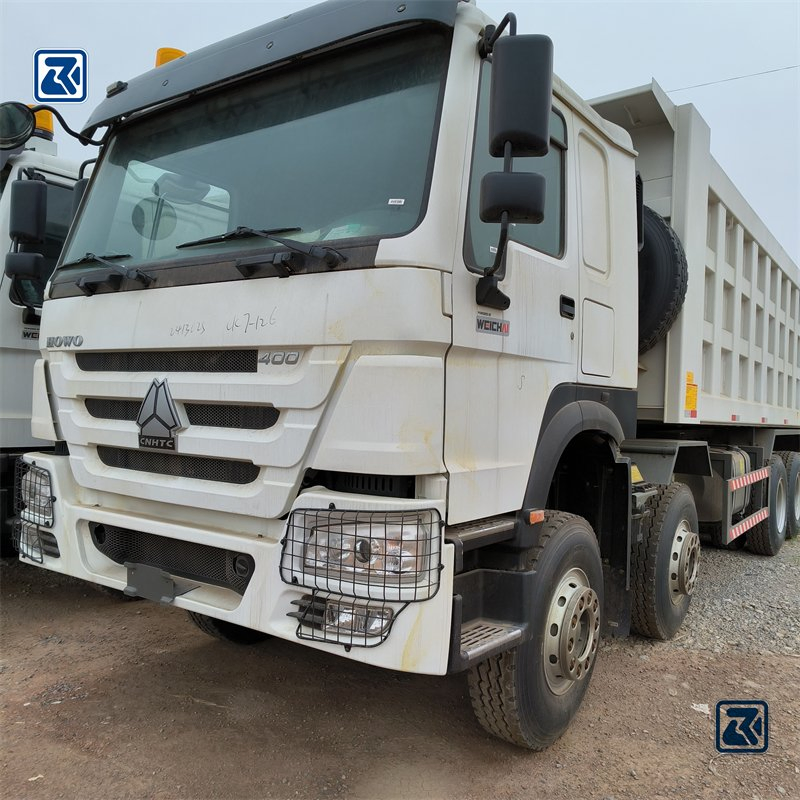

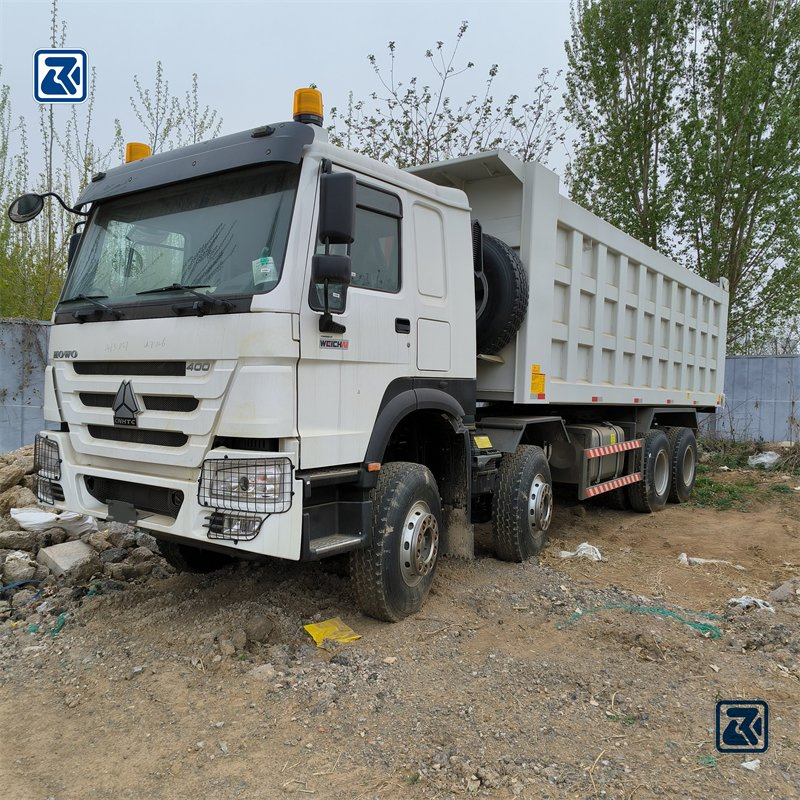

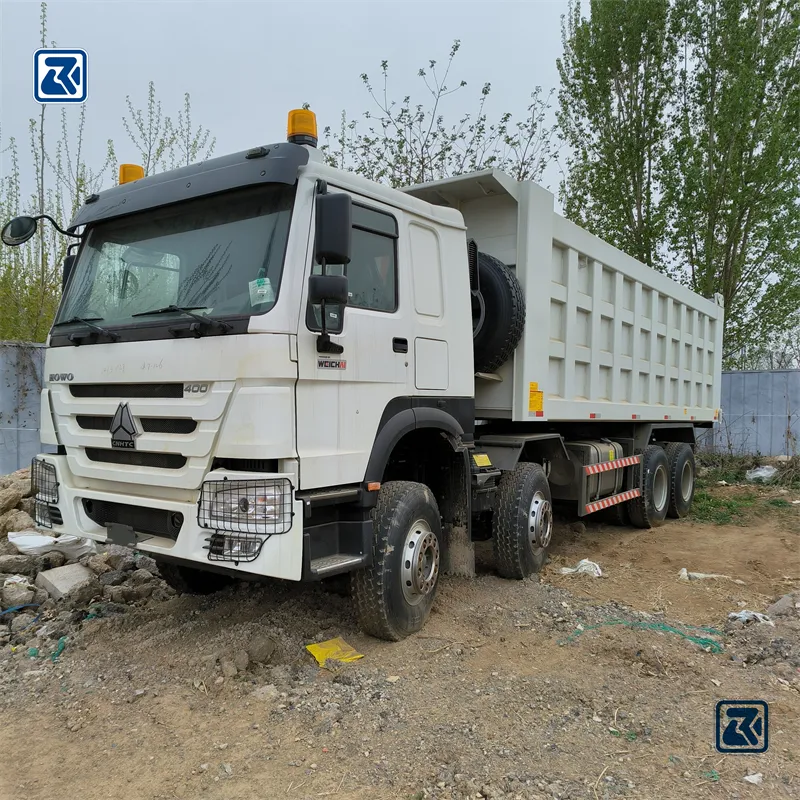

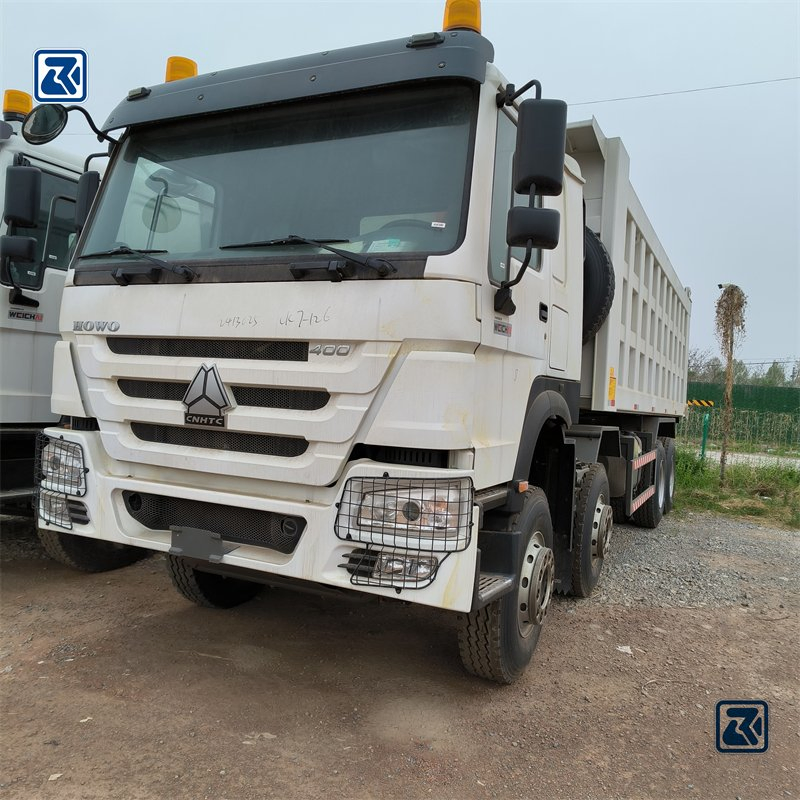

The HOWO A7 series from SINOTRUK offers you great value for your money. It comes without all the fancy items that only look impressive on the specification sheet, but aren't really needed in your daily operation. What you get is thought through and proven quality components that make these 6 x 4 dump truck reliable and easy to drive. Developed with the driver's comfort and safety in mind, you get exactly what you need: just a great truck. Simple and reliable.
Improved aerodynamics: better fuel economy, which again improves your bottom line. Easy access for maintenance.
Ergonomically designed driver's seat: easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.
Air-suspended driver and passenger seats: relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.
| Model | ZZ3317N2867N1 | ZZ3317N3067N1 | ZZ3317N3267N1 | ZZ3317N4067N1 | |
|---|---|---|---|---|---|
| Engine | Euro2 | 336/371 | 336/371 | 336/371 | 336/371 |
| (Euro3) | (340/380) | (340/380) | (340/380) | (340/380) | |
| Cab | A7-W Lengthen cab | A7-W Lengthen cab | A7-W Lengthen cab | A7-W Lengthen cab | |
| Transmission | HW15710 | HW15710 | HW15710 | HW15710 | |
| HW19710 | HW19710 | HW19710 | HW19710 | ||
| Front axle | HF9 Disc | HF9 Disc | HF9 Disc | HF9 Disc | |
| Rear axle | AC16 | AC16 | AC16 | AC16 | |
| Steering | ZF8098 | ZF8098 | ZF8098 | ZF8098 | |
| Tyres | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 | |
| Dump box dimensions(mm) | 6200x2300x1500 | 6500x2300x1500 | 6800x2300x1500 | 7600x2300x1500 | |
| Cubage (m3) | 21.39 | 22.42 | 23.46 | 26.22 | |
| Steel thickness(mm) | Floor:8/Side:6 | Floor:8/Side:6 | Floor:8/Side:6 | Floor:8/Side:6 | |
| Hydraulic Lift | Front Lift | Front Lift | Front Lift | Front Lift | |
| Additional Specifications | ||
|---|---|---|
| Cabin | Driving type 8x4 LHD/RHD | |
| A7-B Low-floor standard cab,no bunk,safety belts, MP5,air conditioner,Central door lock, electric window lifter,Electric mirrors(with heating) | ||
| Wheel Base | 4600+1350+1350 mm | |
| GVW | 31000kg | |
| Front axle loading capacity | 2 x 9000 | |
| Rear axles loading capacity | 2 x 16000 | |
| Engine | Brand | Sinotruk |
| Model | WD12.46 | |
| Type | 6-cylinder in line,4-stroke,water-cooled,supercharging intermediate cooler,high pressure common rail | |
| Displacement | 11.596L | |
| Bore x Stroke | 126x155mm | |
| Horse Power (HP) | 460 | |
| Emission standard | Euro III | |
| Max Speed | 75 km/h | |
| Tire | 12.00-20, 12.00R20 | |
| Carriage |
The carriage can be heightening Steel thickness of Carriage floor optional 8,10,12,14,16mm Steel thickness of Carriage side optional 4,6,8,10,12,14mm Ordinary steel,optional Manganese plate-Mn16,high strength steel |
|
| Carriage lifting mode |
4800-5600mm middle lift F type and strengthening T type. 5600-5800mm front lift CHINA system and HYVA system |
|
| Transmission | HW15710 or HW19710 transmission,10 forward and 2 reverse | |
| Steering | ZF8098 | |
| Oil Tank | 300L | |
| Brake System | Service brake:dual circuit compressed air brake | |
| Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | ||
| Auxiliary brake:engine exhaust valve brake | ||
| Electrics | Operating voltage:24V,negative grounded | |
| Batteries:2x12 V,165 Ah | ||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Option | ABS;Automatic Break Clearance Adjusting Arm;Traveling Data Recorder;Metal Pipeline; Engine Protective Board;Guard grating for engine oil bottom case;all-metal front protection frame | |
Here is the working video: http://sinotruckexport.en.made-in-china.com/custom/HOWO-sprinkler-truck-sxYJyliKqnUt.html

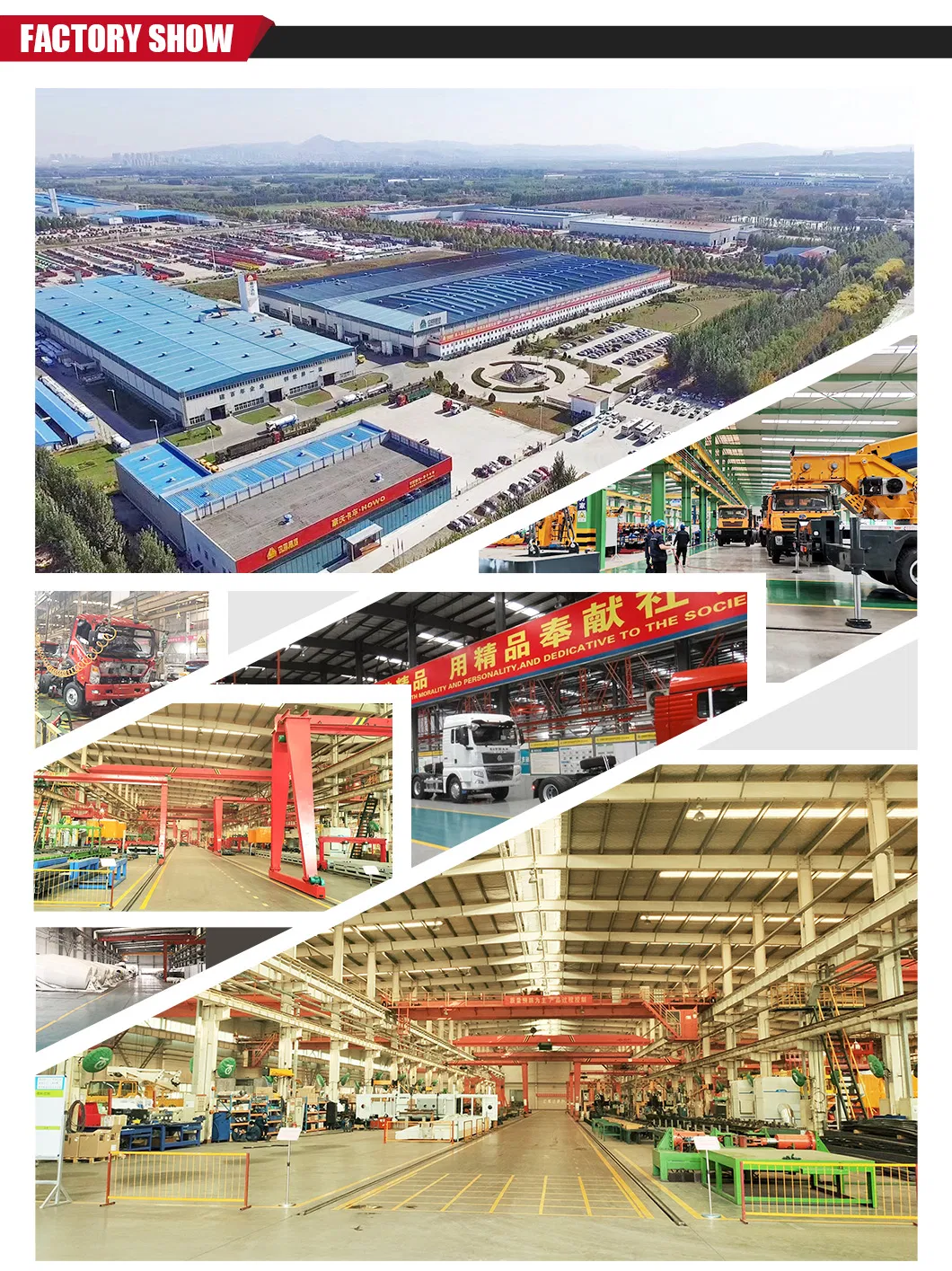

Your are always welcome to visit the factory at any time!
Packing: Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO, SKD or CKD in container.
