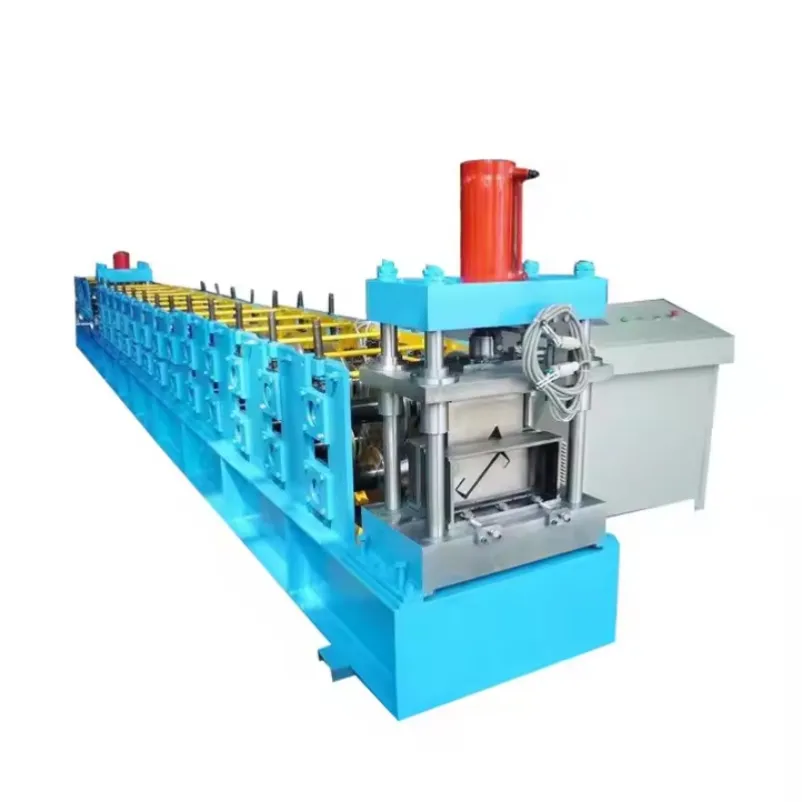

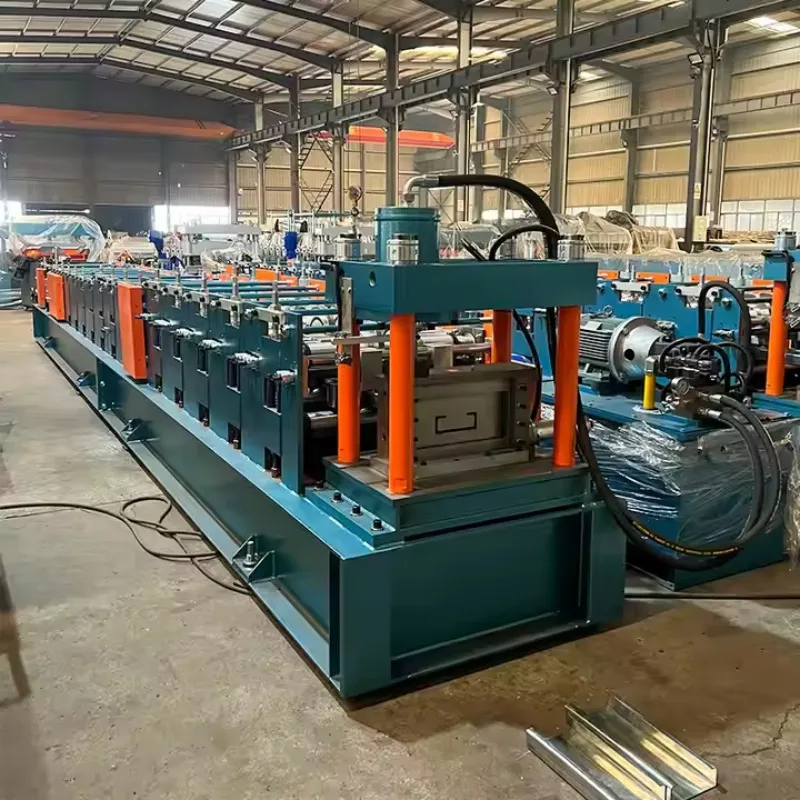

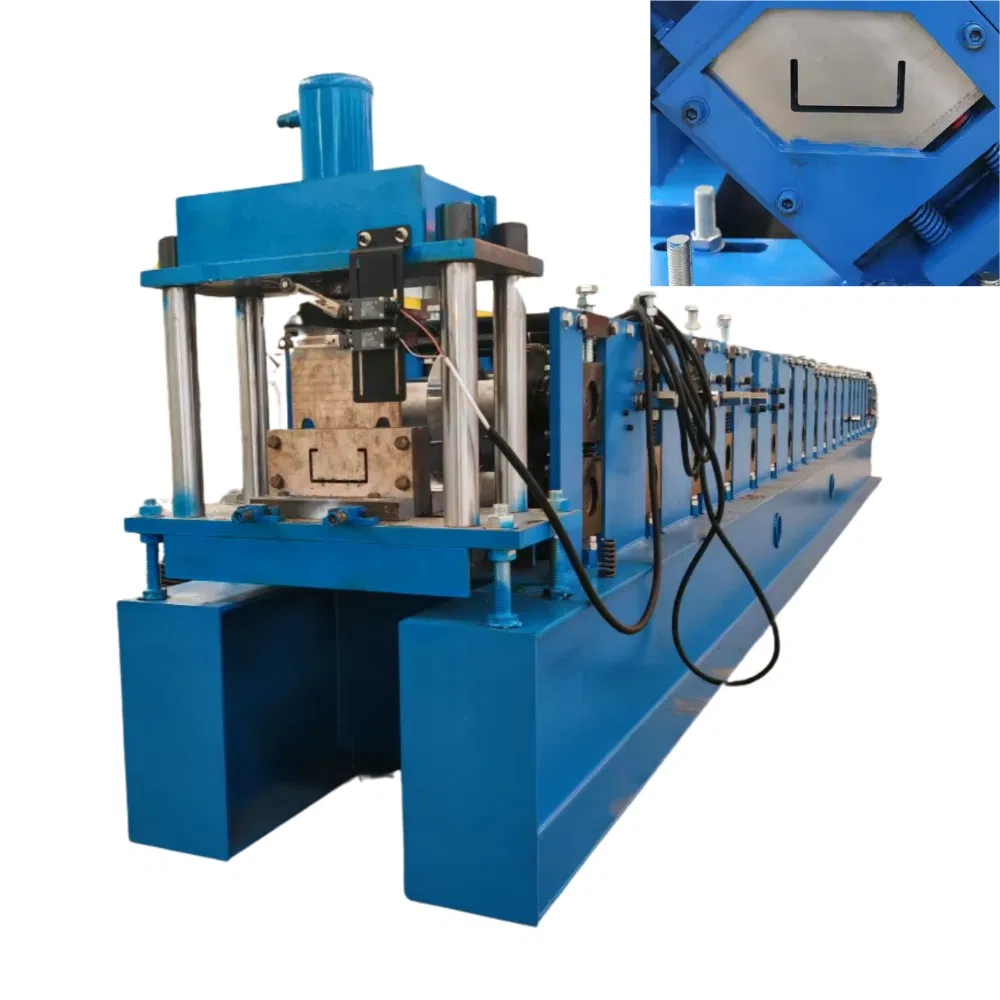

Fully Automatic U Profile Light Keel Roll Forming Machine Truss Stud Track Roll Forming Machines Steel C Channel Machine
Light gauge roll forming machine, the light steel keel is made of high-quality continuous hot-dip galvanized sheet and strip as raw materials, and is rolled into a metal frame for construction through a cold bending process. It is suitable for the decoration of the roof of various buildings, the inner and outer walls of the building and the scaffold. The base material of the suspended ceiling. The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped W-shaped keels according to the cross-sectional form.

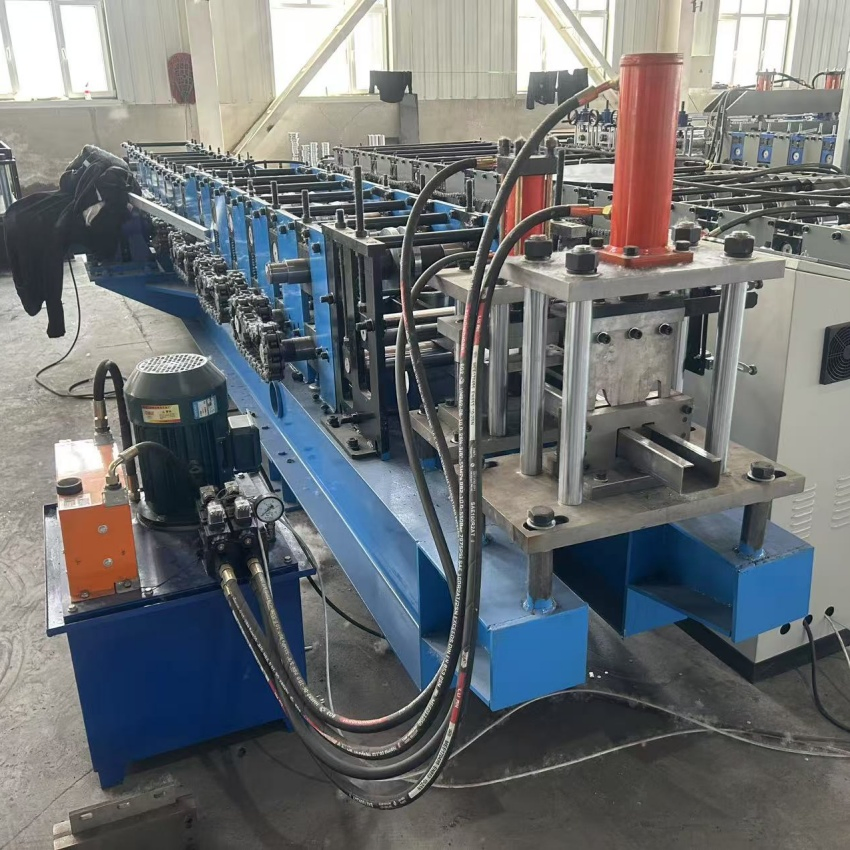

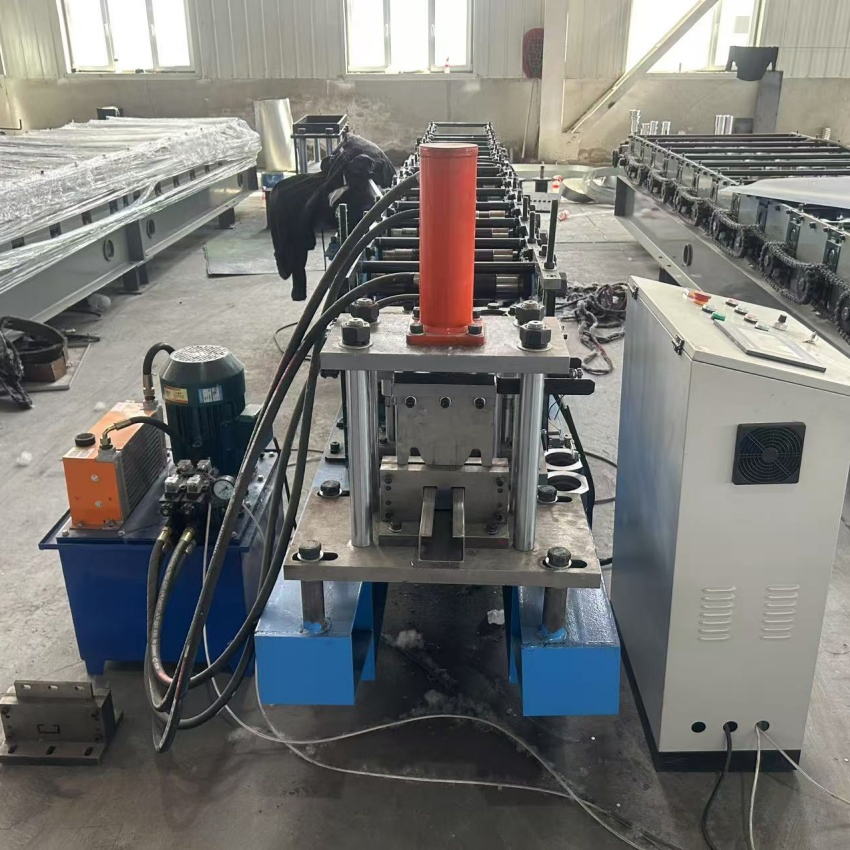

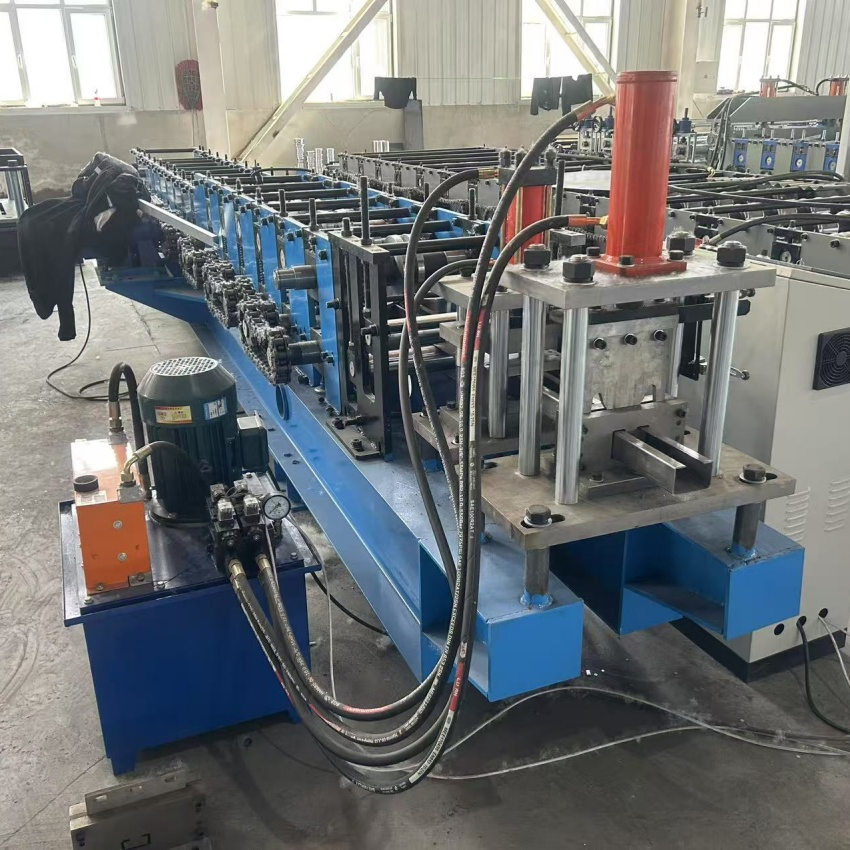

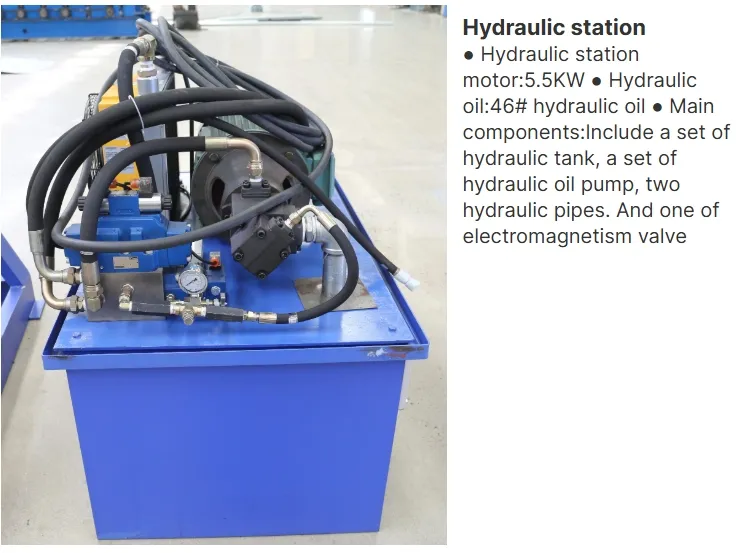

This wall stud roll forming machine produces multi-profiles and size-changing by the spacer. In fact, it is multi size wall stud and tracks machine for multi-profiles, size-changing by the spacer. There is an enlarged hydraulic station to ensure high-speed working. Easy operation, low maintenance cost.
| No | Type | Specification | Details |
|---|---|---|---|
| 1 | Raw material | Material | PPGI GI |
| Feeding width | As drawing | ||
| Thickness | 0.8-3.0mm | ||
| 2 | Decoiler | Operation | Automatic |
| Weight capacity | 5 Ton | ||

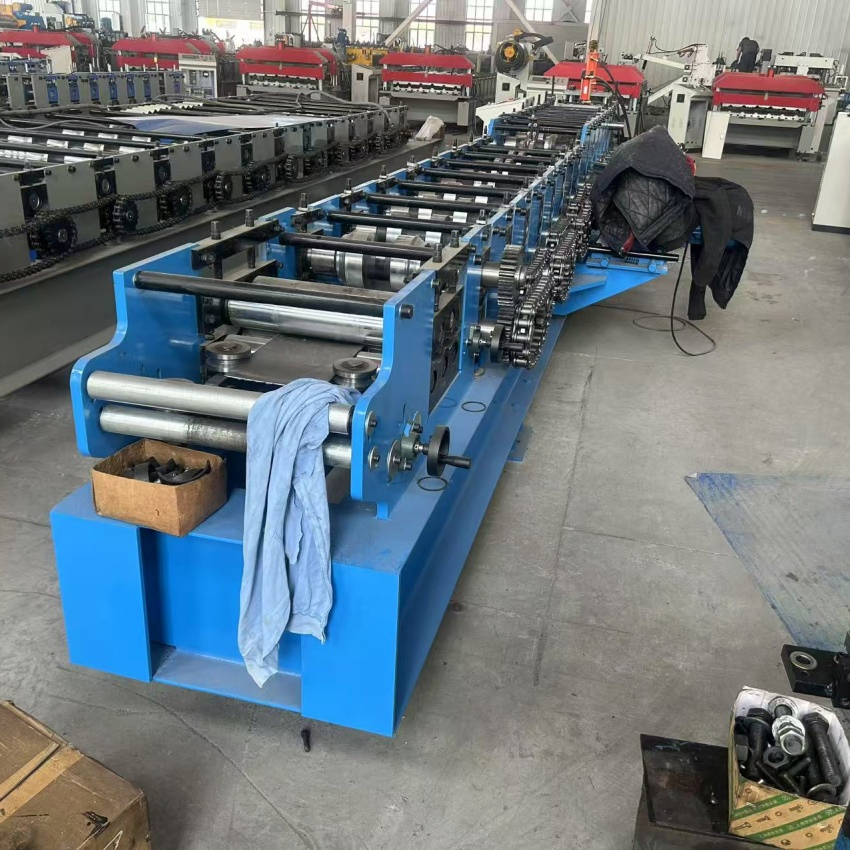

| 3 | Roll forming machine | Roller station | 16-18 |
| Diameter of shaft | 85mm | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | 400 H beam | ||
| Frame thickness | 20mm | ||

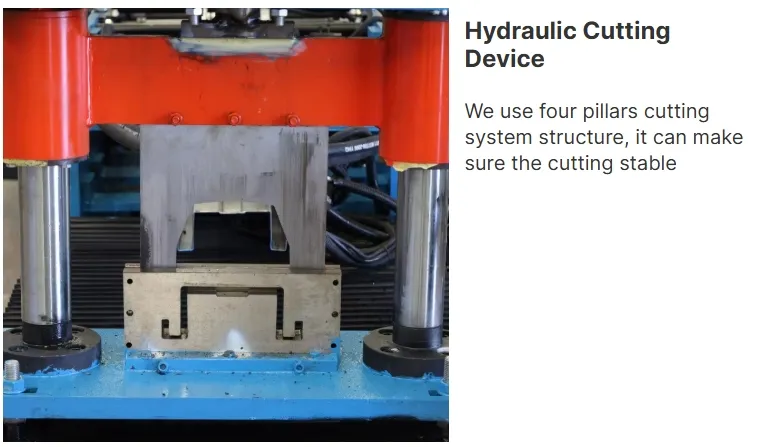

| Cutting Material | Cr 15 | ||
| Operation | Automatic cutting | ||
| Working speed | 15-20m/minute | ||

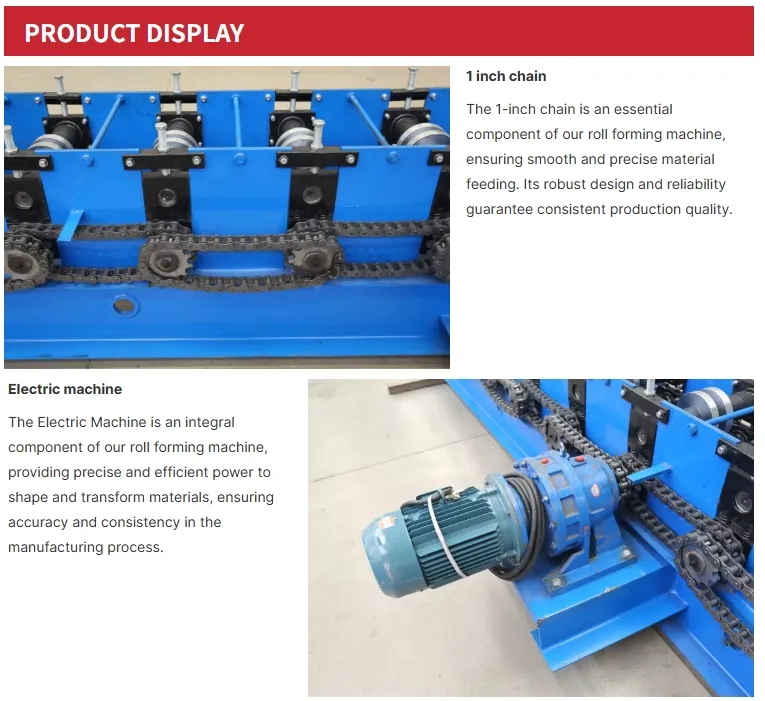

| 4 | Power | Driving way | 2 inch chain |
| Main motor | 7.5kw | ||
| Voltage | 380v 50hz | ||

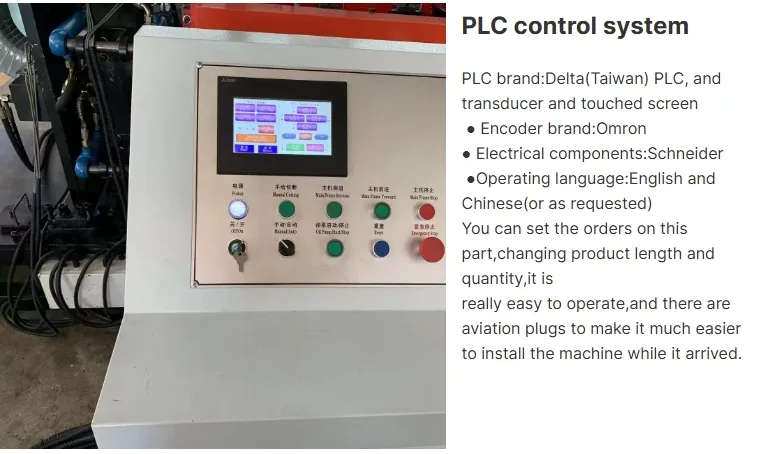

| 5 | Control system | Electric box | PLC control system, inverter |
| PLC brand | Delta | ||
| Inverter brand | Delta | ||
| Language | Chinese and English |
We are a professional manufacturer of C U Z roof purlin roll forming machines. We manufacture and supply variants of cold roll forming machines, such as roofing sheet roll forming machines, shutter door roll forming machines, C U Omega angle roll forming machines, C Z purlin roll forming machines, floor deck roll forming machines, highway guardrail roll forming machines, bending and cutting machines, decoilers, and more. Our machines are exported globally, including to India, South Africa, Pakistan, Brazil, Oman, and other regions. The raw material thickness for our color steel roof roll forming machines is 0.3mm-0.8mm. We can also customize other metal roofing sheet roll forming machines based on your requirements to meet your needs. Our aim: reputation first, customer first.
Main products: roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.
Packing method: Bare covered, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
Delivery time: 35 working days after receiving the advance payment.
We can customize the machine according to your profile drawings or profile pictures to meet the needs of different construction projects. In the use of the machine, the tile making machinery provided can improve the working efficiency, save human resources, reduce human error and ensure the consistent quality and specification of the tiles.
With the continuous development of the construction industry, the market competition is getting more and more intense. Having a high-efficiency and high-quality tile making machinery can help the company to improve the production efficiency, reduce the production cost and enhance the market competitiveness.
There is no need to worry about after-sales problems. We have a professional engineer after-sales service team, which can guide and train online for free, and can also travel to your location to provide hands-on training and guidance.
