Basic Info
Transmission Method
Hydraulic Pressure
Package Size
520.00cm * 150.00cm * 130.00cm
Package Gross Weight
2300.000kg
Product Description

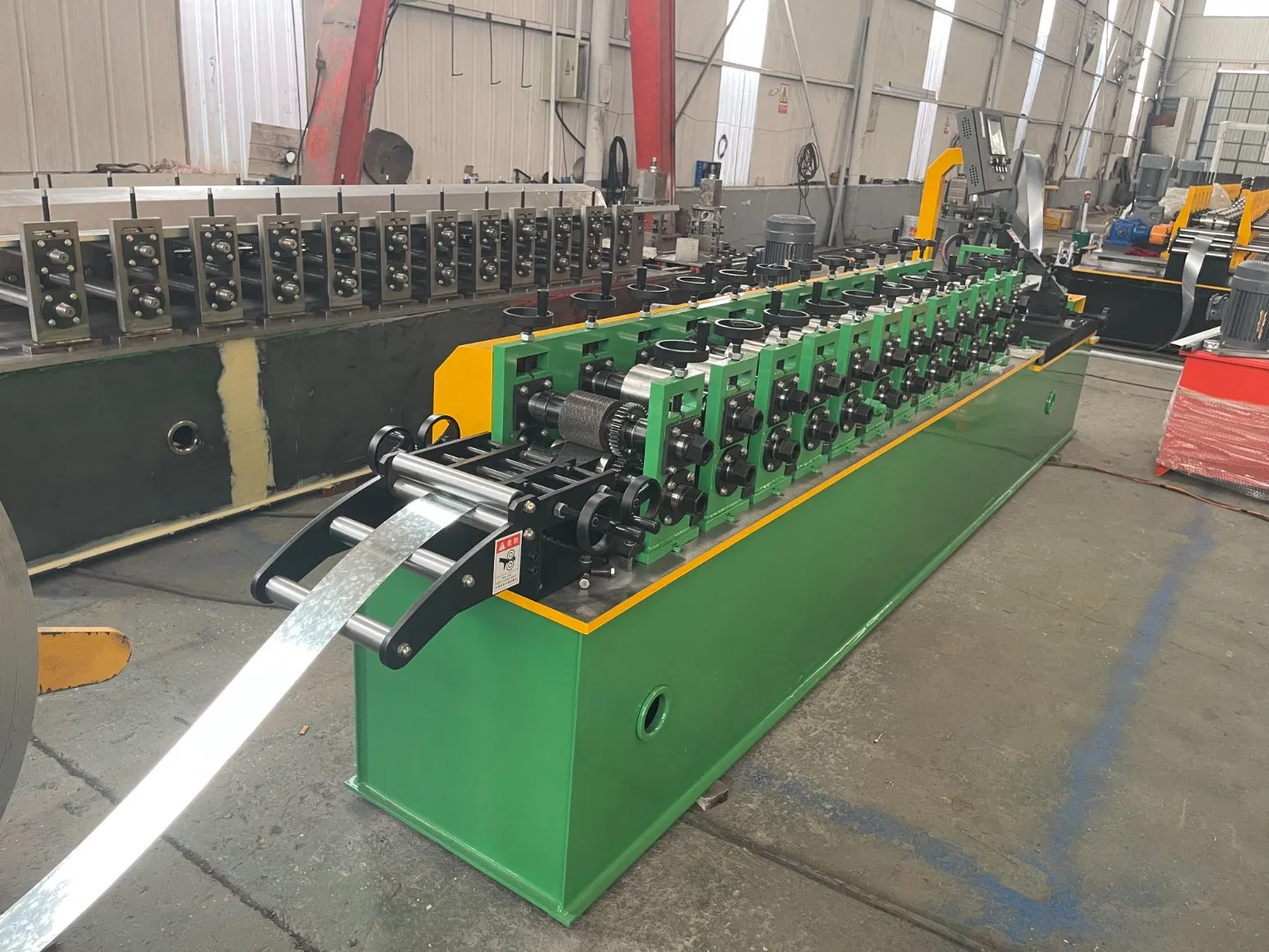

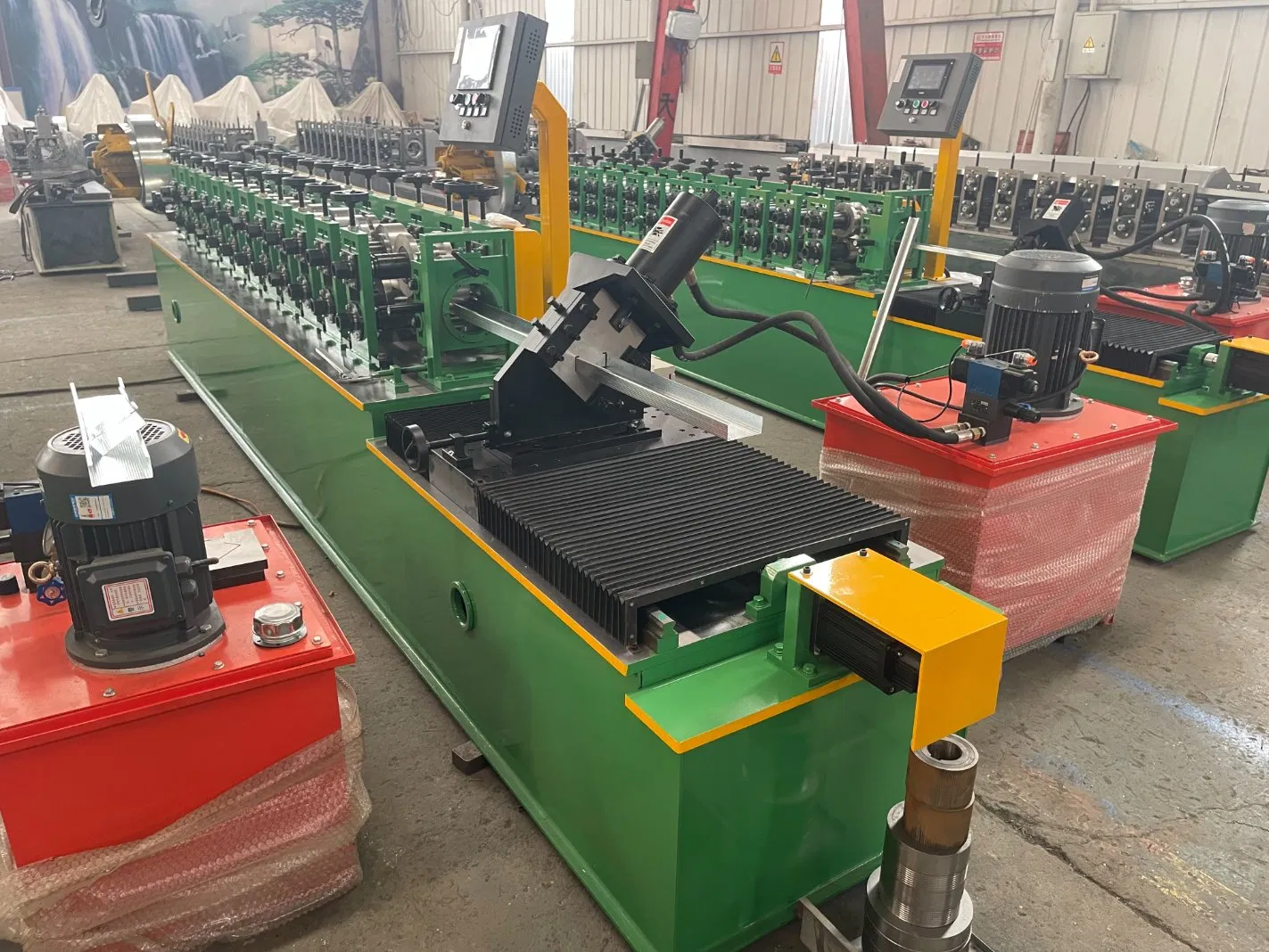

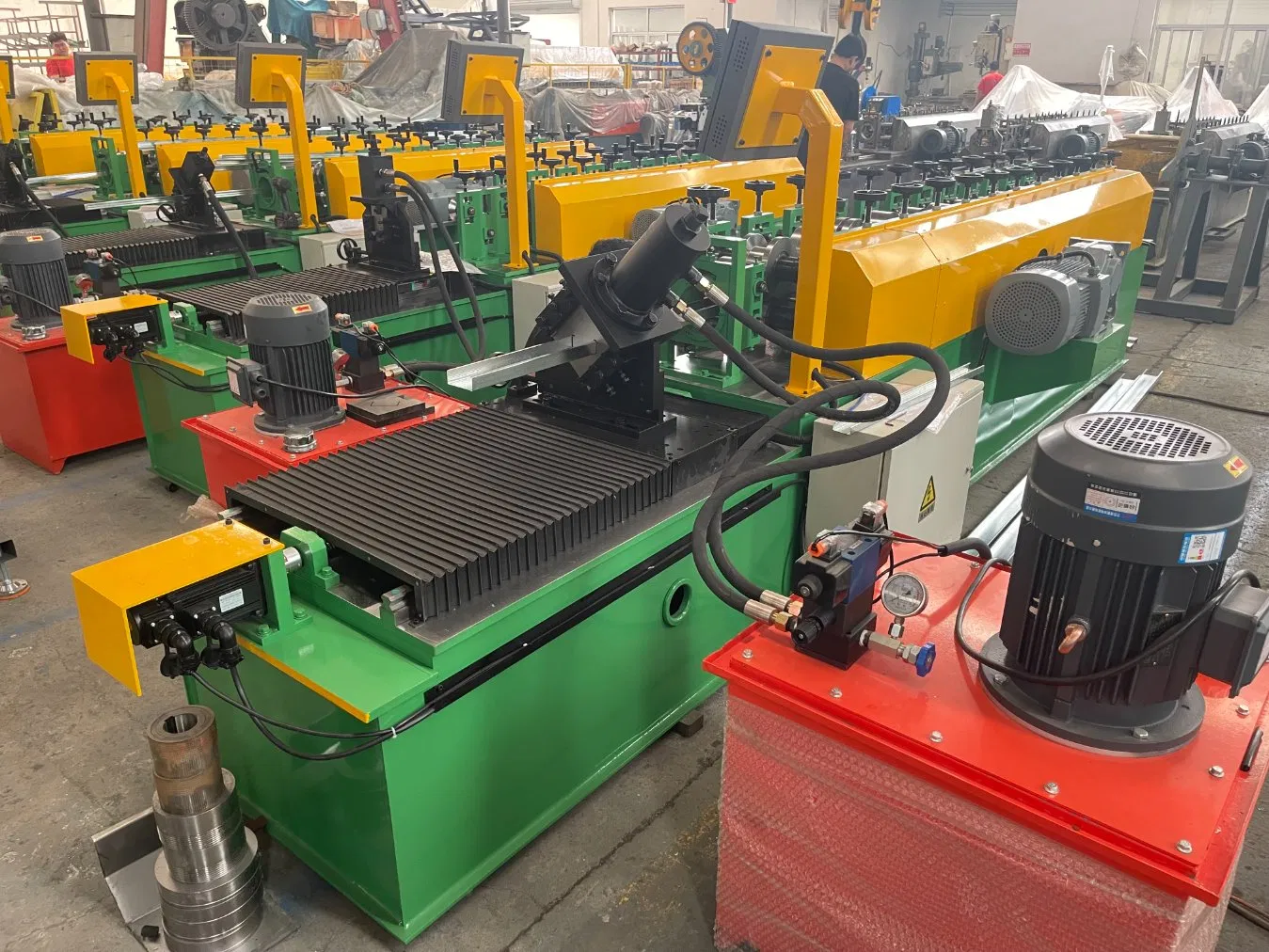

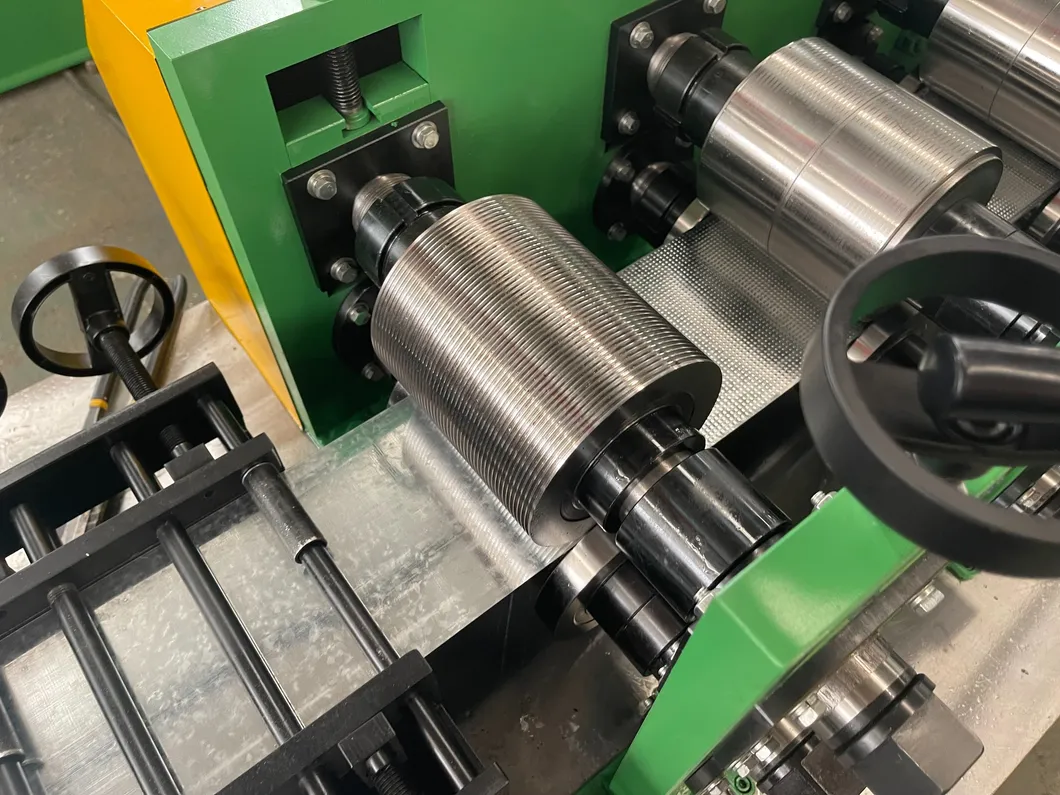

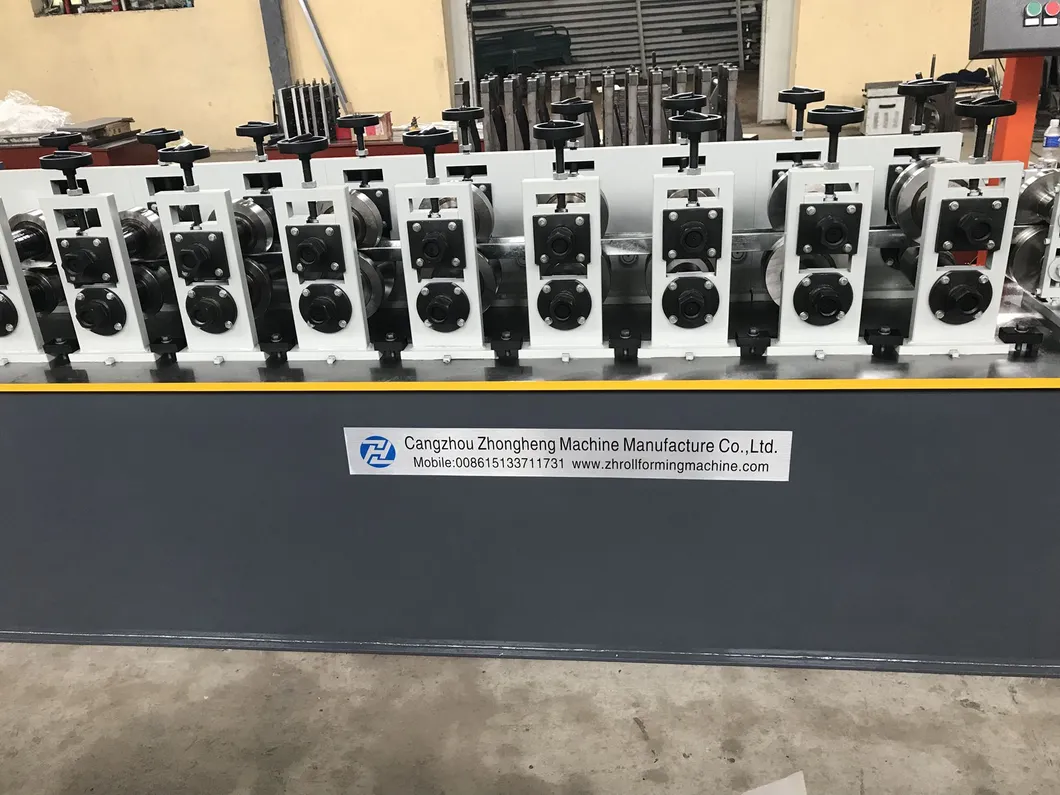

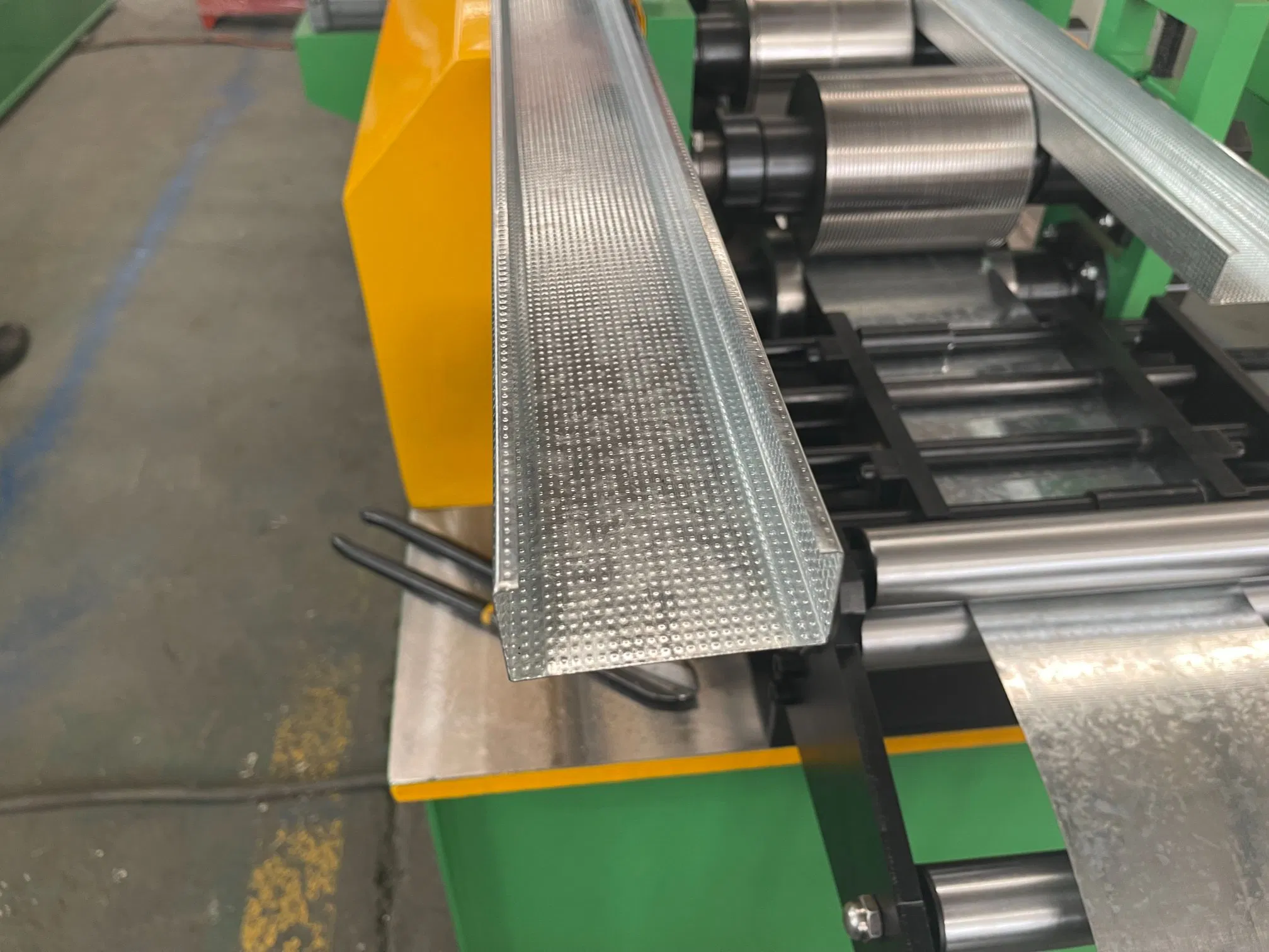

light keel steel frame drywall corner bead angle iron roll forming making machine
Fully automatic light steel keel roll former machine c u shape steel keel forming machine. Light steel keel forming machine with steel as a raw material, by continuous cold rolling molding to produce complex profiles section, type multiple, versatile. Light steel keel molding machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.
Specification
| Item |
Value |
| Applicable Industries |
Building Material Shops, Manufacturing Plant, Construction works, Other |
| After Warranty Service |
Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location |
Philippines, Brazil, Sri Lanka, South Africa |
| Showroom Location |
None |
| Condition |
New |
| Type |
light steel keel roll forming machine |
| Tile Type |
Galvanized strips |
| Use |
ROOF |
| Production Capacity |
15-25m/min |
| Voltage |
380v |
| Dimension(L*W*H) |
5600*800*1500mm |
| Weight |
3.2 ton |
| Certification |
CE, ISO |
| Warranty |
2 years |
| Key Selling Points |
Famous brand PLC |
| Rolling thickness |
0.3-0.8mm |
| Motor power |
3kw |
| Machinery Test Report |
Provided |
| Video outgoing-inspection |
Provided |
| Marketing Type |
NEW Product 2020 |
| Warranty of core components |
2 years |
| Core Components |
Motor, Bearing, Pump, Engine, PLC |
| Raw material |
PPGL/PPGI/GI/GL and so... |
| Roller material |
45#steel Chrome Plated |
| Thickness |
0.35--1.0mm |
| Control system |
PLC(imported Brand) |

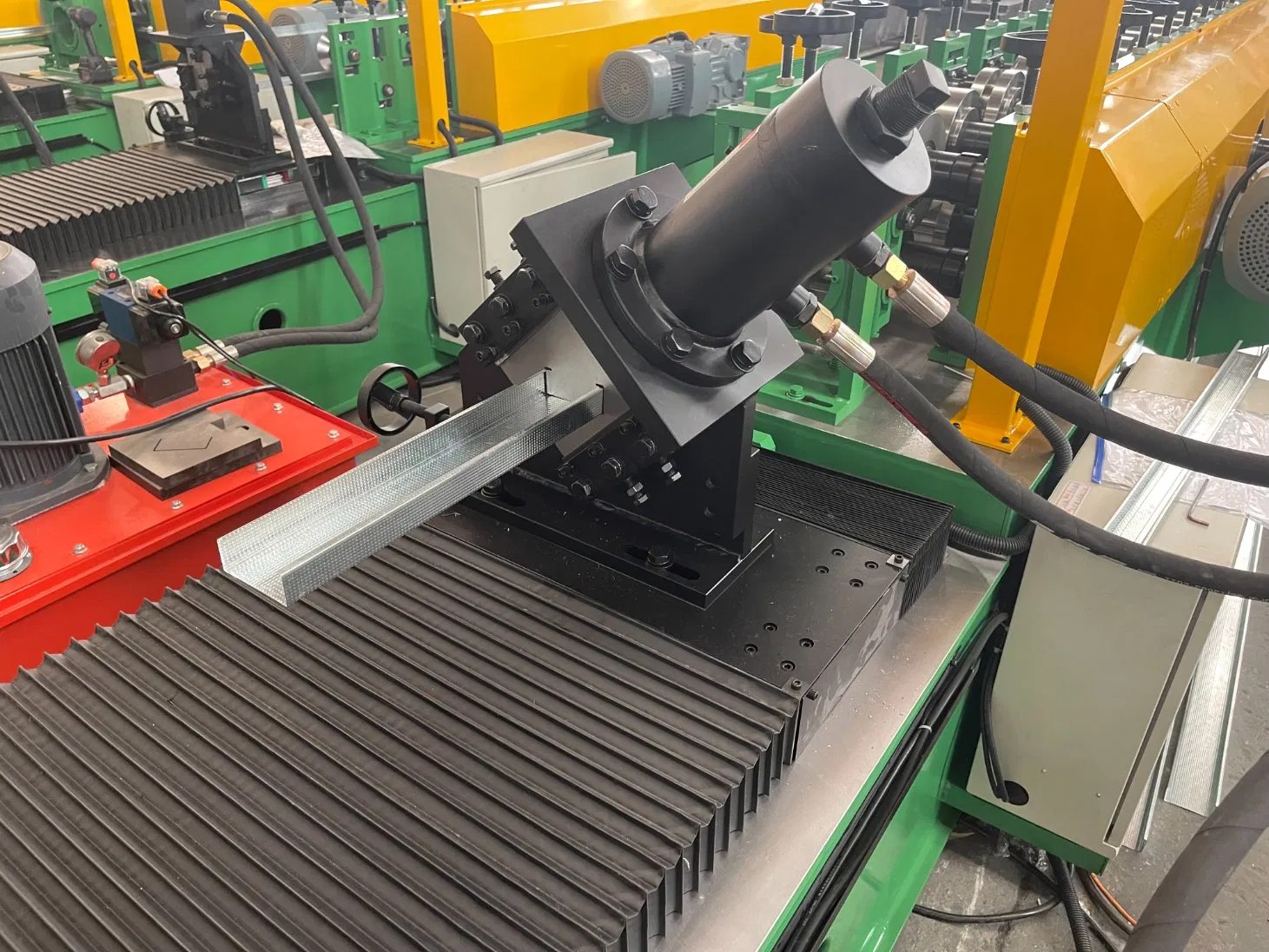

| Cutting blade material |
Cr 12 Steel |
| Shaft material |
45# Steel |
| Suitable to process |
Galvanized strips |
| Usage |
Construction |
Packaging & Shipping

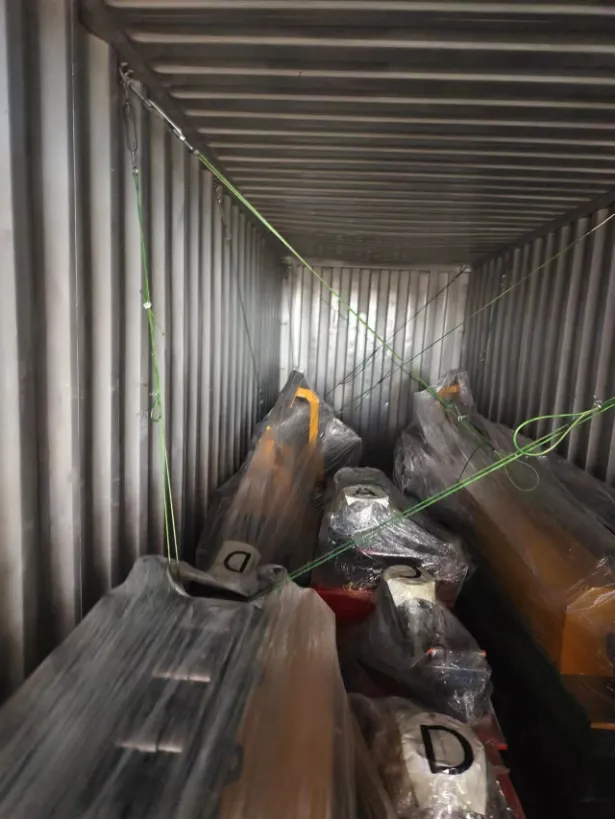

- Roll forming machine needs one 20/40 feet container to load.
- We have professional technicians for loading to make sure the machine has no damage.
- Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
FAQ
What types of roll forming machines do you manufacture?
We manufacture a wide range of machines including Roof & Wall Roll Forming Machines, Floor Deck Roll Forming Machines, Light Steel Keel Roll Forming Machines, CZ Purlin Roll Forming Machines, and Leveling Slitting Roll Forming Machines.
How is the quality of the machinery guaranteed?
We perform a strict final inspection before shipment. Our machines use premium components including imported brand PLCs, 45# steel shafts, and Cr12 steel cutting blades.
What is the production capacity and thickness capability of this machine?
The light steel keel roll forming machine features a production capacity of 15-25m/min. It is capable of processing thicknesses from 0.3mm to 0.8mm (up to 1.0mm depending on specs) of galvanized strips and PPGL/PPGI/GI/GL raw materials.
What are the requirements for packaging and shipping?
The roll forming machine requires one 20 or 40 feet container to load. Professional loading technicians handle the equipment to guarantee it arrives with no damage.
What warranty and post-purchase services do you provide?
We offer a 2-year warranty for the machine and its core components (motor, bearing, pump, engine, PLC). Post-purchase support includes video technical support, online support, spare parts, and field maintenance and repair services.
