Product Description

Embedded Rail Socket
Product Specifications
Product Name Embedded Rail Socket
Process Material Brushed aluminum alloy + anodized/fluorocarbon baking paint
Rated Voltage 250V
Rated Current 32A
Rated Power 8000W
Appearance Color Deep Space Grey / Starlight Silver / Meteorite Black / Classical Gold / Aurora White
Track Height 25mm
Track Width 25mm (top) / 18mm (bottom)
Installation Method Embedded installation
Customization Customizable American/European/British standard power module
Application Kitchen, worktop, coffee bar, office desk, meeting table
Detailed Images & Features

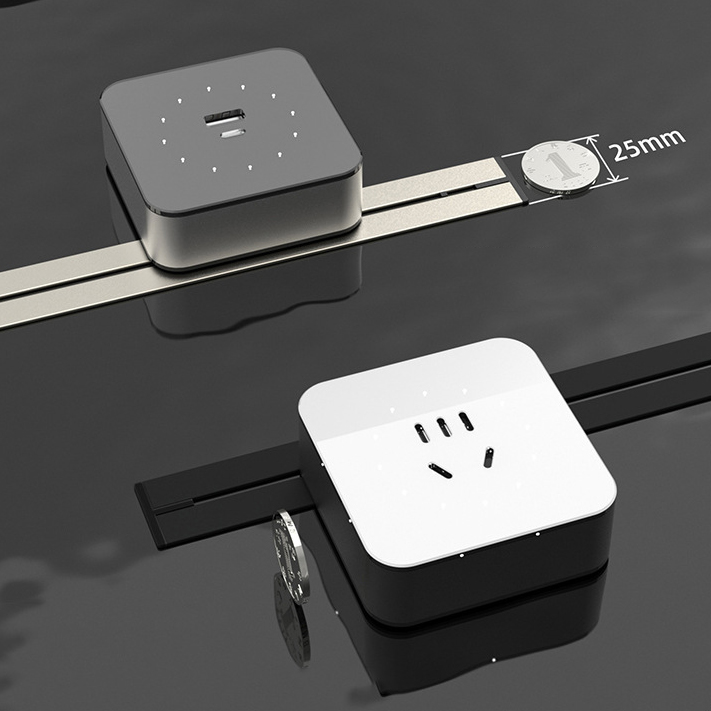

Ultra-Slim Design

The surface width of the visible installation is only 25mm. You can cut the length freely to fit your specific furniture or space requirements.

Ultra-Slim Design

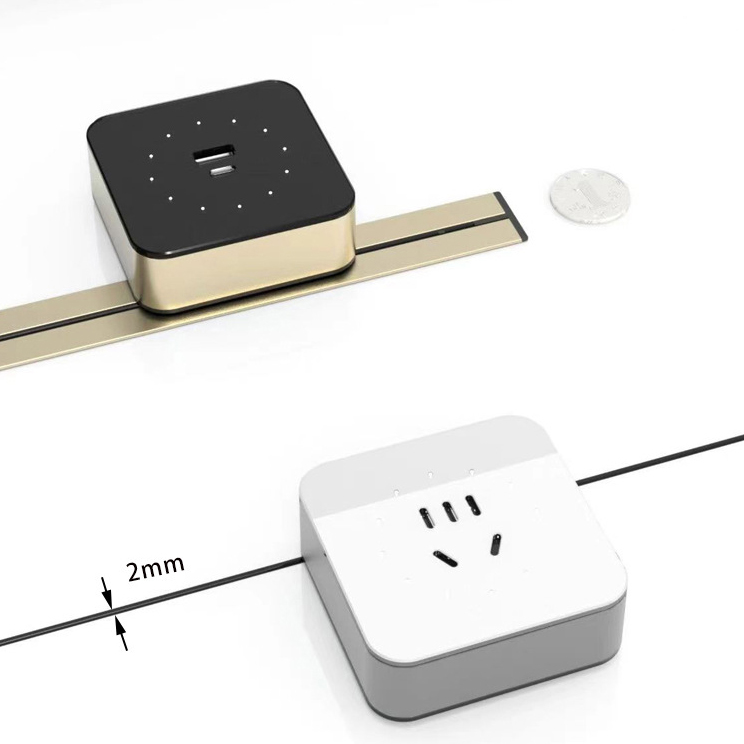

Extremely Narrow Opening

The installation surface has a width of only 2mm and an extremely narrow opening. This sleek profile ensures a minimalist aesthetic for modern interiors.

Narrow Opening

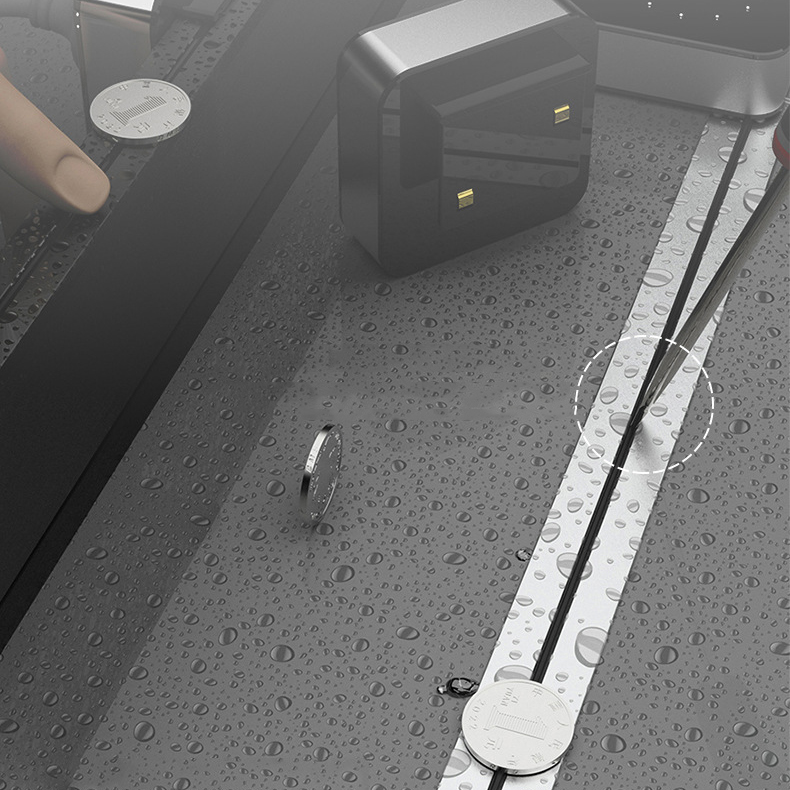

Safety & Protection

2mm extremely narrow opening prevents foreign objects from entering. Passed Level 5 dustproof and Level 4 waterproof certification for maximum safety.

Safety Protection
Professional Engineering

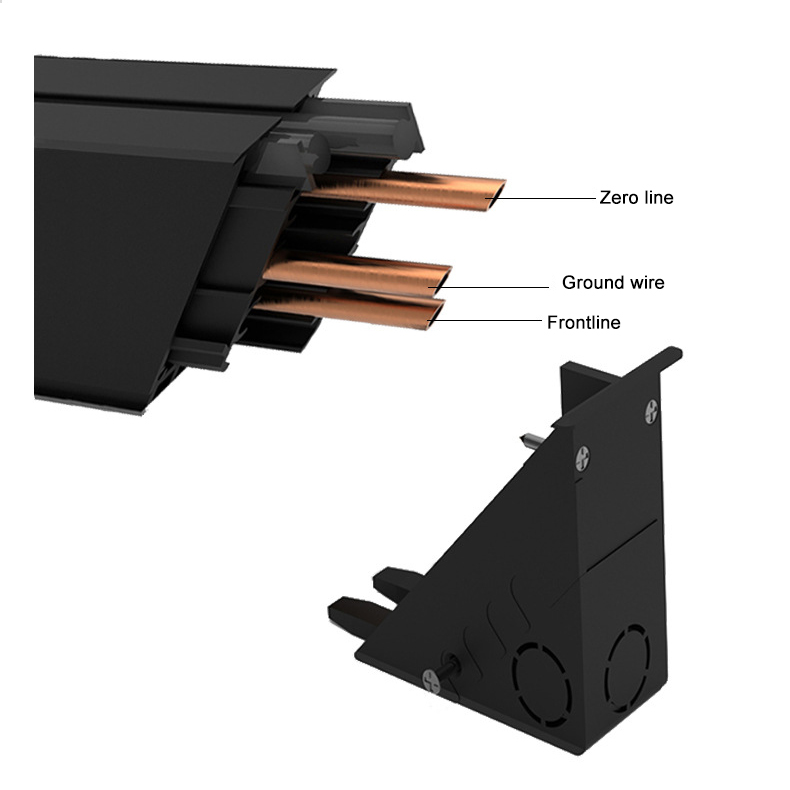

Beryllium copper tube

Built-in beryllium copper tube with multiple power-off protection mechanisms.

Plug module

Adapt plug module with patent protection design and beryllium copper safety contacts.

Dimensions & Application
Product Size
Application 1
Application 2
Installation Guide

Surface Mounted Installation Steps:

Surface Mount Steps

Concealed Installation Steps:

Concealed Installation Steps
Packing & Shipping
Manufacturing Excellence

Specialized in Smart Home & Office power data solutions. With over 13+ years of manufacturing experience, we operate high-end machinery including laser cutting, stamping presses, CNC tools, and dedicated testing lines to ensure the highest quality standards.

  • Leading manufacturer of hidden media sockets for table/wall/floor
  • Professional for Customized Made & OEM Services
  • Advanced CNC and Laser manufacturing capabilities
Frequently Asked Questions
Q1: What is the total power capacity of the rail socket?
A: The rail socket supports a rated power of up to 8000W with a rated current of 32A, making it suitable for high-power kitchen appliances and office equipment.
Q2: Can the track length be customized?
A: Yes, the track design allows for free cutting of the length to meet your specific installation requirements.
Q3: Is the rail socket safe to use in kitchens?
A: Absolutely. It features Level 5 dustproof and Level 4 waterproof certification, along with a 2mm narrow opening to prevent foreign objects or fingers from entering.
Q4: What materials are used in the power contacts?
A: The socket uses built-in beryllium copper tubes which provide excellent conductivity and are part of multiple power-off protection mechanisms.
Q5: What power module standards are available?
A: We offer customizable power modules including American, European, and British standards to suit international needs.
Q6: What colors can I choose from?
A: The product is available in five elegant finishes: Deep Space Grey, Starlight Silver, Meteorite Black, Classical Gold, and Aurora White.
