Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
1 / 3
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor

Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor

Customization: Available
Customized: Customized
Structure: Desktop
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
CY-5TA
Material
Steel
Certification
CE, TUV
Application
School, Hospital, Lab, Scientific Research
Type
Lab Pressing
Pressure Range
10-50000 Newton
Adapter Power
90W
Motor Power
75W
Reduction Ratio
1:20
Pressure Control Range
1000-50000 Newton (Adjustable)
Pressure Accuracy
+-50 N
Working Space
150mm(L) * 100mm(W) *120mm(H) (Adjustable Height)
Press Stroke
35 mm
Transport Package
Wooden Box
Specification
240mm(L) *165mm(W) * 560mm(H)
HS Code
8474801000
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
30.00cm * 20.00cm * 60.00cm
Package Gross Weight
40.000kg
Product Description

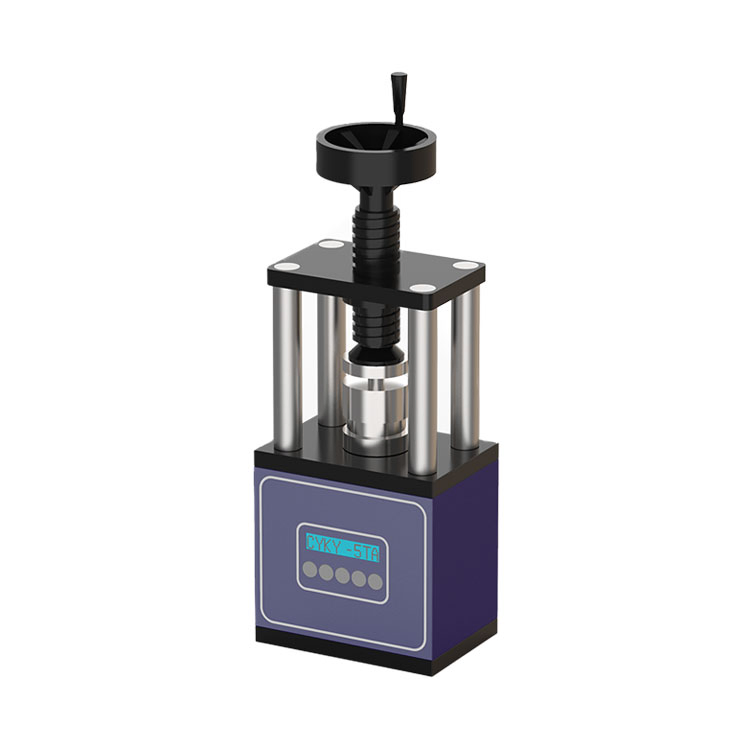

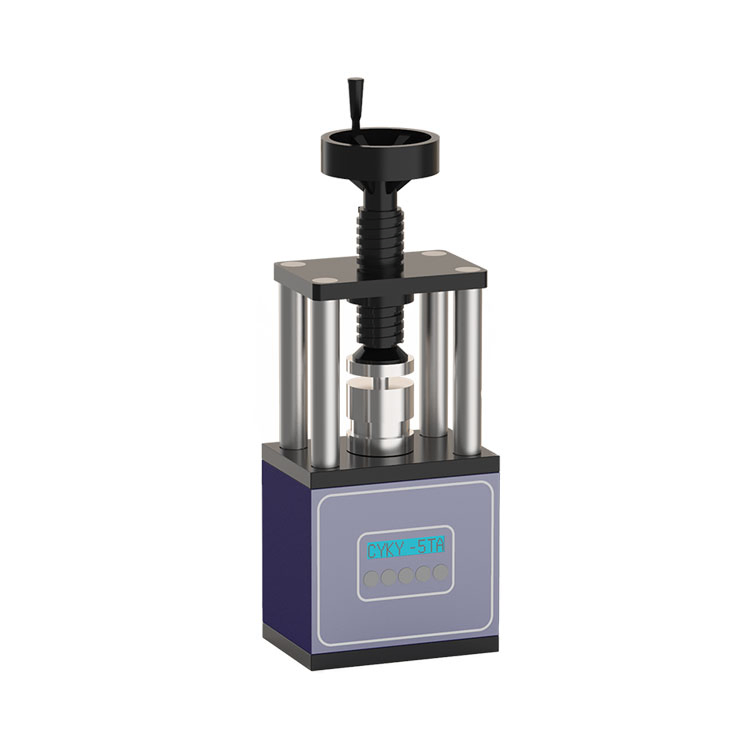

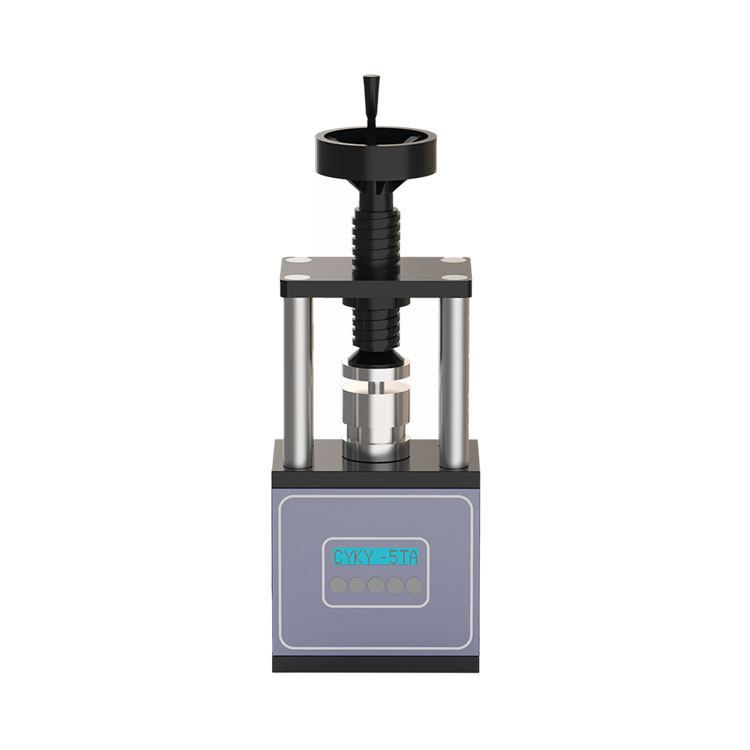

Laboratory small vertical oil-free hydraulic press driven by 75W DC24V motor
Introduction of Small oil-free electric press:
CY-5TA is a small oil-free electric press specially designed for use in glove boxes. It can press some oxygen-sensitive materials and the maximum pressure is 50000N. Therefore, the press is driven by a DC24V motor and can be used in a glove box protected by an argon atmosphere. It also completely solves the problem of oil leakage in the glove box of the traditional hydraulic press (the actual product shall prevail, the picture is for reference only).
Technical Parameters
Working voltage

The host input voltage is 24VDC

Equipped with 110-240V AC to 24VDC power adapter.

Adapter power: 90W
Pressure drive

Adopts DC 24V DC reduction motor drive

Motor power: 75W, reduction ratio: 1:20
Pressure control

Pressure display range: 10-50000 Newton

Pressure control range: 1000-50000 Newton (adjustable)

Constant pressure accuracy: ±50 N
Working space

150mm(L) x 100mm(W) x 120mm(H) (adjustable height)

According to different sample sizes, different sizes of pads can be configured
Press stroke 35 mm
Instrument size 240mm(L) x 165mm(W) x 560mm(H)
Instrument weight About 35kg
Detailed Photos
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Laboratory Small Vertical Oil-Free Hydraulic Press Driven by 75W DC24V Motor
Frequently Asked Questions
Q Are you a manufacturer or a trading company?
We are professional laboratory instrument manufacturers, have our own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q How is the product after-sales service system?
The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q How long is your delivery time? If I want to customize the instrument, how long does it take?
1. If the goods are in stock, it is 5-10 days.
2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q Our country's power supply and plug are different. How do you solve it?
We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q How to pay?
T / T, L / C, D / P, etc.
Q How is the package of goods? Delivery methods?
1. Standard export fumigation sign wooden box packaging.
2. Express, air, sea shipping according to customer requirements, find the most suitable way.
