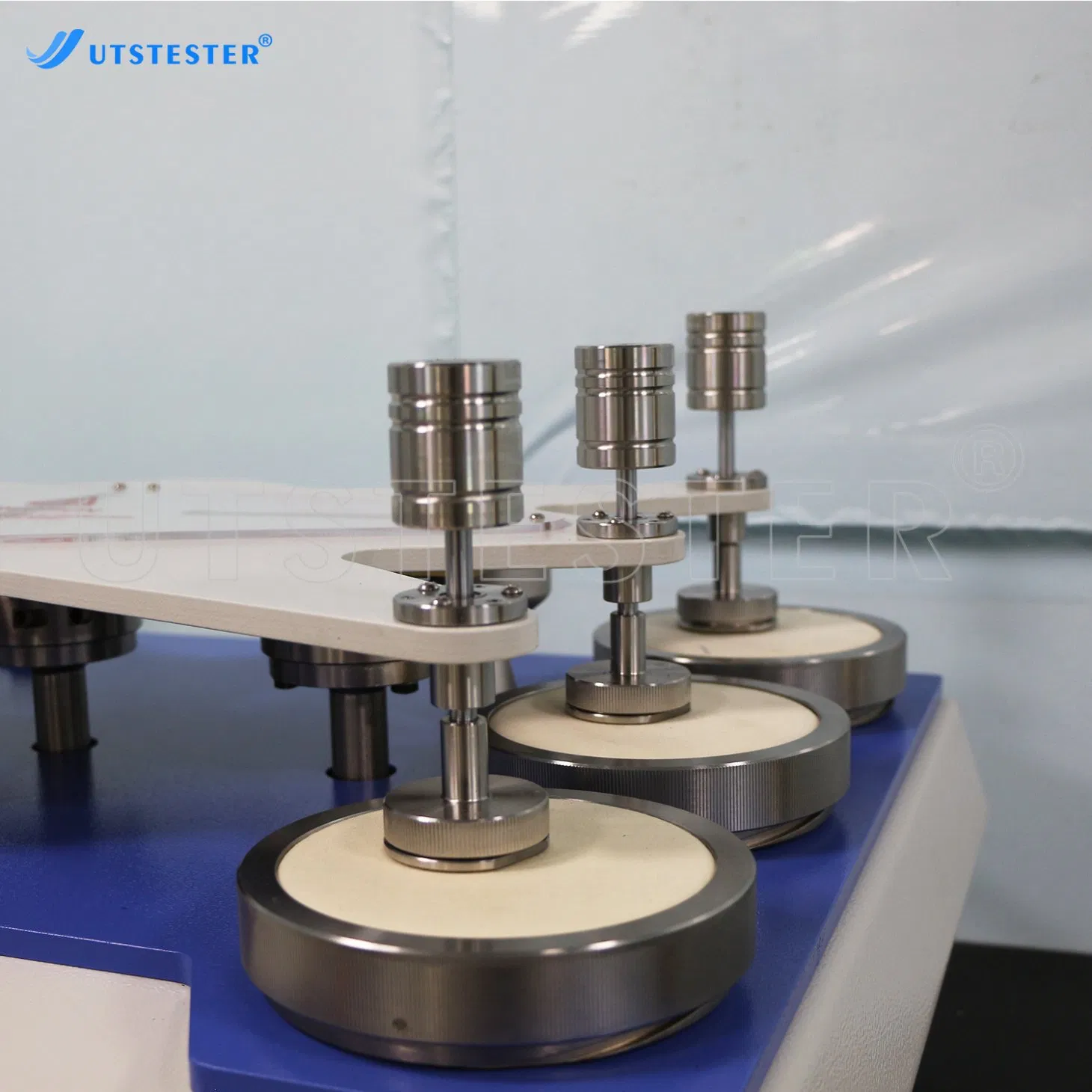

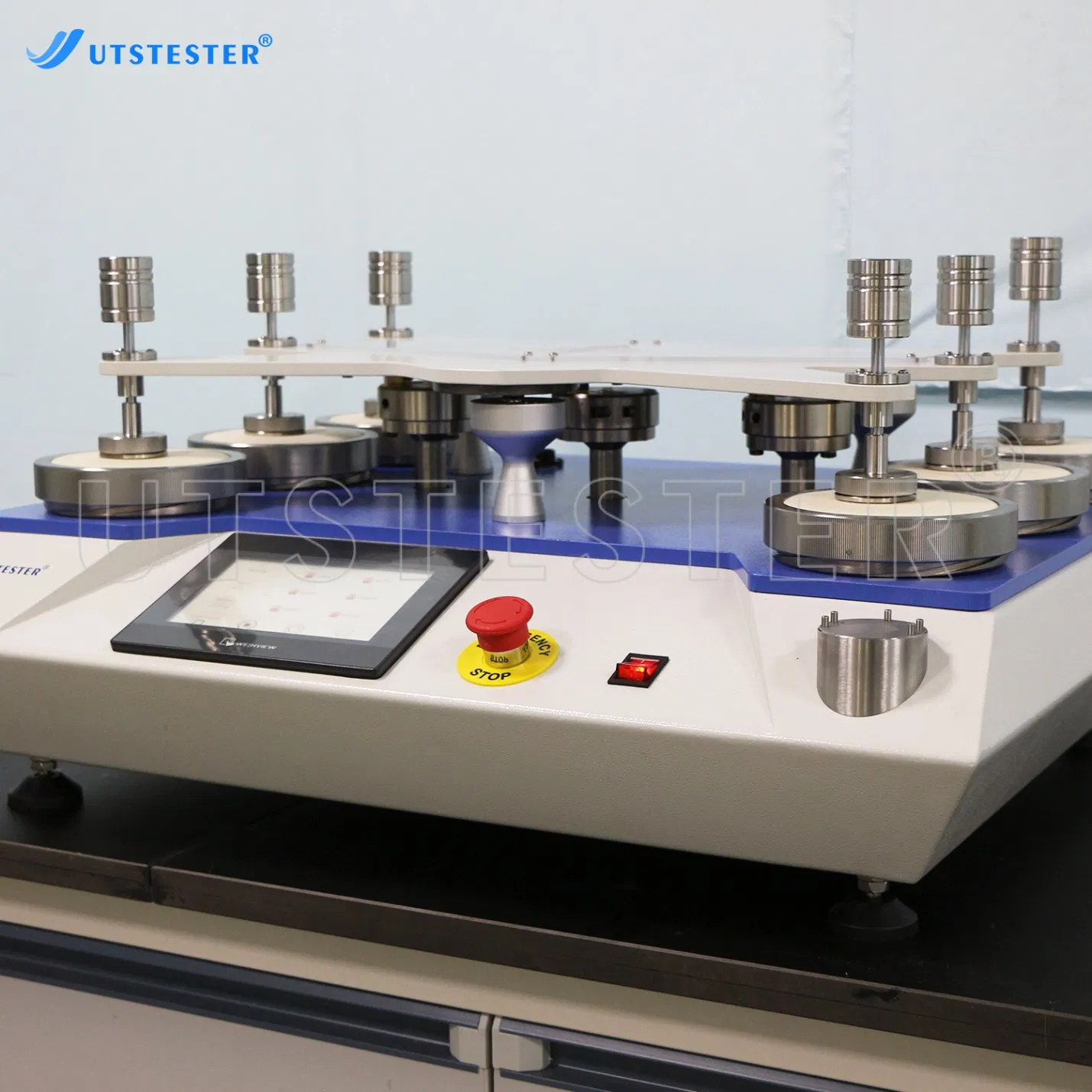

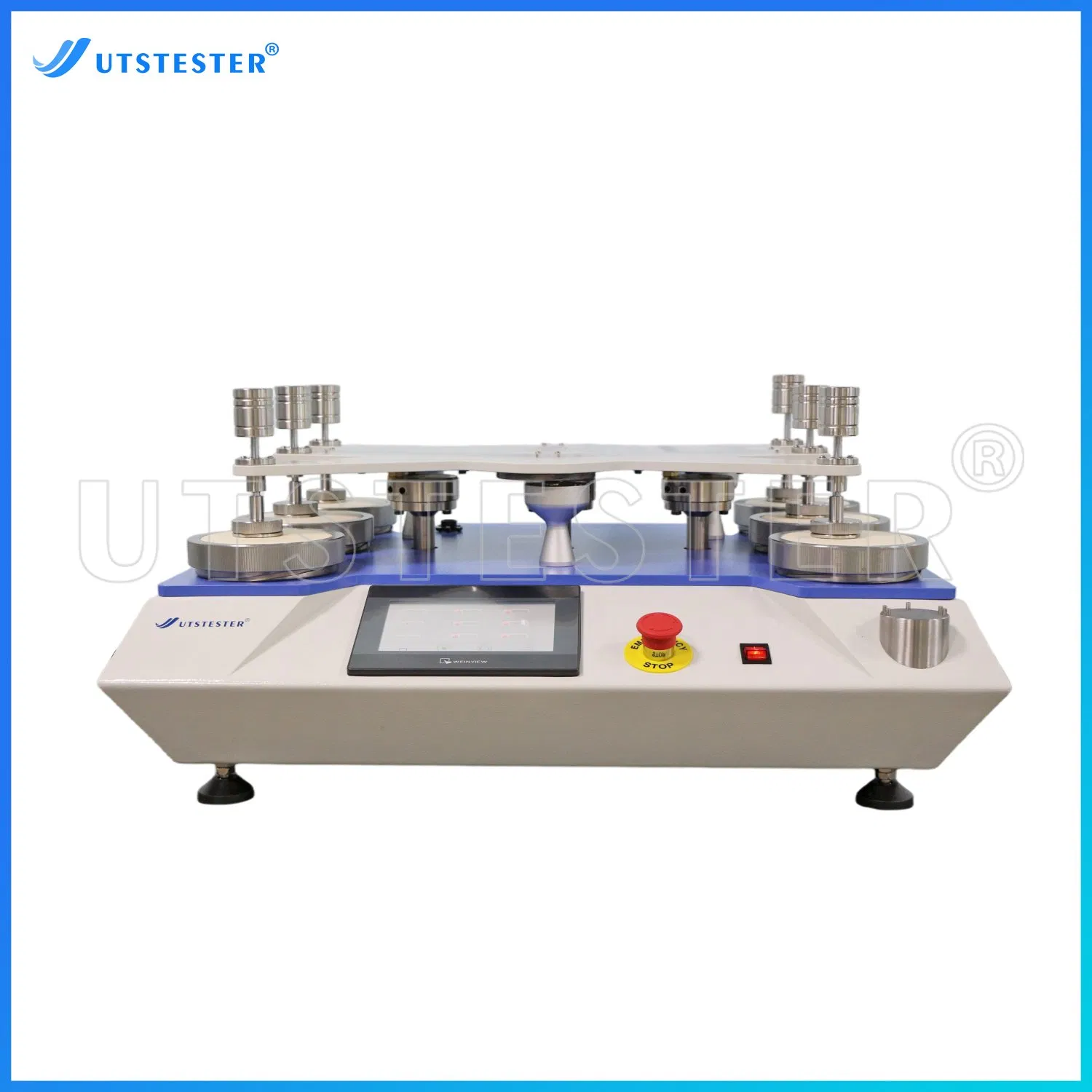

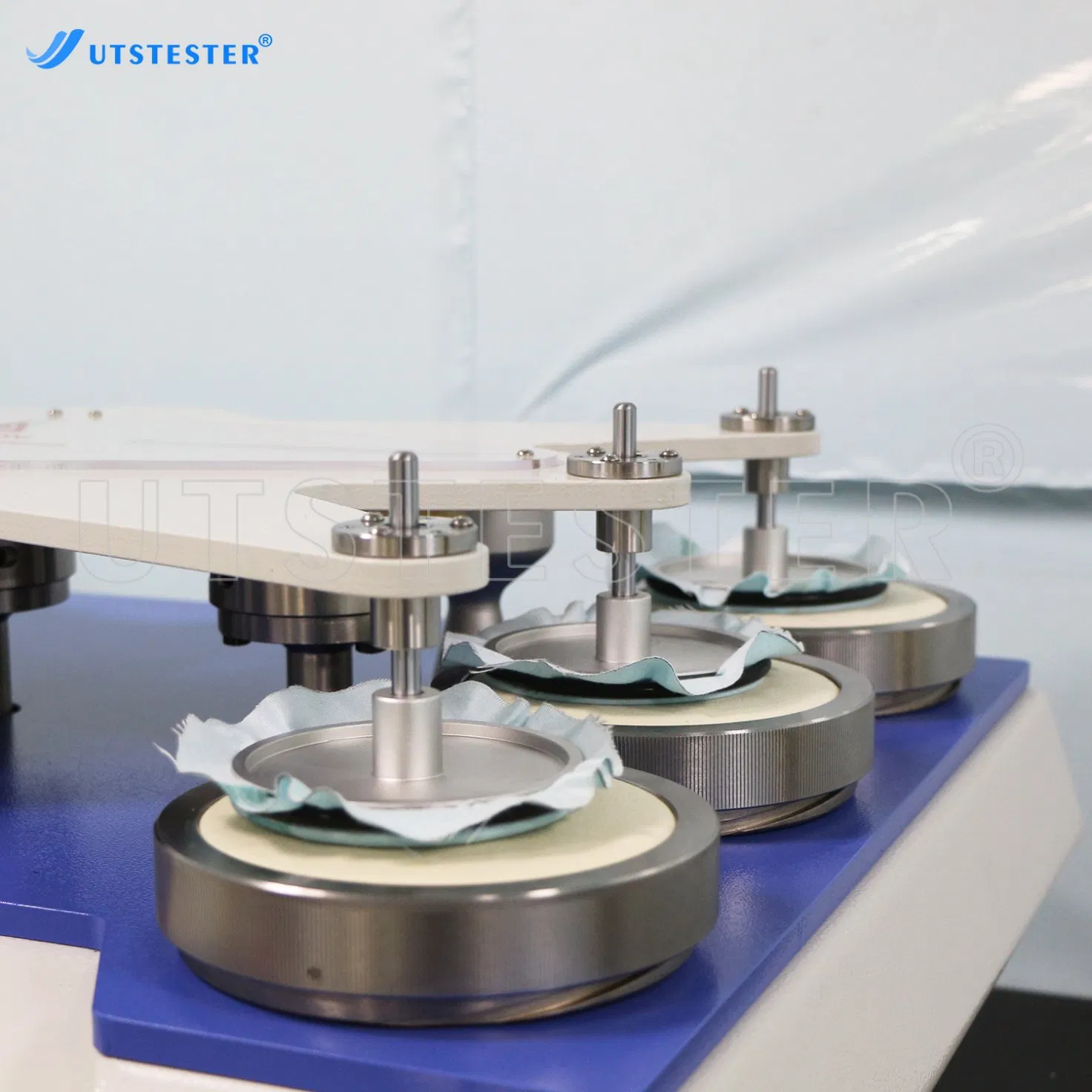

The Martindale is designed for multiple abrasion and pilling tests for various textile structures, including non-woven fabric, carpets, leather, socks, gloves, collars, cuffs, wood, high pressure laminates, painted surfaces, etc. The touch screen controller, with the most common functions accessible in one or two touches, makes this the easiest Martindale in the market to use. 4, 6, 8, 9 working positions and 2 counting Methods of count up & count down are available.
Abrasion: ISO 12947, ASTM D4966, IWS TM 112, M&S P19, Next 18, SN 198529, TWC 112, JIS L1096, GB/T 21196.2, GB/T 13775
Pilling: ISO12945-2, ASTM D4970, IWS TM 196, M&S P17, Next TM26, SN 198525, GB/T 4802.2
| Model | M008A-4 | M008A-6 | M008A-8 | M008A-9 |
|---|---|---|---|---|
| Working positions | 4 | 6 | 8 | 9 |
| Counting range | 0~999999 times | |||

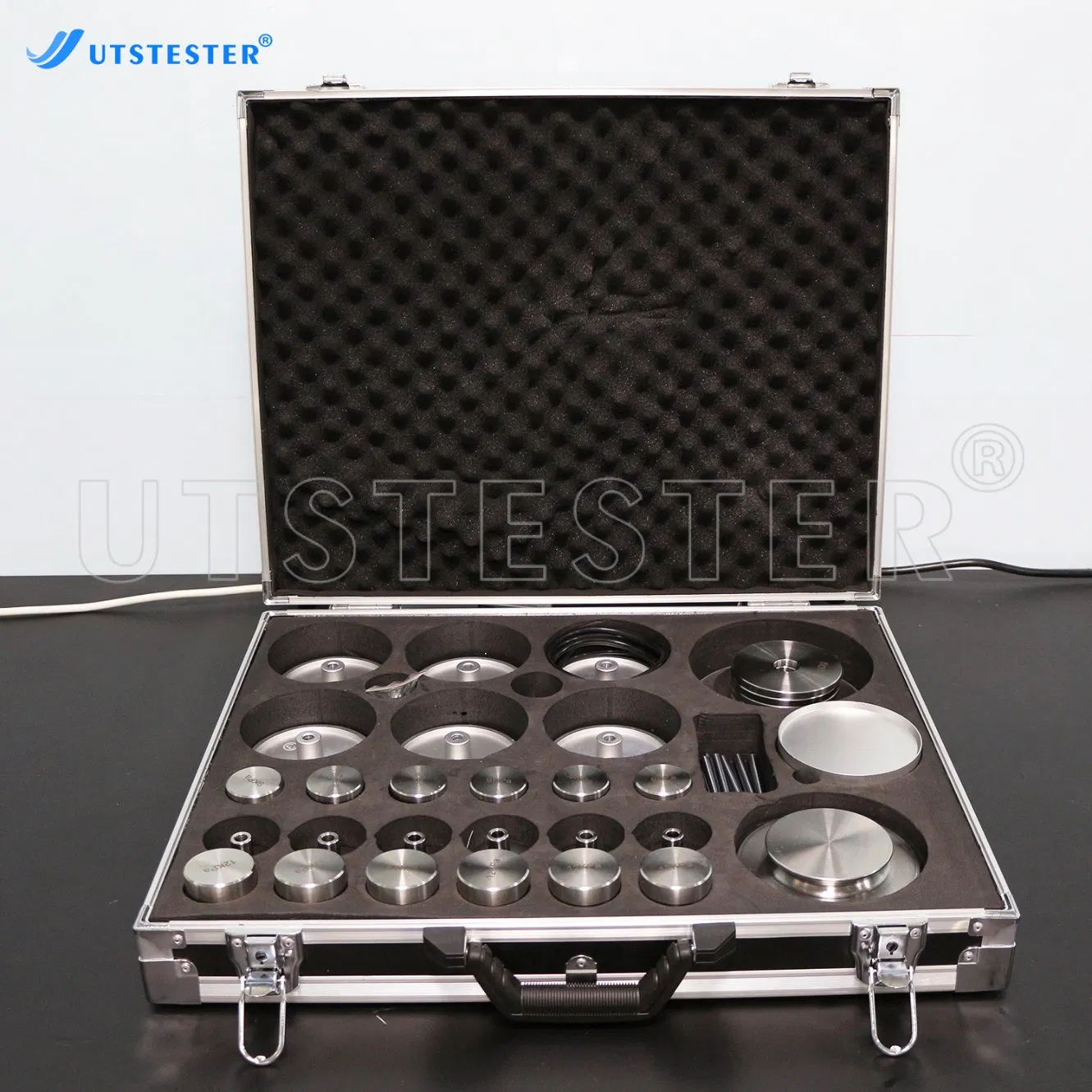

| Test load (Abrasion) |
Sample holder: (198 ±2)g Load for Furnishings: (597±5)g Load for Garment material: (397±5)g |
|||
| Test load (Pilling) |
Stainless steel load: (155 ± 1) g Stainless steel disc: (260 ± 1)g |
|||
| Effective friction diameter of grinding block |
A) Abrasion Holder: Φ(28.65 ± 0.05)mm B) Pilling Holder: Φ(90 ± 0.10)mm |
|||
| Rotational speed | 47.5±2.5r/min (20-70 r/min adjustable) | |||
| Weight of loading hammer | 2.5kg±0.5kg | |||
| Rubing/pilling stroke | 60 ± 0.5mm / 24 ± 0.5mm | |||
| Power supply | 1Phase AC 220V 50/60Hz 500W | |||
| Dimensions (L x W x H) (cm) | 60×55×33 | 78×62×33 | 78×62×33 | 78×62×33 |
| Weight (kg) | 77 | 107 | 120 | 130 |
