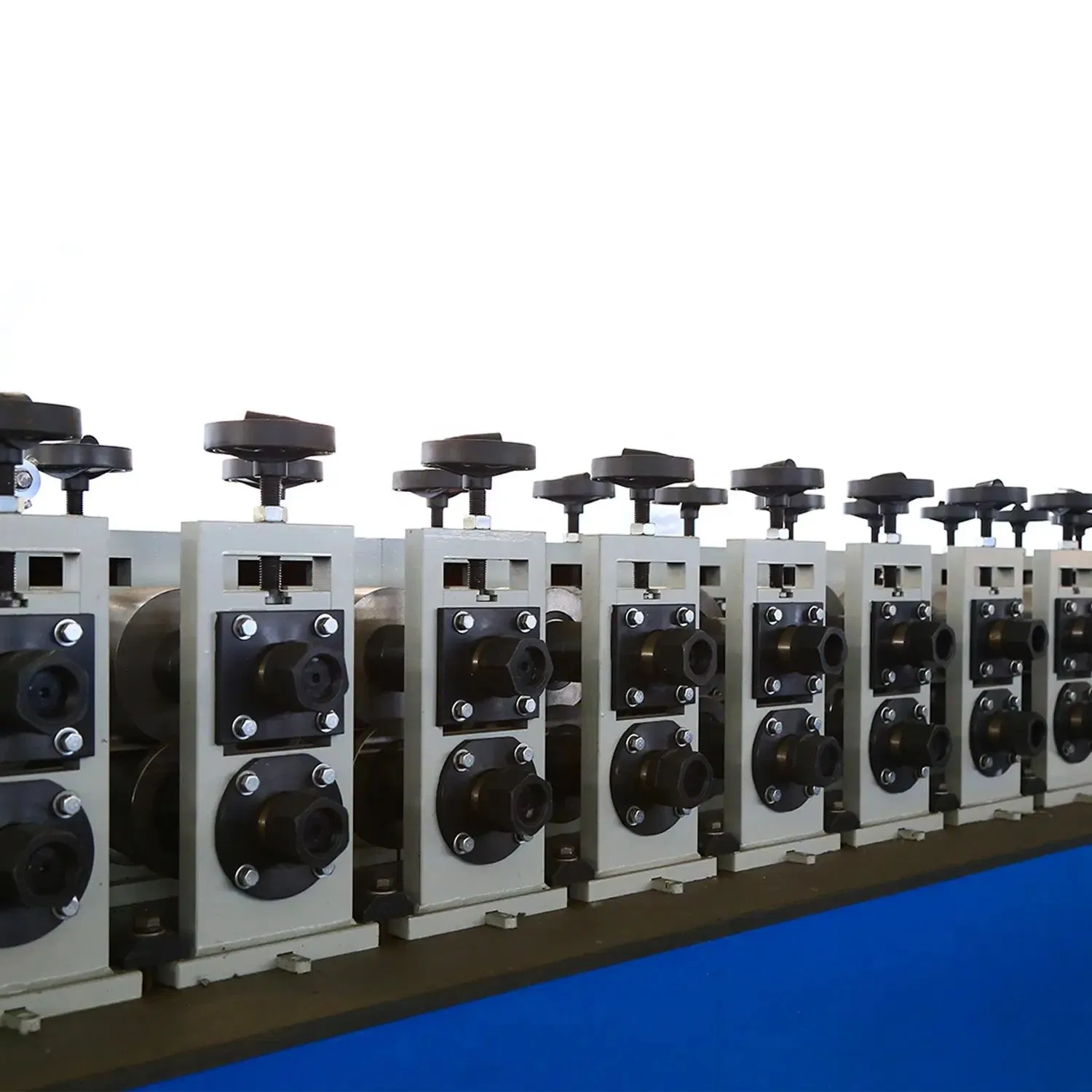

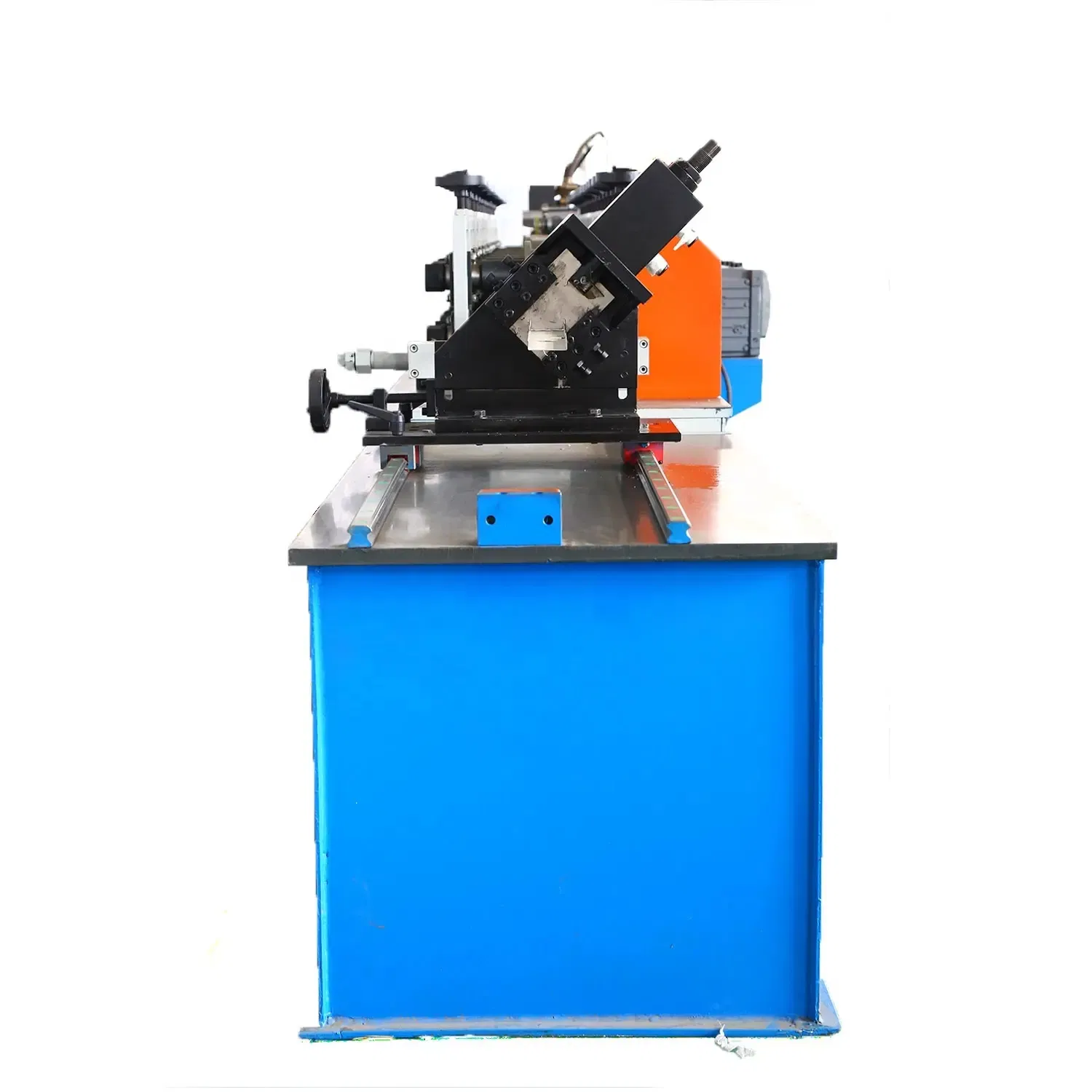

C/U Light steel keel is made of high-quality hot-dip galvanized sheet and strip as raw materials and rolled by cold bending process to form a metal frame for construction. It is used to decorate non-load-bearing walls and building roofs with light-weight panels such as gypsum board. Because of its characteristics, it is suitable for the shape decoration of the roof of various buildings, the inner and outer walls of the building and the basic material of the scaffolding ceiling.
| Attribute | Value |
|---|---|
| Type | Tile Forming Machine |
| Tile Type | Colored Steel |
| Use | ROOF |
| Voltage | 380V or as required |
| Rolling thickness | 0.3-0.8mm |
| Feeding width | 900mm |
| Attribute | Value |
|---|---|
| Production Capacity | 30 m/min |
| Place of Origin | Hebei, China |
| Weight | 7000 kg |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Core Components | Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other |
| Dimension(L*W*H) | 9 * 1 * 0.7 m |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| After Warranty Service | Field maintenance and repair service |
| Local Service Location | None |
| Raw material | PPGI GI |
| Roller material | 45# Steel Plated |
| Color of Machine | Required Color |
| Advantage | Easy Control |
| Control box language | Add Language |
| Certification | CE ISO |
| Control system | PLC(detla) System |
| Specification | Details |
|---|---|
| Selling Units | Single item |
| Single package size | 900X100X70 cm |
| Single gross weight | 7000.000 kg |
| No. | Parameter Item | Specification Detail |
|---|---|---|
| 1 | Coil Type | PPGI GI |
| 2 | Width | 1000mm |
| 3 | Thickness | 0.3-0.8mm |
| 4 | Yield stress | Q235 |
| 5 | Effective Width | 900mm |
| Component | Material & Processing Details |
|---|---|

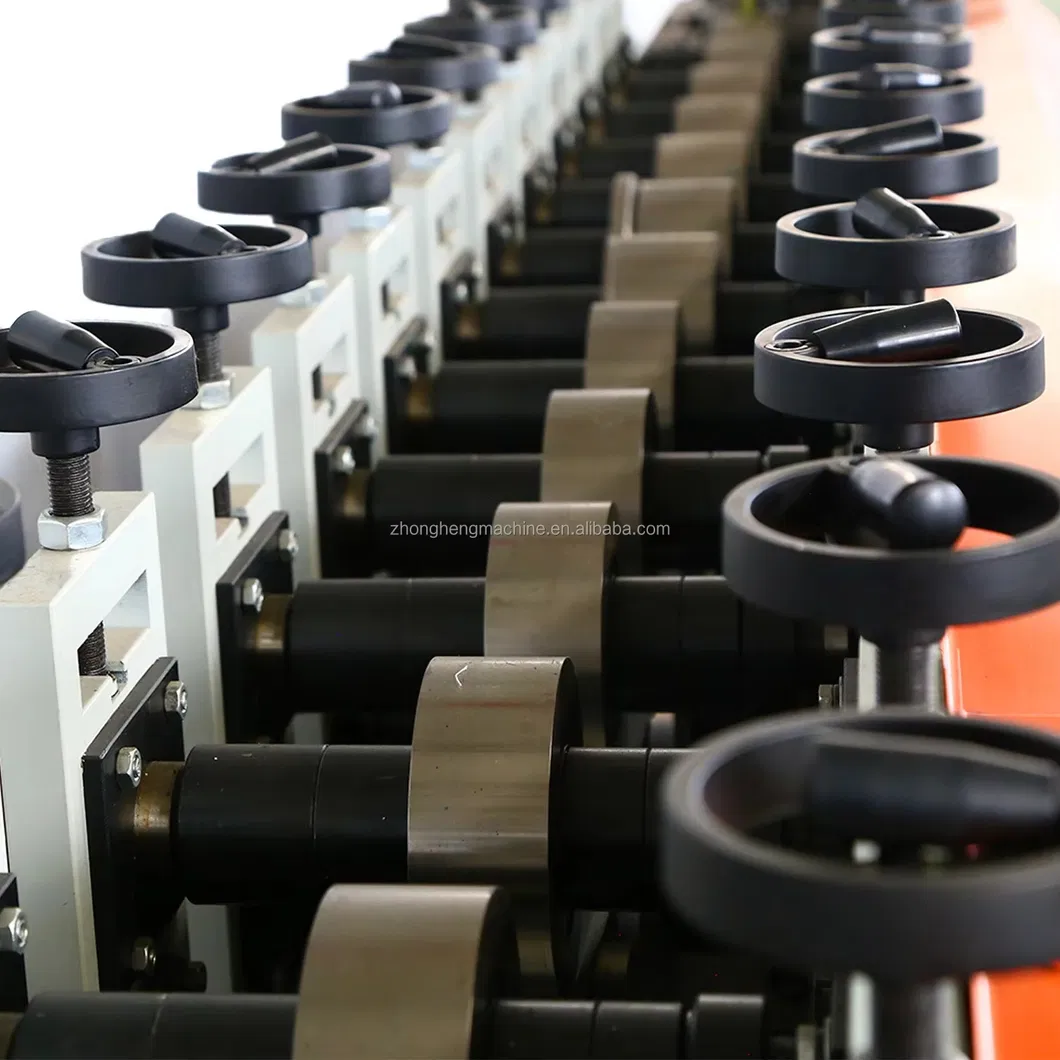

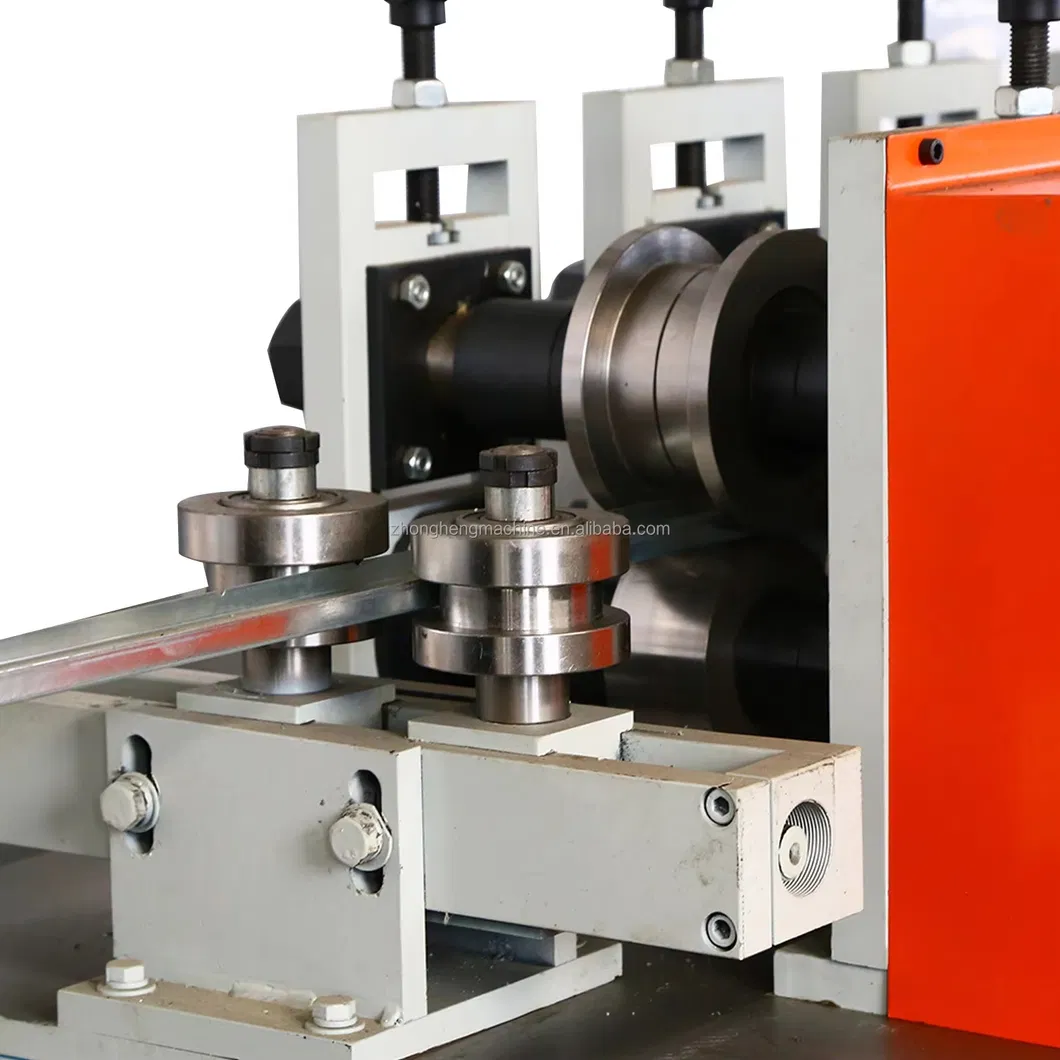

| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 16, according to the drawing. |
| Shaft Material | Φ60 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |

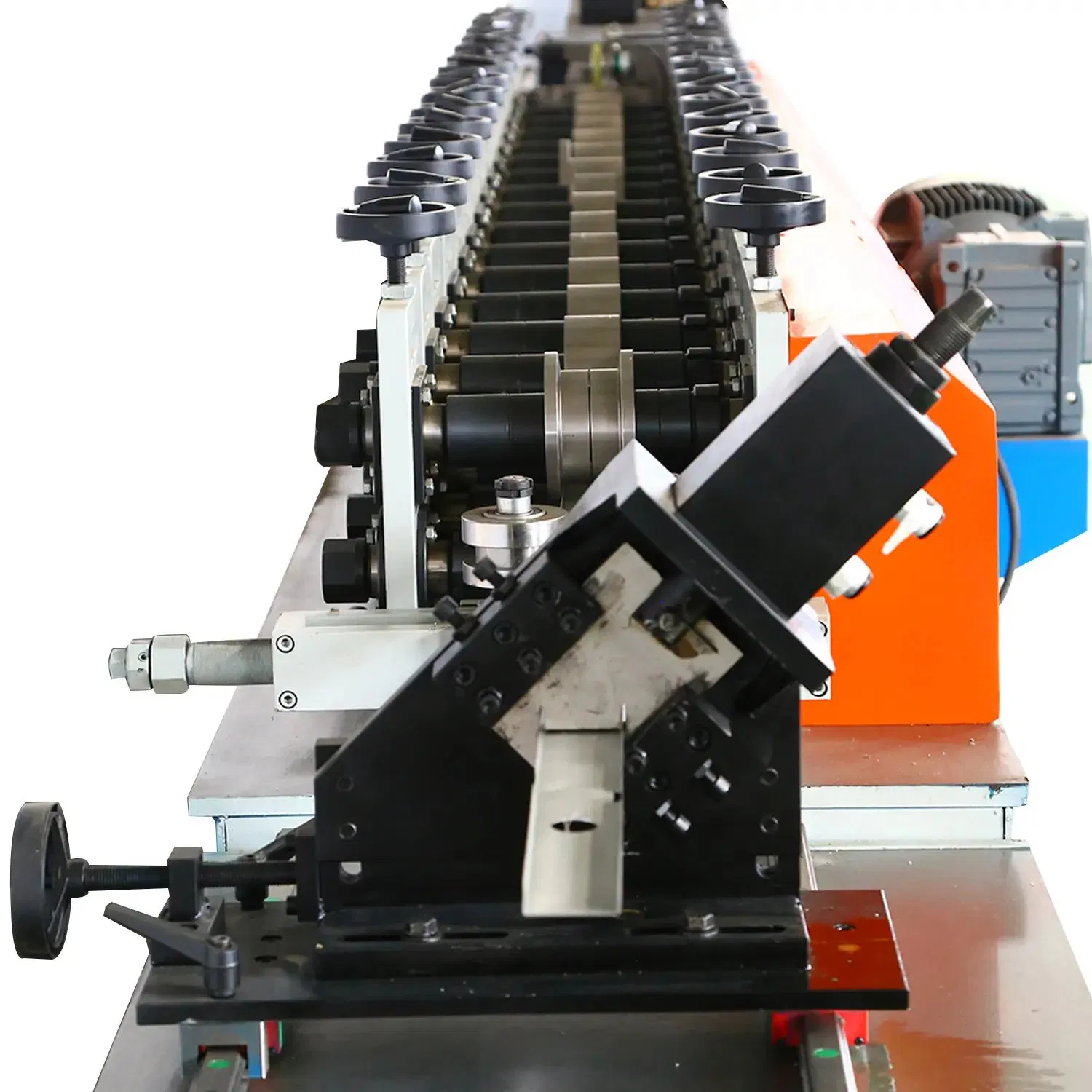

| Cutting Blade Material | Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting. |
| Electrical Component | Technical Specifications & Features |
|---|---|
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES. Well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
| Frequency Converter | Delta VFD-M. It has the advantage of slowing down before cutting, to ensure length accuracy (±1mm, far better than industrial standard ±3mm). |
| Length Measurement Device | Omron, made in Japan. Features high accuracy and stability. |
We are a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines, material of building. It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world. Our company is organized and run as a modern enterprise system. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.
We would like to invite you to come and join us to build our mutual benefit.
