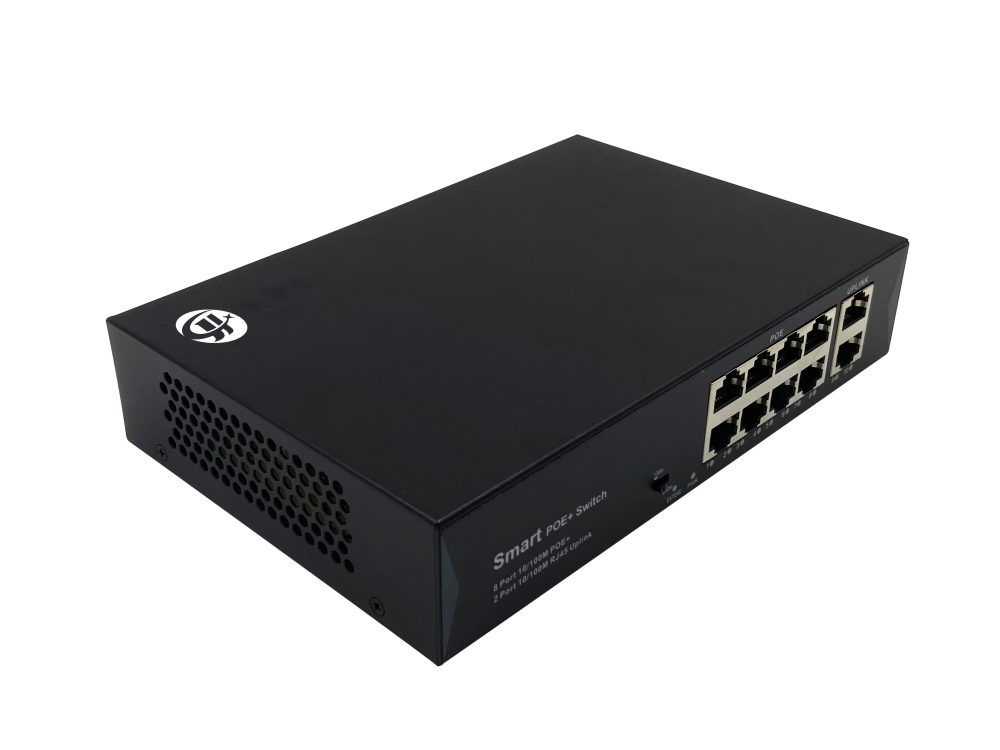

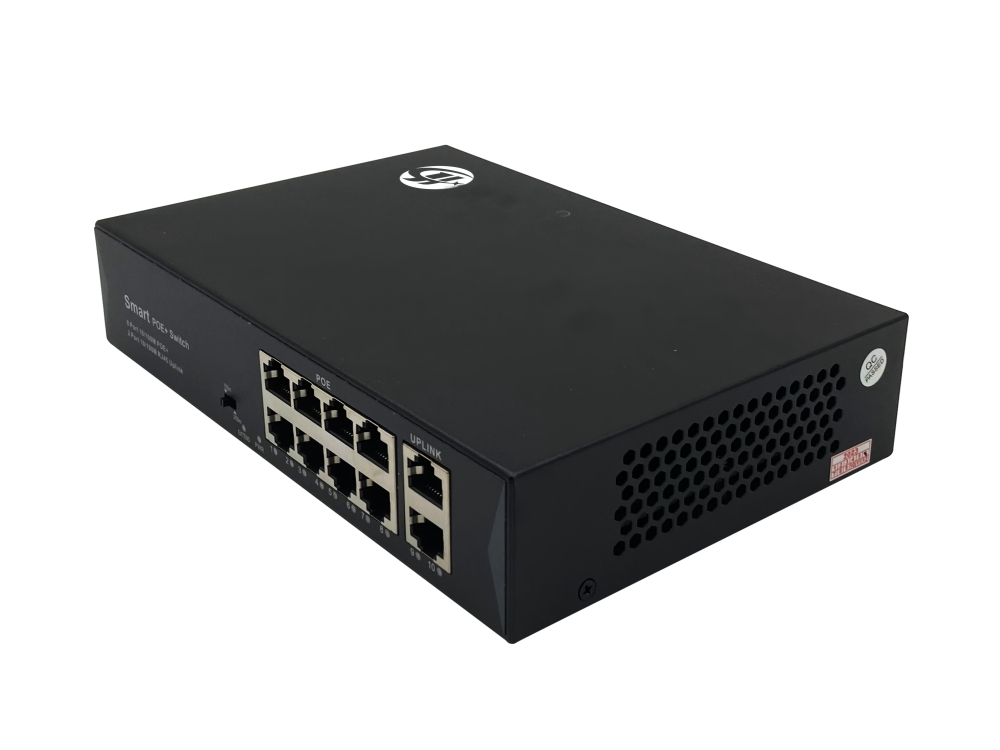

| Fixed port | 8 x 10/100Base-TX POE ports (Data/Power) 2 x 10/100Base-TX uplink RJ45 ports (Data) |
| POE port | Ports 1 to 8 support IEEE 802.3af/at standard POE power supply |
| function switch | 1 unit (Extender + CCTV) Note: When the switch status changes, the switch must be restarted for the switch function to take effect. |
| networking protocol | IEEE802.3 10BASE-T: IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX: IEEES02.3x |
| standard of power supply | Compliant with the IEEE 802.3af/at international standard |
| Network port characteristics | 1-10 ports support 10/100BaseT (X) auto-detection, and full/half-duplex MDI/MDI-X auto-adaptation |
| Forwarding mode | Store-and-forward (full-speed across the line) |
| Backplane bandwidth | 2 Gbps (without congestion) |
| Packet forwarding rate: 64 bytes | 1.488Mpps |
| MAC Address table | 2K |
| Twisted pair transmission | 10BASE-T:Cat3,4,5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) |
| Power supply pin | Default: 1/2 (+), 3/6 (-); Optional: 4/5 (+), 7/8 (-), 4-core power supply |
| Maximum single output power / Average power | 30W/15.4W |
| Total power / Input voltage | 120W (AC100-240V) |
| Overall power consumption of the machine | Standby power consumption: 5W; Full-load power consumption: ≤ 120W |

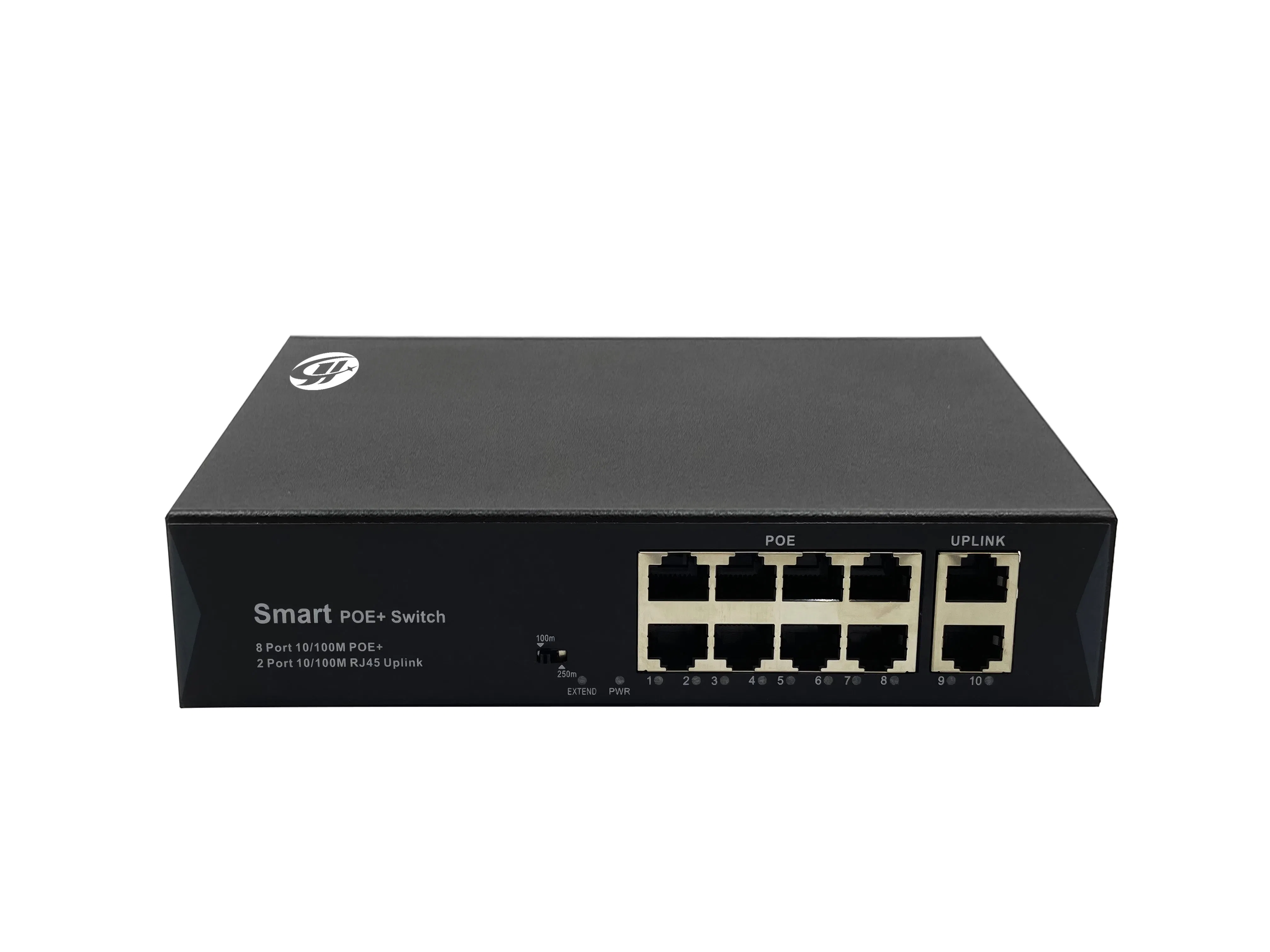

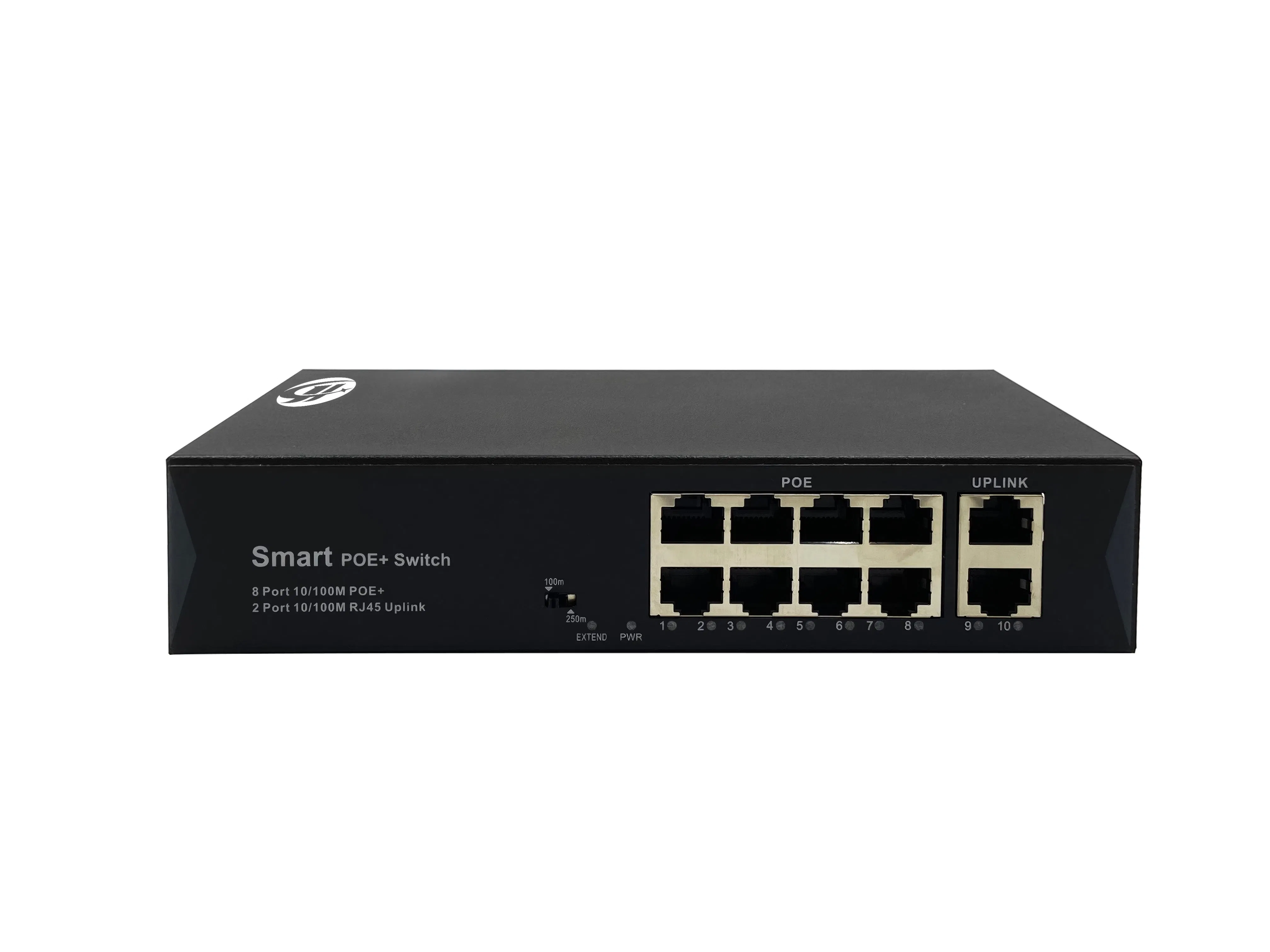

| LED indicator light | Power indicator light: PWR (green); Network indicator light: Link (yellow); POE operation indicator light: PoE (green); Function switch indicator light: EXTEND (green). |
| power supply | Built-in switching power supply: AC 100~240V, 50-60Hz, 2.2A |
| Working temperature/humidity | -20~+55°C; 5% to 90% relative humidity without condensation |
| Storage temperature/humidity | -40~+75°C; 5% to 95% relative humidity without condensation |
| Overall dimensions (L*W*H) | 195*130*40mm |
| Net weight / Gross weight | <0.8kg /<1.2kg |
| way to install | Desktop installation, wall-mounted installation |
| Lightning protection / Protection grade | Port lightning protection: 4KV 8/20us; Protection level: IP30 |
| safety certification | 3C;CE CE/LVD EN60950; FCC RoHS; |
