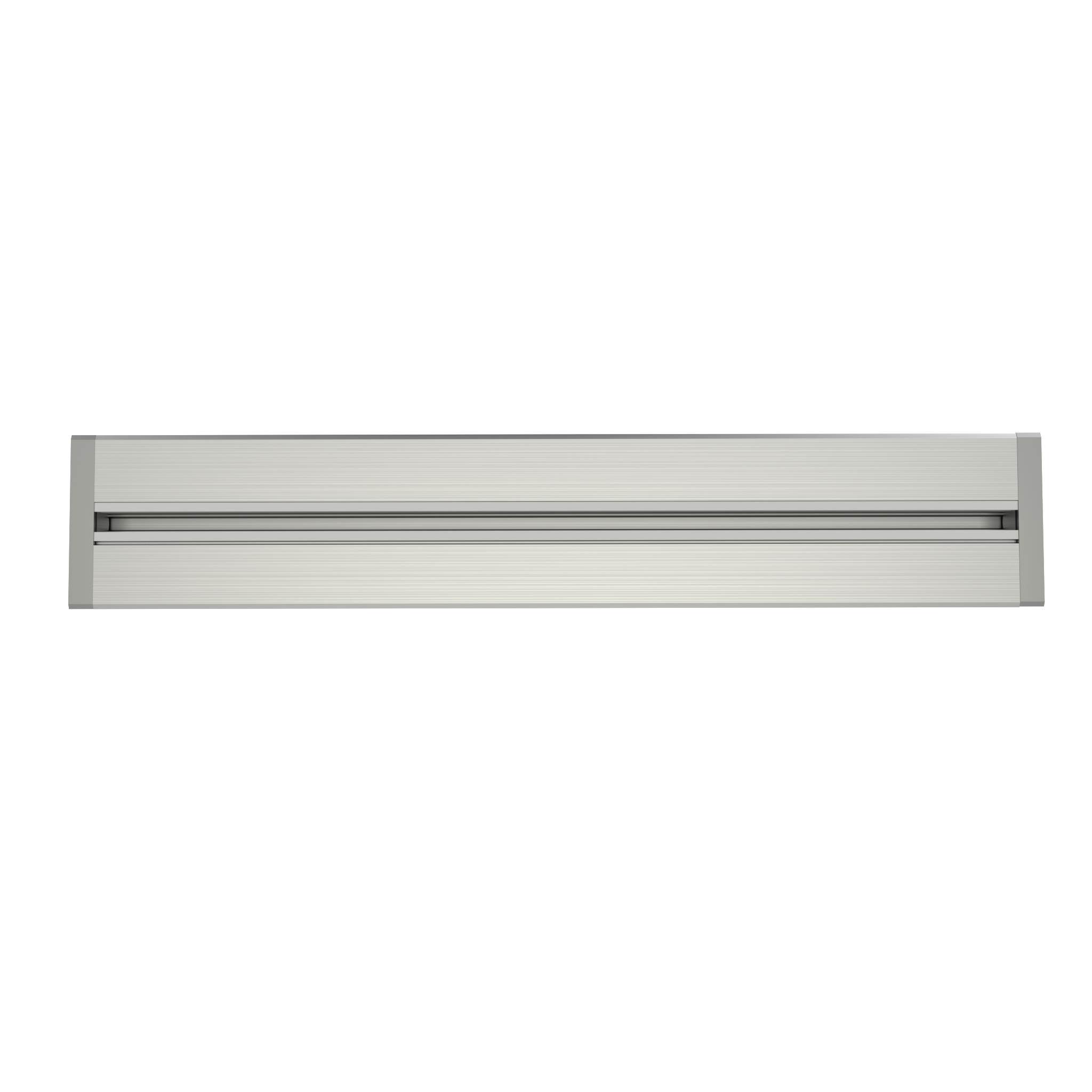

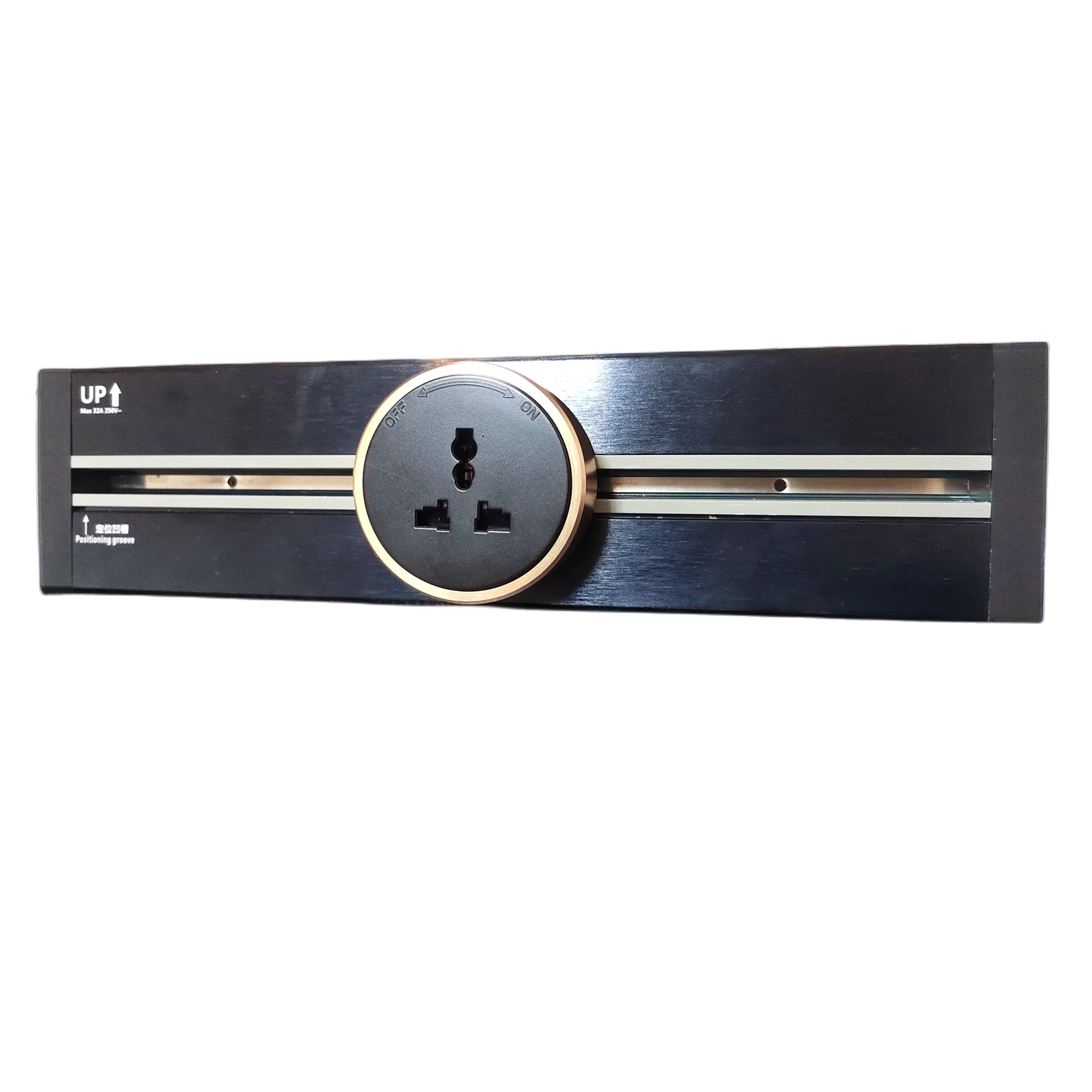

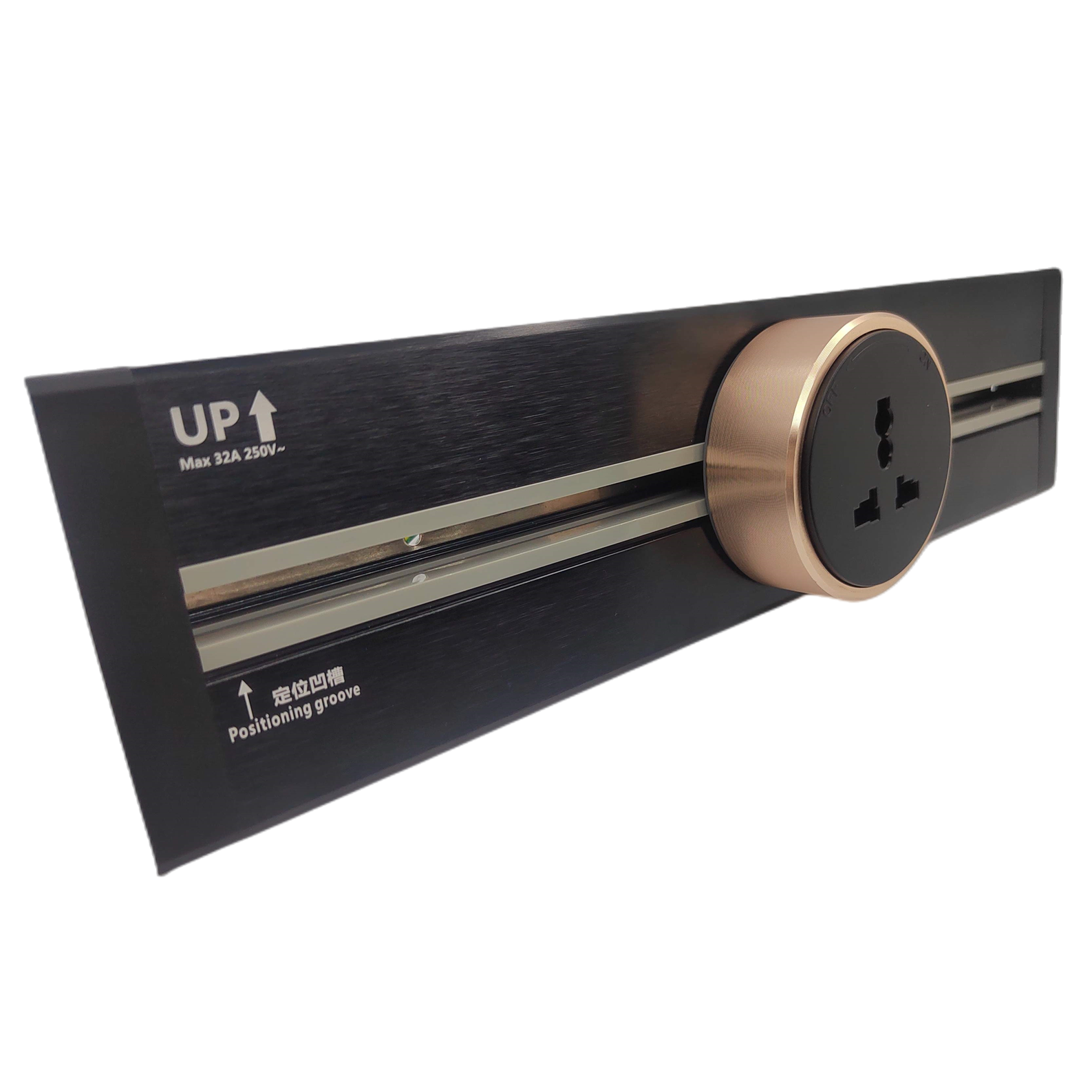

Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
1 / 5
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB
Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB

Aluminum Wall Track Socket Embedded Orbital EU Movable Modular Power Rail Plug System Desktop Electrical Outlet Panel with USB

Send Inquiry

Product Description

Narrow Side Embedded Power Track Banner
Products Description
Product View 1 Product View 2 Product View 3 Product View 4 Product View 5 Product View 6 Product View 7 Product View 8 Product View 9 Product View 10
Technical Specifications
Product Line Model NO. Size (mm) Rated Current/Voltage Load Power Color Material
GDM1D Series
Narrow Side Embedded Power Track 		GDM1D-35 L350×W86×H21.5 90-250V 8000W Brushed Black / Gold / Silver Aluminum Alloy
GDM1D-50 L500×W86×H21.5
GDM1D-60 L600×W86×H21.5
GDM1D-80 L800×W86×H21.5
GDM1D-100 L1000×W86×H21.5
Installation Dimensions
  • Track Size: Width 86mm * Height 21.5mm
  • Required Slot/Hole Size: Width 75mm * Depth 20mm
Product Features
  • High-quality all-aluminum shell body.
  • High performance carrying 8000W load capacity.
  • Dislocation and concealment design of N and L lines, offering forced safe grounding.
  • Maximum single strip length of 2.5 meters (seamlessly dockable for configurations exceeding 2.5m).
  • Flexible installation with left-side incoming power connection line.
  • Length customization available to fit specialized project demands.
Product Layout 1 Product Layout 2
Product View Detailed 1
Product View Detailed 2
Product View Detailed 3
Product View Detailed 4
Product View Detailed 5
Product View Detailed 6
Product View Detailed 7
Product View Detailed 8
Product View Detailed 9
Product View Detailed 10
Frequently Asked Questions
What are the size and slotting specifications for installation?
The track has a physical width of 86mm and a thickness/height of 21.5mm. For the embedded narrow-side installation, you will need to slot a hole measuring 75mm in width and 20mm in depth.
What is the maximum electrical load capacity of this power track?
The GDM1D series power track has a rated load capacity of up to 8000W, allowing you to connect and run multiple high-power electrical appliances safely at the same time.
Can the length of the track be customized for longer installations?
Yes. While the standard pre-configured lengths range from 350mm to 1000mm, the maximum length of a single strip is 2.5 meters. For installations longer than 2.5 meters, multiple track strips can be easily docked together. Lengths can also be customized on demand.
What safety features does the power track utilize?
Safety features include an premium, robust all-aluminum alloy protective shell, forced safe grounding terminals, and a dislocation concealment structure design for the Neutral (N) and Live (L) lines to prevent accidental direct contact.
What color finishes and styles are available?

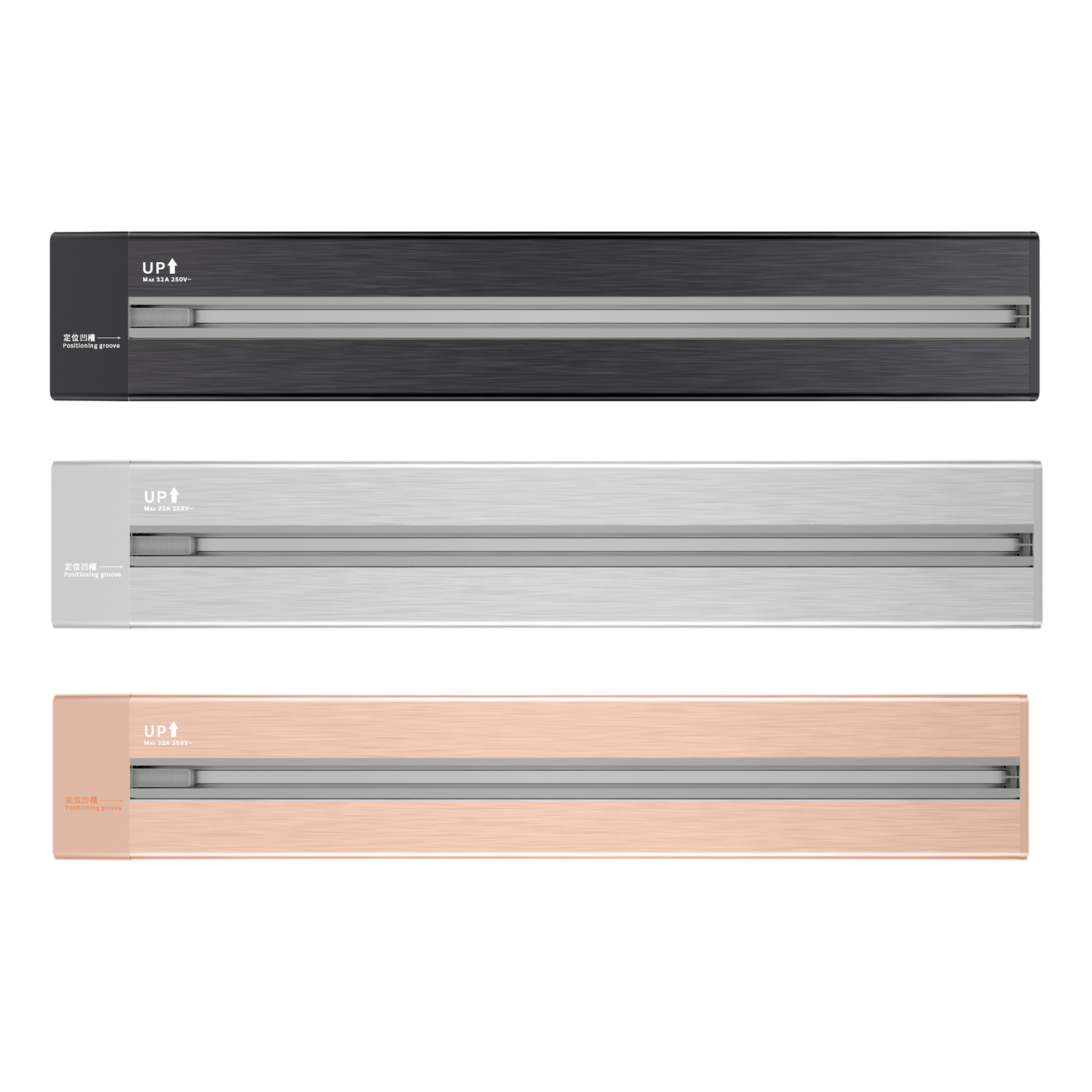

It features high-quality surface treatments and comes in three premium brushed metallic colors: Brushed Black, Brushed Gold, and Brushed Silver to suit your interior styling requirements.

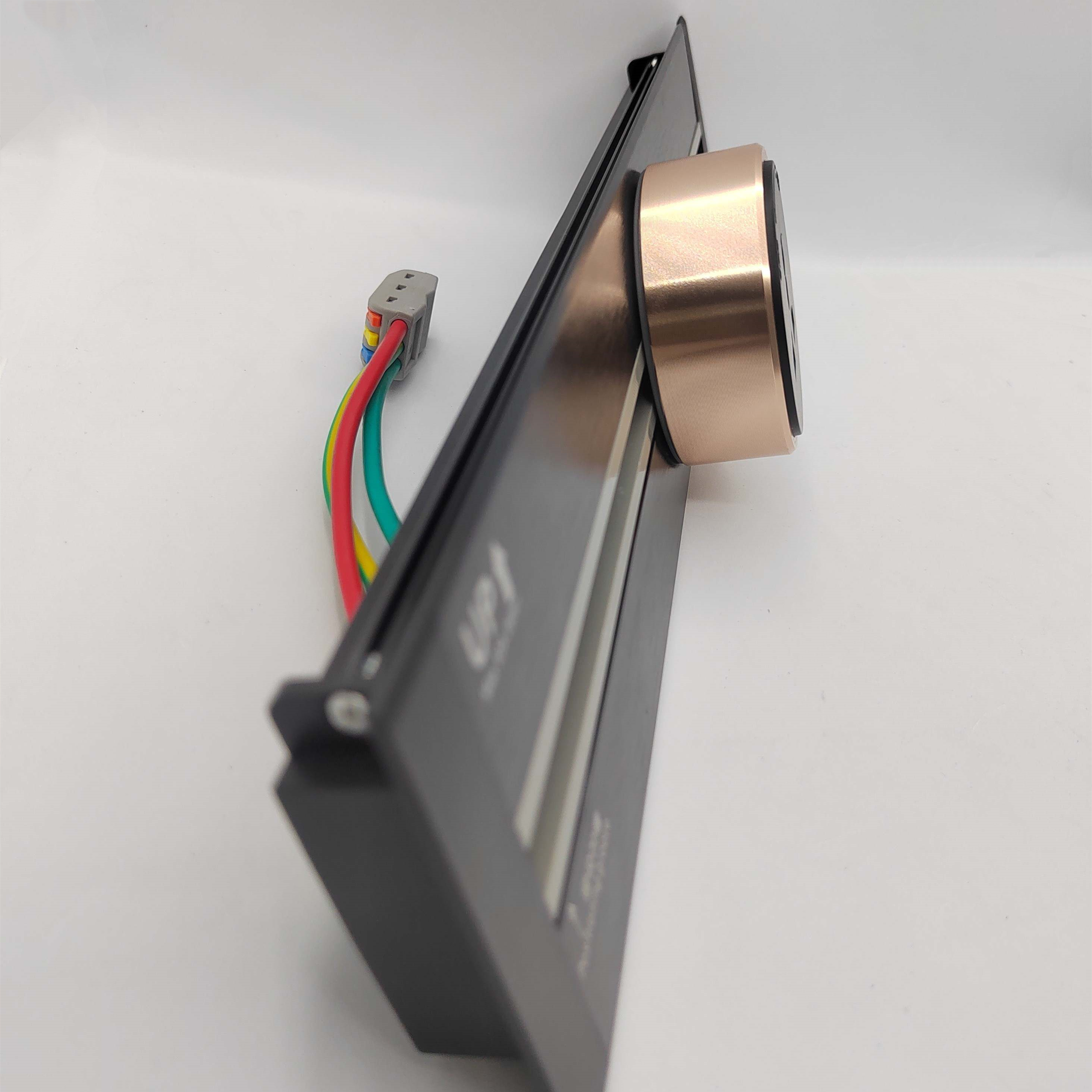

Where is the incoming electrical line located?
The power track is configured with a left incoming line system to connect to your main electrical supply points.
