ℹ️ Basic Information
Model NO.GPT12-L
CertificationISO/TS16949, FCC
Battery Capacity4500mAh
Dimensions (mm)96(L) X 50(W) X 11.2(H)
Net Weight70g
Gnss Band1575MHz
Work CurrentGPRS(140mA); HSPA(460mA)
Switch1 for Power on
GSM Band850/900/1800/1900MHz
Cat M1/Nb1 BandLte FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26
Lte TddB39 (for Cat M1 Only)
AntennaBuilt-in GSM/Lte Cat M1/Nb1 Antenna
ColorGray
Transport PackageStandard Package
HS Code8526911000
Production Capacity1,200,000 PCS/Year
📋 Product Overview

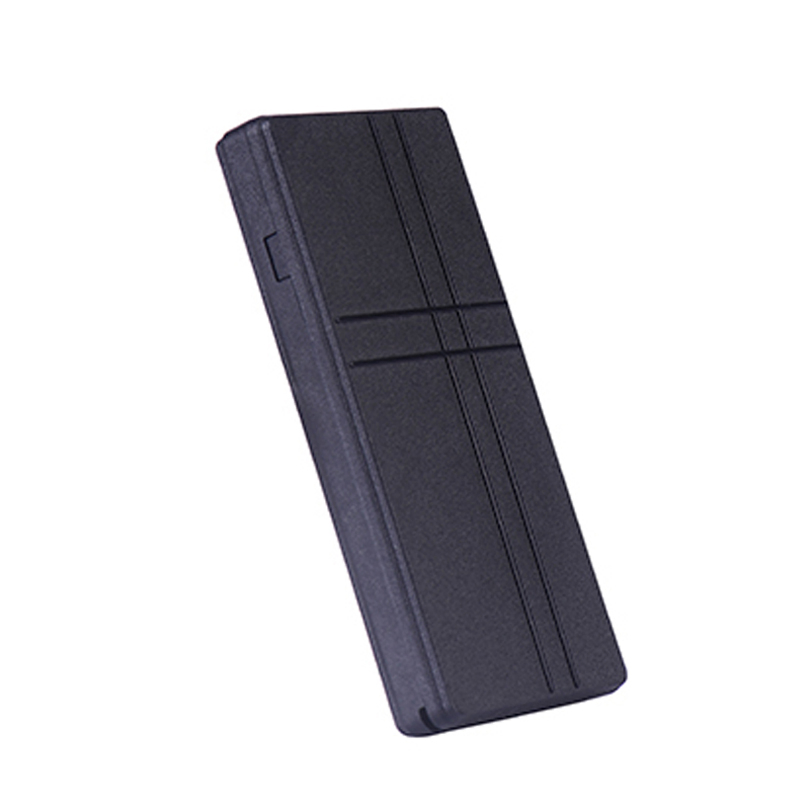

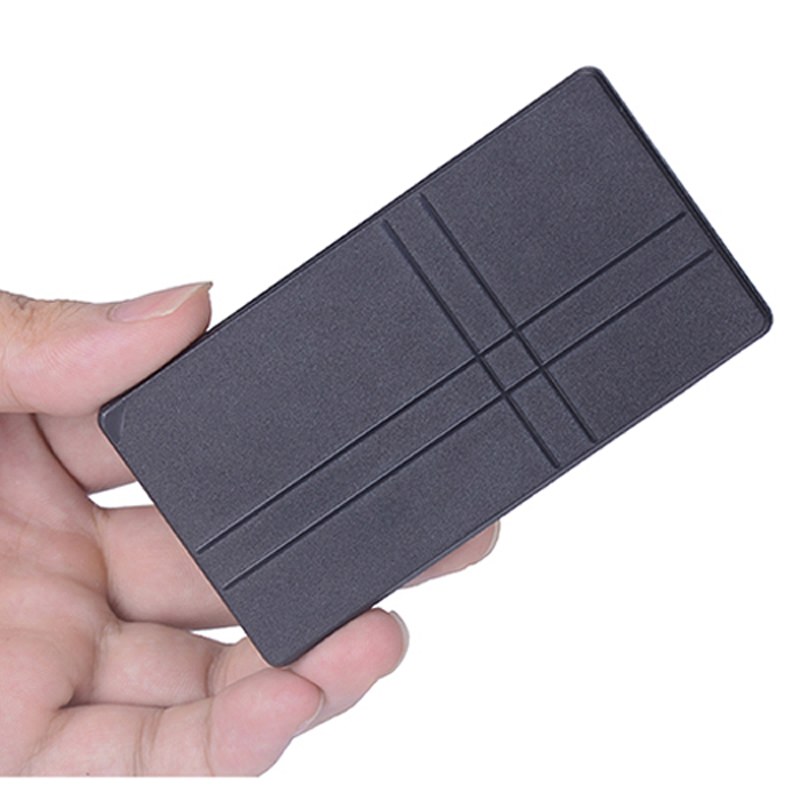

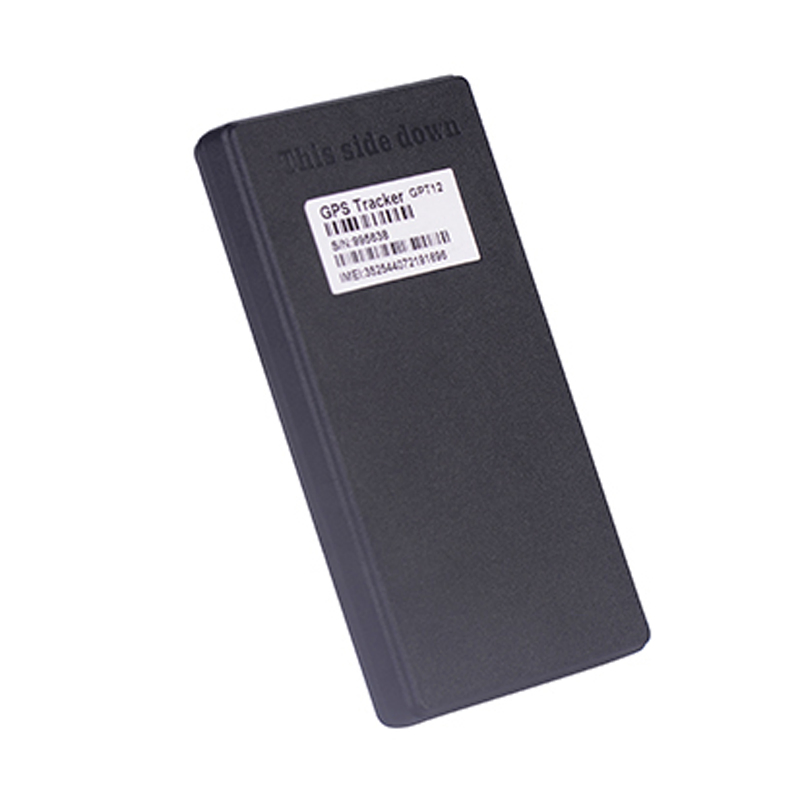

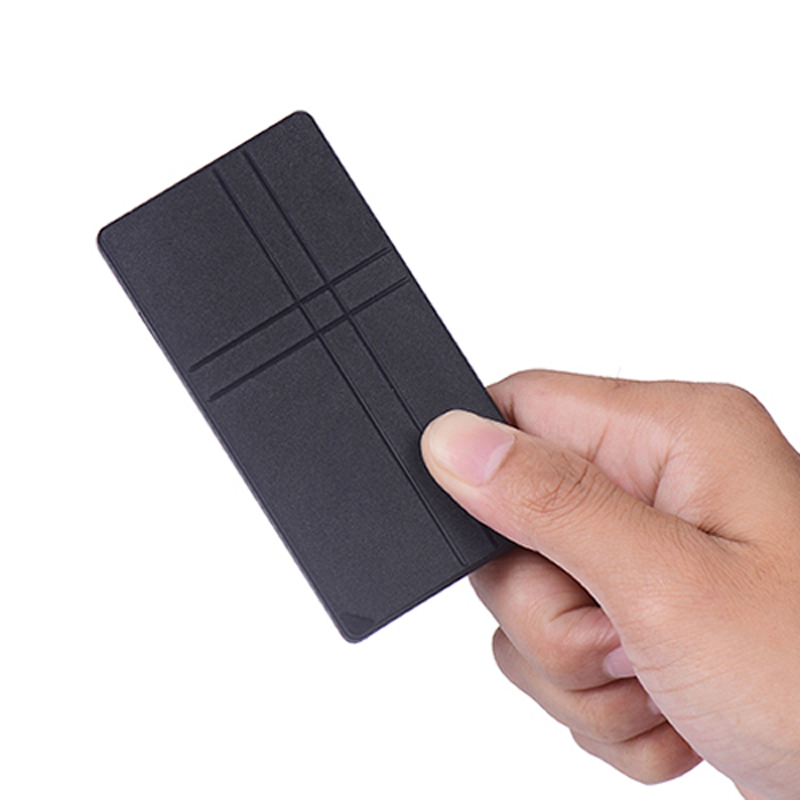

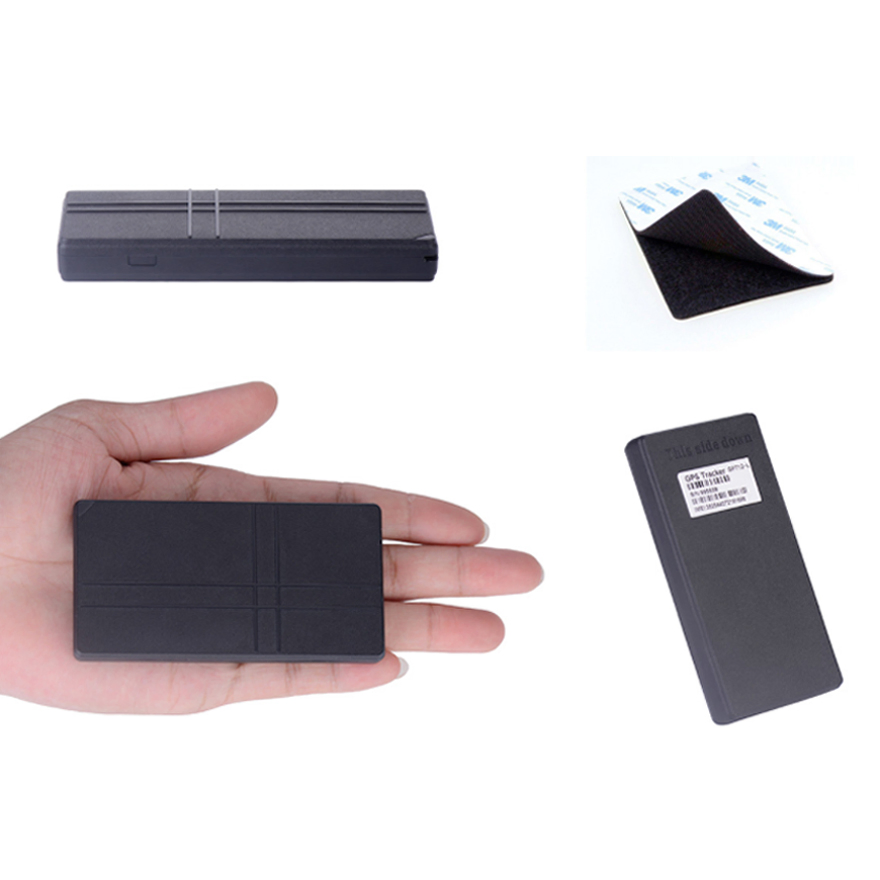

4G LTE NB-iOT Long Standby Asset GPS Tracker GPT12-L
The 4G LTE GPT12-L GPS Tracker is a long standby tracking device designed for vehicles, assets, and containers. It monitors target locations using GPS satellite positioning systems combined with GPRS/LTE CAT M1/LTE NB1 communications. Remote real-time positioning and control can be fully achieved through the supporting service platform.
It plays a significant role in logistics, asset tracking, and container management, helping users achieve transparent management, reduce operation costs, ensure safety, and improve efficiency.
💻 Platform & Software

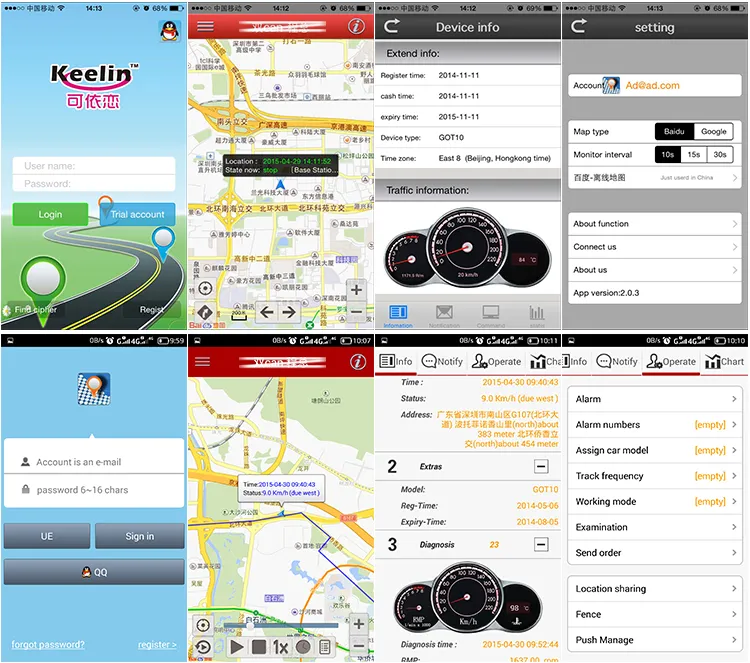

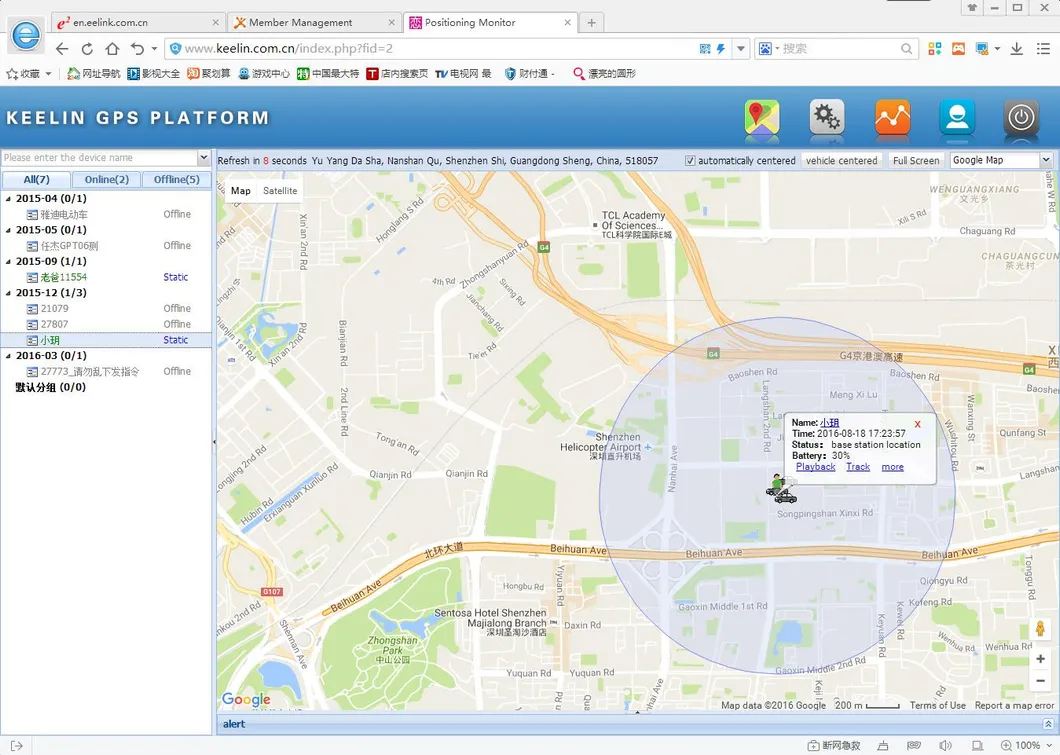

You can choose a compatible terminal monitoring platform or download the mobile app. The system supports positioning, real-time tracking, and historical playback on the platform server or app. Meanwhile, you can integrate the tracker with your own platform that supports multiple protocols.
🔧 GPS Tracker Operating Principle
The device contains an integrated Satellite Receiver module and mobile network module. GPS precise positioning with AGPS is utilized to report position information to the cloud platform via GPRS/LTE networks at designated intervals (e.g., every 30s). The precise position of the device is then plotted on the digital map of your platform. A SIM card with active GPRS/LTE data is required for transmission.
📦 Delivery & Orders
Sample and mini orders will be delivered within 1-2 working days after the receipt of payment. For orders over 500pcs or customized setups, please contact sales directly to verify the current stock level. The manufacturing capacity is 1,200,000 units per year, with a monthly buffer inventory of 3,000 units kept for popular models.
💡 Frequently Asked Questions (FAQ)
What is the battery life of the GPT12-L GPS tracker?
The GPT12-L tracker is powered by a built-in 4500mAh zero self-discharge lithium disposable battery. It can standby for up to 2 to 3 years when configured to power on once per day.
Which global positioning systems does this tracker support?
It supports precise positioning from multiple constellations including GPS, Glonass, BeiDou/Compass, Galileo, QZSS, as well as LBS (Location Based Services) aided by A-GPS.
What network bands are compatible with the GPT12-L?
The tracker supports standard GSM bands (850/900/1800/1900MHz), LTE FDD bands (B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28), and LTE TDD band (B39 for Cat M1 only).
What are the different working modes of the device?
The device has two primary modes: Standby Mode (works for 3 minutes per day and sleeps during other times to save power) and Emergency Mode (real-time tracking for 48 hours continuously before entering sleep).
How can users track the location of the assets?
Users can track the device's location in real-time or view historical playback using a compatible web-based terminal monitoring platform, a mobile phone application, or through SMS.
What are the main application areas for this tracker?
It is suitable for fleet management, insurance telematics, container tracking, asset location, and various M2M applications such as cold chain logistics, food supply tracking, and enterprise equipment management.
