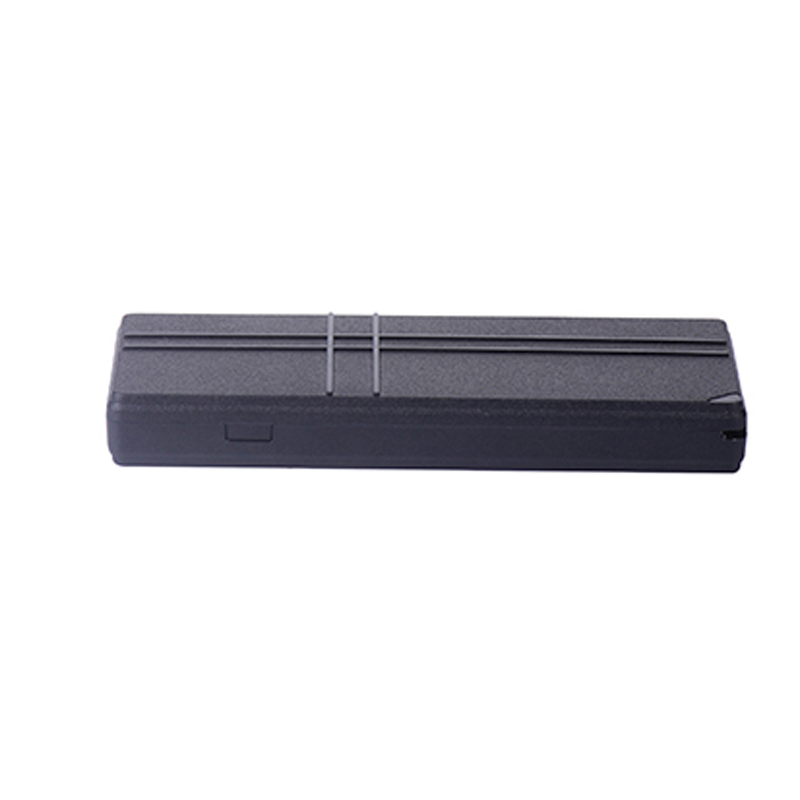

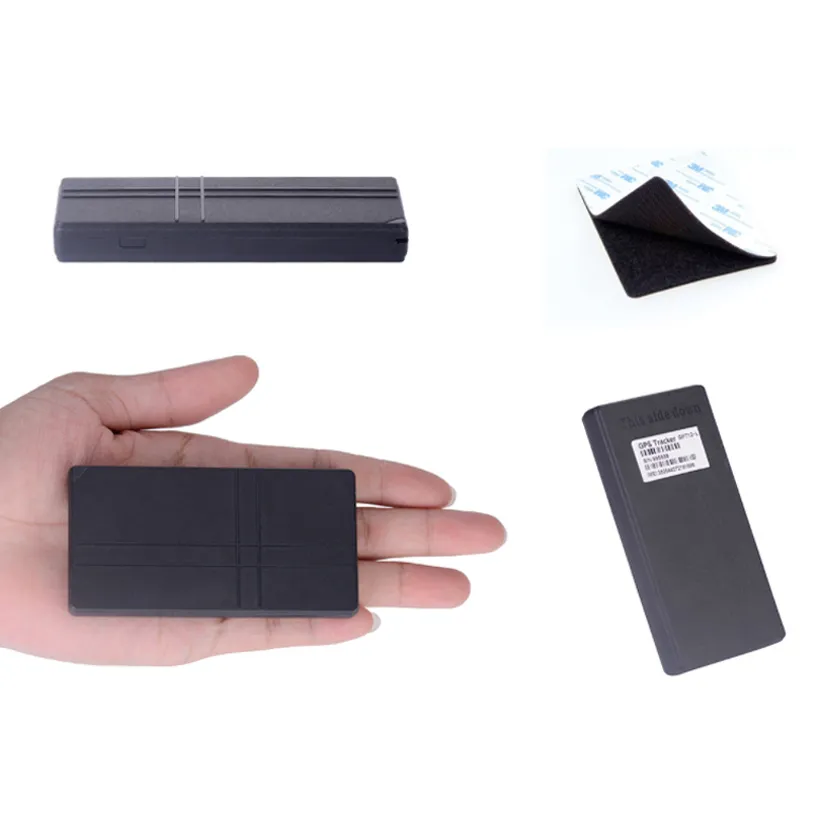

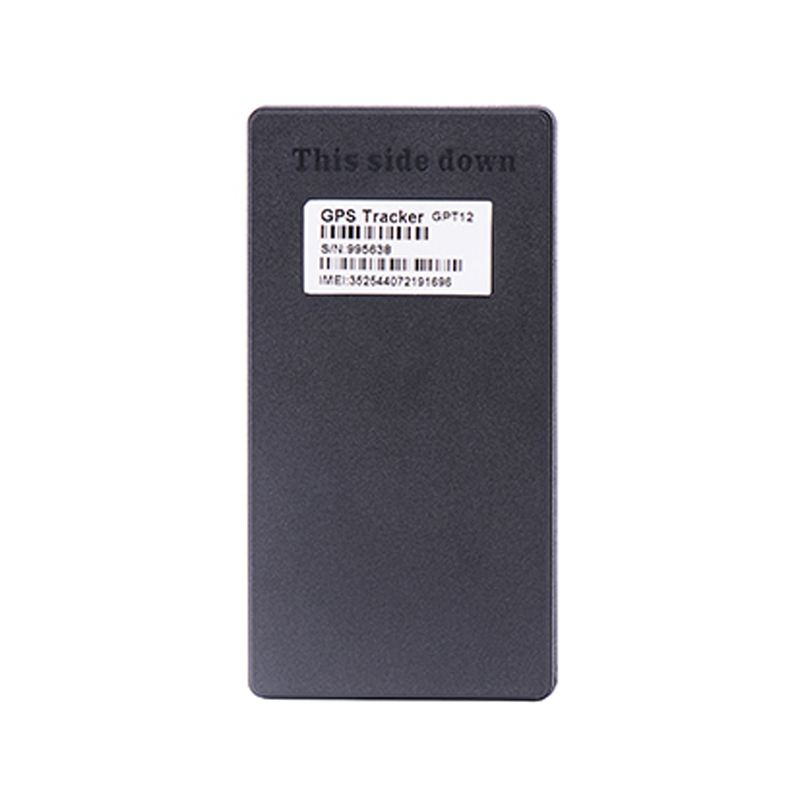

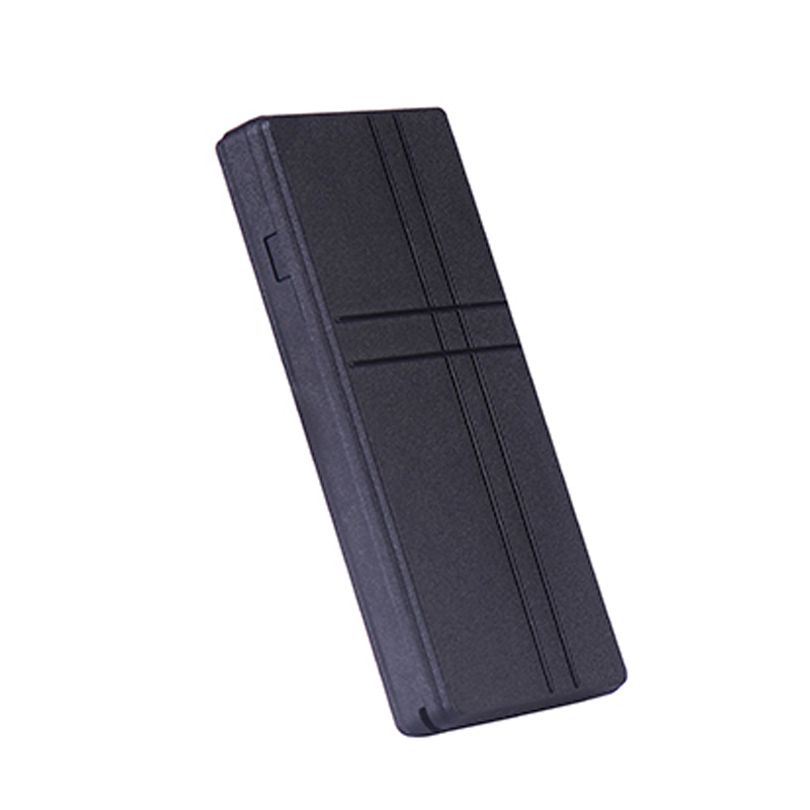

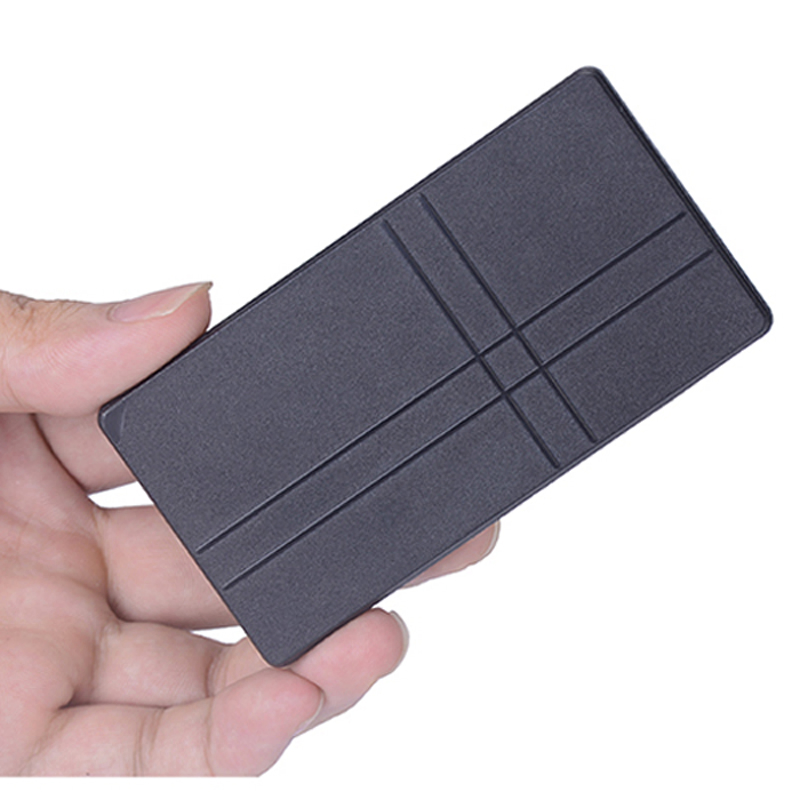

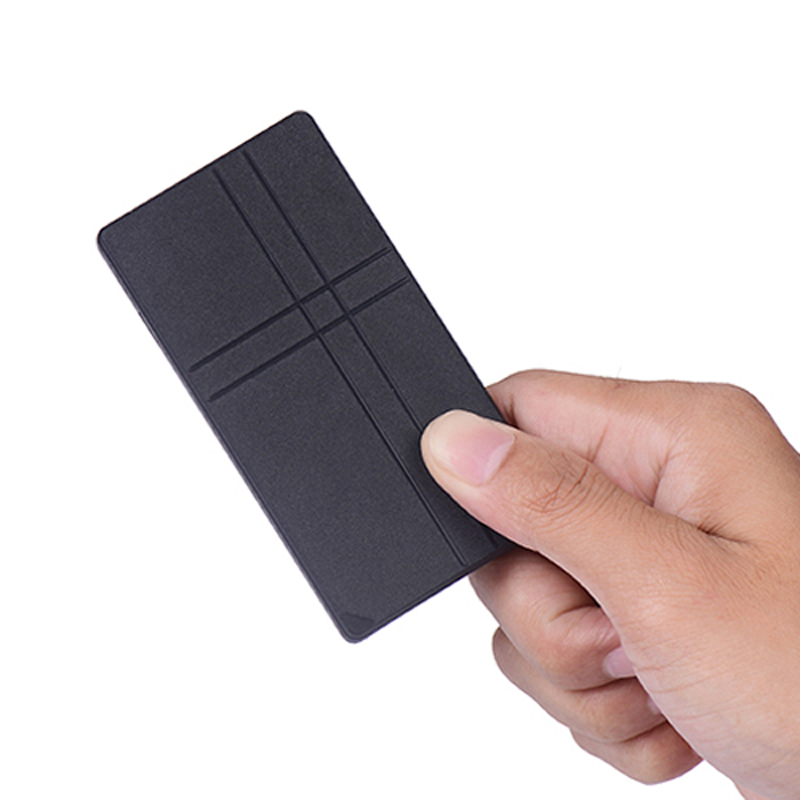

The 4G LTE GPT12-L GPS Tracker is a long standby tracker for vehicles, assets, and containers. It monitors your vehicles through a GPS satellite positioning system, GPRS/LTE CAT M1/LTE NB1 communication, and the Internet, achieving real-time remote location and control through a powerful service platform.
It plays a significant role in logistics, asset tracking, and container tracking, helping to achieve transparent management, reduce costs, ensure safety, and improve efficiency.
| GPS module | Quectel BG96+61D |
| GPS Positioning Accuracy | 5m-15m (Depending on GPS Signal) |
| LBS Positioning Accuracy | about 200m (Depending on density of base stations) |
| GPS Frequency | L1, 1575.42MHz C/A code |
| Network | LTE/FDD, EGPRS, SMS |
| EGPRS Band | 850/900/1800/1900MHz |
| CAR M1/CAT NB1 Band | LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39 (for Cat M1 only) |
| GPRS | Class 12, TCP/IP |
| LED Indicator | GPS-Blue; GSM-Red |
| Hot/Warm/Cold Start | <3s, <15s, <60s |
| Work Current | LTE CAT M1 (124-265mA) LTE NB1 (65mA-78 mA) |
| Standby Current | <10 uA |
| Dimensions (mm) | 96mm x 50mm x 11.2mm |
| Operating Voltage | 3.6V DC |
| Environment Temperature | -20 celsius - 65 celsius |
| Environment Humidity | 20% ~ 80% RH |
| Battery capacity | 4500mAh |
| Net Weight | 65g |

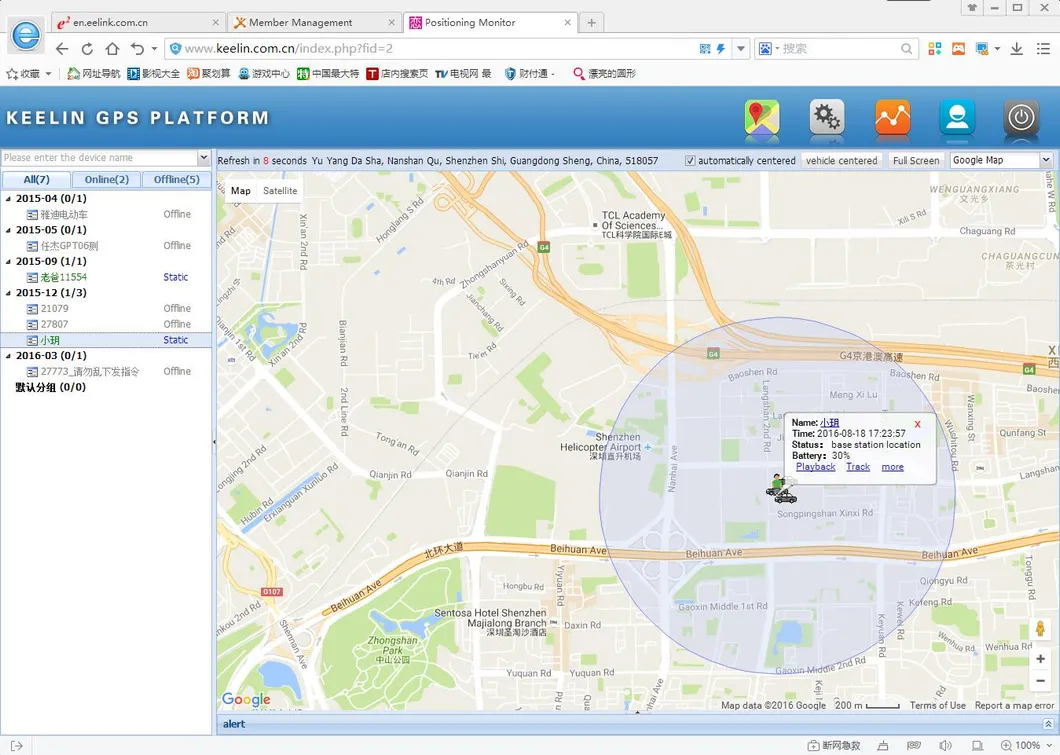

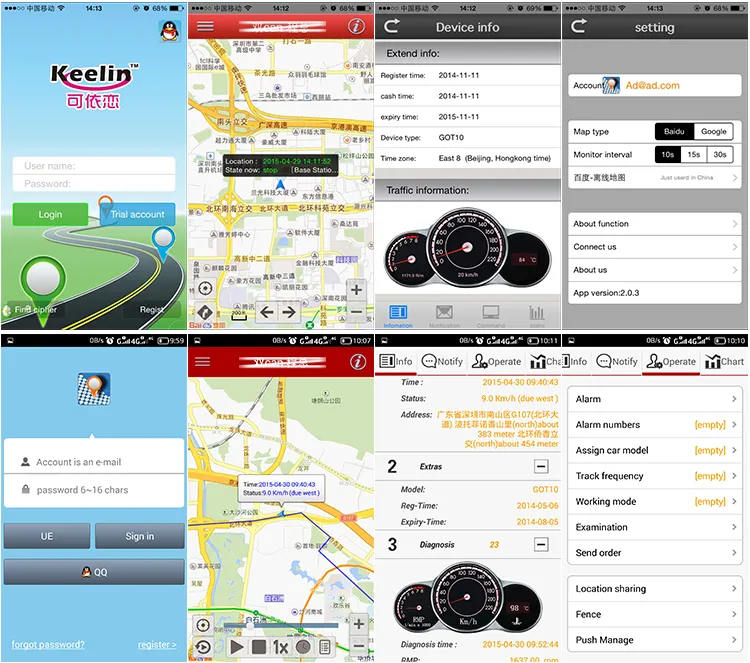

You can choose the terminal monitoring platform or download the APP by phone. You can position, track in real time, and view playback on the platform server or app. Meanwhile, you can use your own platform which supports multiple protocols. Simply choose your preferred language and try the demo for a test run.
The device contains an installed Satellite Receiver module and mobile phone module. GPS provides precise positioning with AGPS support, sending feedback to the platform via GPRS at configured intervals (e.g., every 30 seconds). It shows the exact location of the device on the map of the platform. Data transmission requires GPRS, so the SIM card installed in the device must support GPRS functionality.
Sample and mini orders will be delivered within 1-2 working days after payment receipt. For orders over 500 units or customized designs, please check current inventory. The manufacturing capacity is 1,200,000 units per year, with 3,000 units held in stock in advance monthly for popular items.
The GPT12-L features a built-in 4500mAh zero self-discharge lithium disposable battery. Under the standard standby working mode (powering on once per day for 3 minutes), the battery can last between 2 to 3 years.
The tracker supports GSM/EGPRS (850/900/1800/1900MHz), LTE CAT M1, and LTE NB1. The supported LTE FDD bands are B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, and B28, alongside LTE TDD B39 (Cat M1 only).
The device offers high accuracy. GPS positioning accuracy ranges between 5 to 15 meters depending on the GPS satellite signal, while LBS positioning accuracy is approximately 100 to 200 meters depending on local cellular base station density.
Yes, you can configure the tracker to work with your own platform. The device supports multiple transmission protocols, allowing you flexibility in integration alongside the default mobile app and server platform.
The GPT12-L is optimized for fleet management, insurance telematics, container tracking, asset location services, and various M2M applications including cold chain logistics, food supply monitoring, and enterprise equipment management.
In Standby Mode, the device wakes up for 3 minutes per day to report its status and stays asleep for the rest of the day to maximize battery life. In Emergency Mode, it tracks and reports location in real time for 48 hours consecutively before entering sleep mode.
